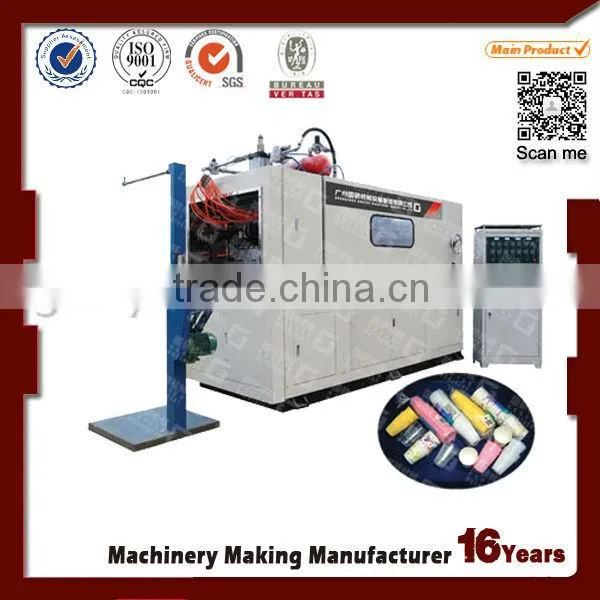

Help CenterAutomatic Twisted Plastic Cup Making Machine
Related Products
-
For Manufacturing Paper Cups Disposable Paper Cup Making MachineUS$ 68,000 - 82,000MOQ: 1 Set -
Plastic Cup Making MachineUS$ 148,000 - 250,000MOQ: 1 Set
-
Auto Paper Cup Forming MachineUS$ 68,000 - 82,000MOQ: 1 Set
-
Paper Cup Forming MachineUS$ 68,000 - 82,000MOQ: 1 Set
-
GuoYan GY-SLB Plastic Cup Making MachineUS$ 148,000 - 250,000MOQ: 1 Set
Specifications
The disposable drinking water cups enter the units and families extensively.High efficiency, energy-saving, safe, environmental,Automatic twisted plastic cup making machine
Usage:
It is mainly used to produce, disposal cold drinking cups, yoghurt cups, jelly cups, ice cream cups.
Characteristics:
1. High efficiency, energy-saving, safe, environmental, and high-rate certified machine.
2. Sending slice, heating, drawing shaping, and cutting edge lump-sum can be completed in a whole process.
3. Machine, electricity, gas are integrative. It has manual, half-automatic and full-automatic functions.
4. It can process and produce PS, PP, PVC, PET, ABS and other plastics and a slice of material products.
Technical parameters:
Max. shaping area(mm2) |
600×300 |
Range of thickness of a slice of material(mm) |
0.2-2.2 |
Max. shaping depth(mm) |
160 |
Max. diameter of the slice(mm) |
750 |
Max. width of a slice of material(mm) |
700 |
Atmospheric pressure(mpa) |
0.7 |
Min. width of a slice of material (mm) |
300 |
Air consumption (m3/min) |
2 |
Amount of water consumed(m3/h) |
0.5 |
Four grades and three-phase power |
380V±15V |
Rated heating power(kw) |
38 |
Main equipment appearance measurement L×W×H(cm) |
315×150×250 |
Rated power of the main machine(kw) |
5.5 |
Total weight (T) |
3.8 |
Max. speed of the equipment(p/min) |
12-30 |
Out size of the slice machineL×W×H(mm) |
700×700×162 |
