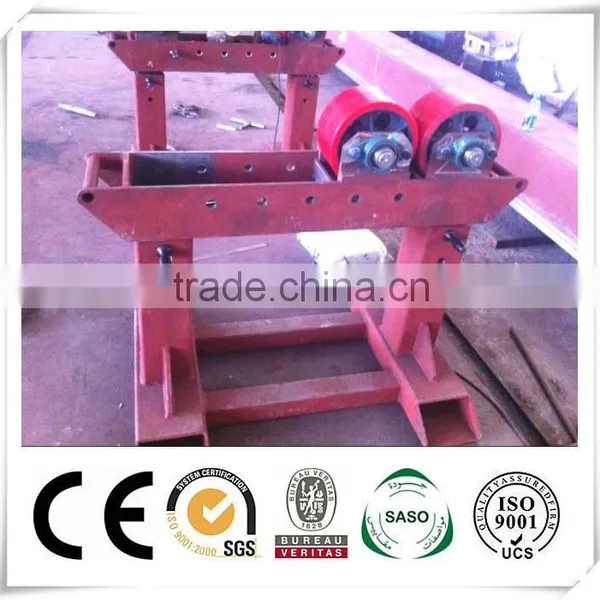

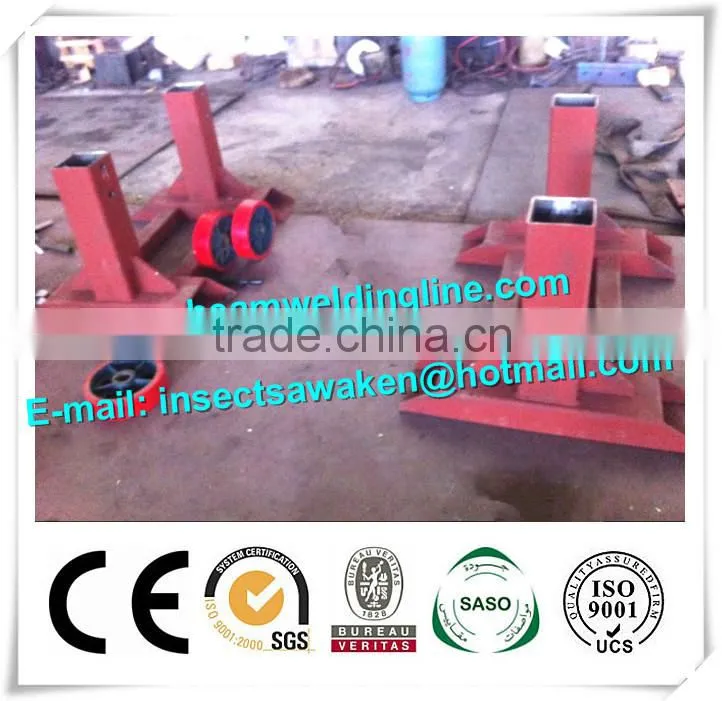

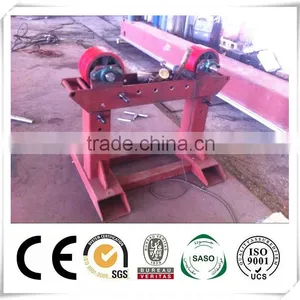

Help CenterSmall Pipe Welding Rotator / Lifting Weld Rotator For Tube
Related Products
-
Tube Lifting Rotator / Screw Adjustable Conventional Welding RotatorUS$ 2,800 - 3,500MOQ: 1 -
Automatic Pipe Welding Manipulator For Tank Inside / Outside WeldingNegotiableMOQ: 1 Set
-
Automatic Industrial Pipe Welding Rotator Adjust By Bolt Or ScrewNegotiableMOQ: 1 Set
-
Self Aligning Rotator / Pipe Weld Rotator With PU Roller For Boiler IndustryNegotiableMOQ: 1 Set
-
Automatic Self Aligning Rotator For Pressure Vessel WeldingNegotiableMOQ: 1 Set
1. Competitive advantage
a. American style and production standard
b. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
c. 20 % overweight design , could making the rotator focus more.
d. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
d. All the parts using well-known brands in China or other countries . Quality is more reliable .

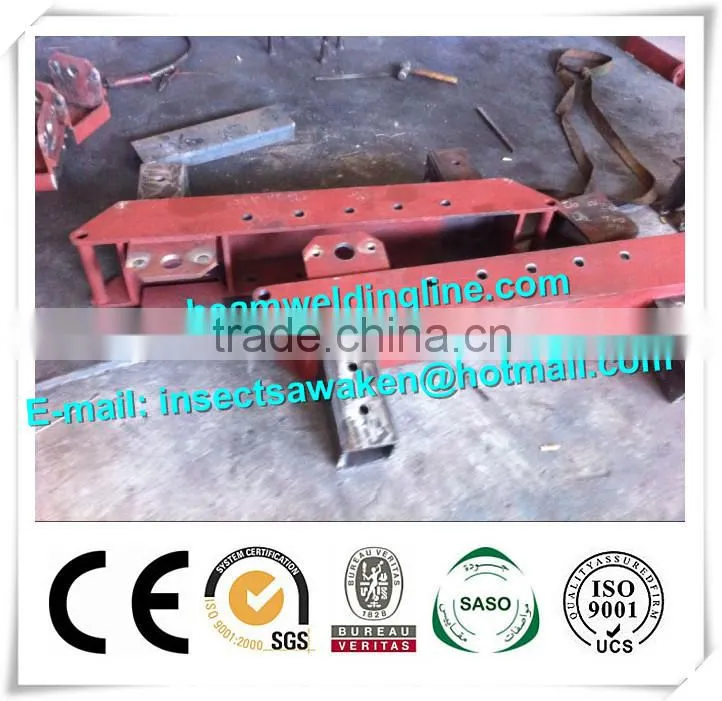

e. The base of rotator welded by plates, with high strength, no deformation after long time using.
2. Technical parameter
a. Loading capacity: driver rotator is 8,000 lbs (4 tons), idler rotator is 8,000 lbs (4 tons)
b. Pipe diameter range: 2"-48"
c. Tractive effort/ torque: single drive is 2,400 lbs, tractive effort is 12,000 in-lbs output torque
d. Height range: adjustable in 4" increments
e. Equipment mass: driver rotator is 375 lbs, idler rotator is 225 lbs
f. Power requirements: 110 V, 1Ph, 15A input
g. Operation speed range: 5-52 in/min
j. Controls: variable speed, forward/ reverse DC drive, optional foot or hand switches

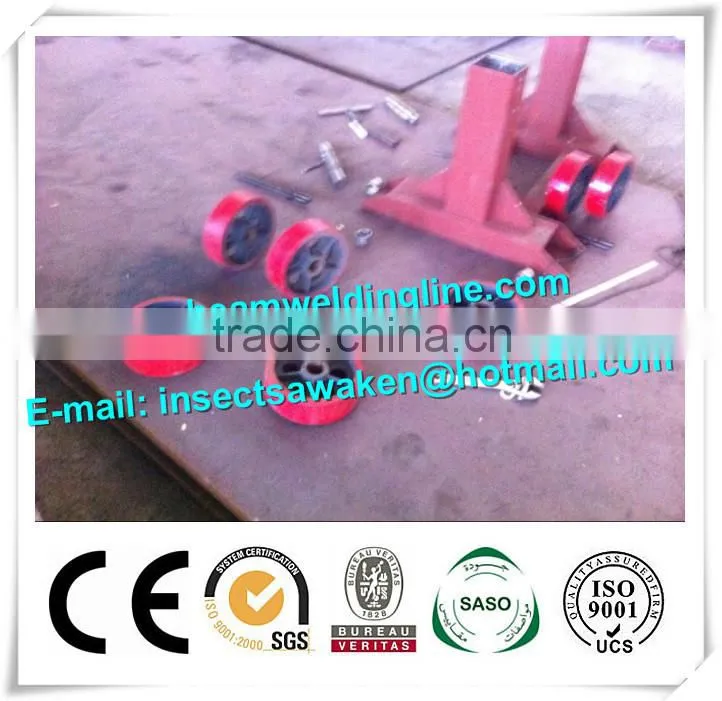

i. Wheels: urethane wheels to protect and grip work-piece
j. Complete set: driver, idler, and foot switch
k. Applications: ideal for supporting and turning heavy wall pipe up to 48" diameter
