W Beam Guard Rail Roll Forming Machine for Highway Guardrail
US$ 20,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
W Beam High Protective Guard Rail Roll Forming Machine for Highway GuardrailUS$ 70,000 - 80,000MOQ: 1 Set -
Strut Channel Roll Forming MachineUS$ 25,000 - 26,000MOQ: 1 Set
-
Metal Strut Channel Roll Forming MachineUS$ 20,000 - 22,000MOQ: 1 Set
-
Angle Steel Profile Roll Forming MachineUS$ 16,000 - 20,000MOQ: 1 Set
-
Ceiling Joists Profile Steel Roll Forming MachineUS$ 18,000 - 20,000MOQ: 1 Set
Condition
New
Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
Roof
Production Capacity
90%-99%
Place of Origin
Jiangsu, China
Brand Name
FSM
Model Number
0026
Power(W)
7.5Kw
Voltage
380v
Dimension(L*W*H)
8000x1600x1200
Weight
6-8Ton
Certification
CE
Warranty
12montus
After-sales Service Provided
Engineers available to service machinery overseas

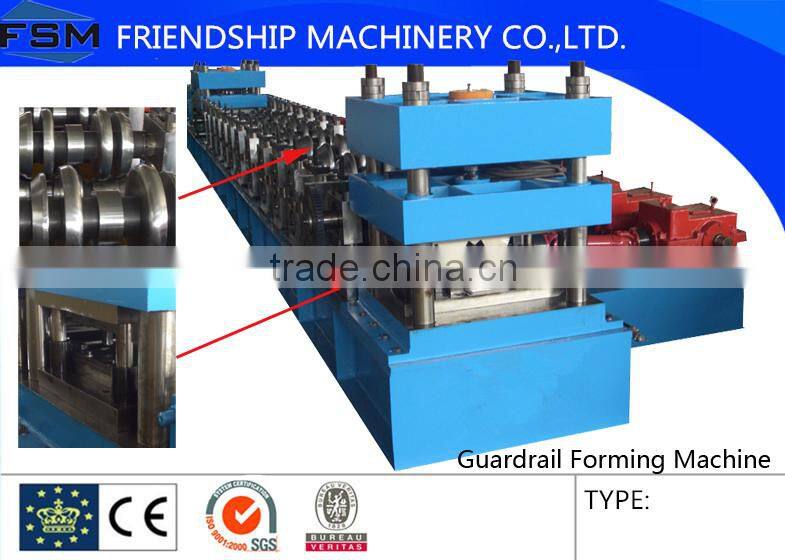

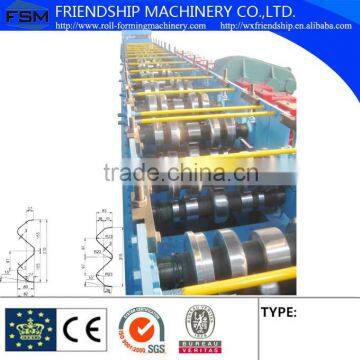

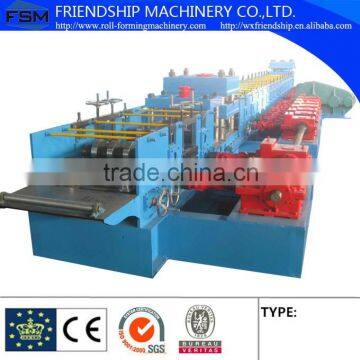

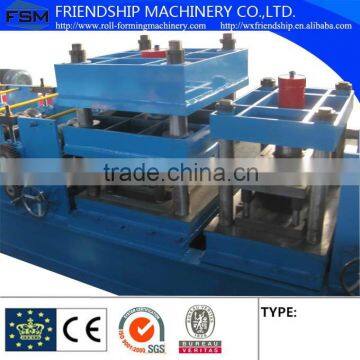

Crash Barrier Roll Forming Machine
For Highway Guardrail
This crash barrier roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.
I: Composition of Machine
- Hydraulic Decoiler ------------------------------------------ 1 Unit
- Leveling and Feeding Guide -------------------------------- 1 Unit
- Punching Device ------------------------------------------- 1 Unit
- Roll Forming Machine -------------------------------------- 1 Unit
- Hydraulic Cutting ------------------------------------------ 1 Unit
- Hydraulic Station ------------------------------------------ 1 Unit
- PLC Contol System ---------------------------------------- 1 Unit
- Runout Table ---------------------------------------------- 1 Unit
- Spare Coupling -------------------------------------------- 1 Unit
II:Technical Data Of Corrugation Machine
- Material Thickness: 2-4mm
- Forming Station: 15 excluding the feeding rollers and leveling rollers
- 7 Rollers leveling
- Principal Axis Diameter: 100mm
- Working Speed: 10-12m/min
- Main Power: 30KW
- Leveling Power: 2.2KW
- Hydraulic Power: 15KW
- Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
- Gross Weight of Machine: about 18 Ton
- Voltage: 380V, 3 Phase 50Hz
III: Working Flow
Decoiler ---> Feeding ---> Main Corrugate Sheet Roll Forming ---> Cutting to Length ---> Runout Table

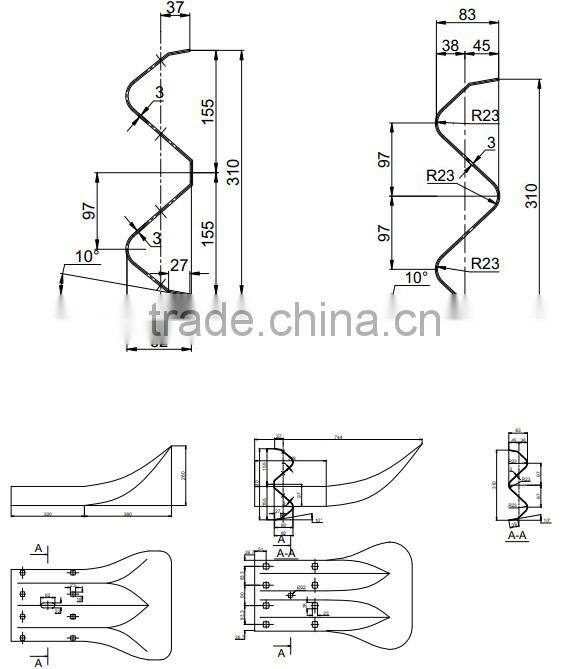

The profile:(Basis on customer’s require to design)
