Steel Deck Floor Roll Forming Machine
Ⅰ:Composition of machine
| Roll forming main machine | 1 unit |
| Manual de-coiler | 1 unit |
| Control panel | 1 unit |
| Hydraulic station | 1 unit |
| Manual out table | 2 unit |
| Cutting device | 1unit |
hydraulic pressing system |
1unit |
II: Details of each composition
| Material Spec | Galvanized steel sheet |
| Thickness of Coil Sheet | 1.2 --2.0 mm |
| Main Motor Power | 18.5kw |
| Forming Speed | 10--12m/min |
| Hydraulic Station Power | 3kw |
| Quantity of Stands | About 24 groups |
| Hydraulic Pressure | 10~12Mpa |
| Controlling System | PLC |
| Index Error of Length | 10m±2mm |
| Total Weight | About 1800kg |
| Voltage | 380V 3 phase 60Hz or at buyers requirement |
III: Technological process
Decoiling—feeding and guide —roll forming----press---cut to length—product
packing manual

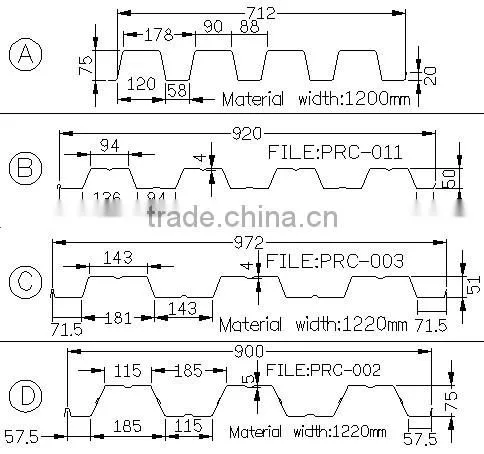

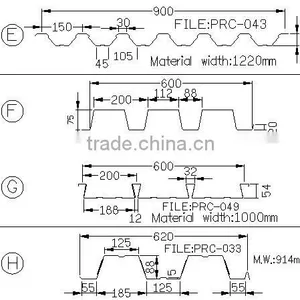

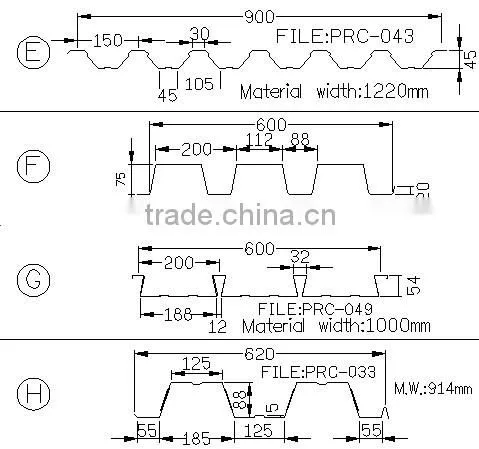

The profile:(Basis on customer’s require to design)

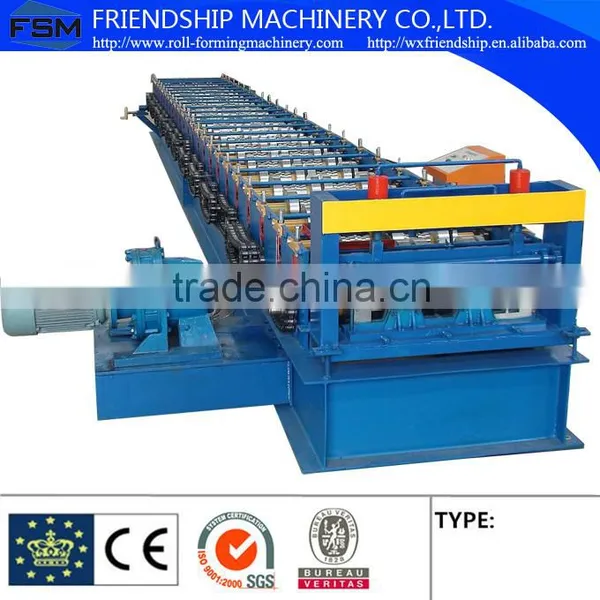

IV.Photo Wall
|
|
|
|
|
|
Terms of payment :30% pay before produce machine, 70% pay before shipment
Deliver time: 70days after received 30% down payment
After sell guarantee
1)Engineer will give free training lessons to labors in buyer’s factory.
V:Practical use
VI:Packaging & Shipping
All equipment should be sea worthy packing and treated by anti-rust, the cargo shall be properly packed in seaworthy packing to the specific items. The package shall be strong enough to withstand long distance oceanic transportation and multiple handling
VII:Our Services
1, warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But buyer should pay for the airticket, living there charge of our engineer.
2, commissioning services: the product`s installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3, training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4, maintenance services: any malfunction happenedonce you enquiry us, we will reply you within 48 hours except the special reasons.
5, lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
6, certificate services: we can provide related certificates to customers freely according to the request of customers.
7,inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment.
8, the file: the Manual Specification, report of the material which used to the equipment.
