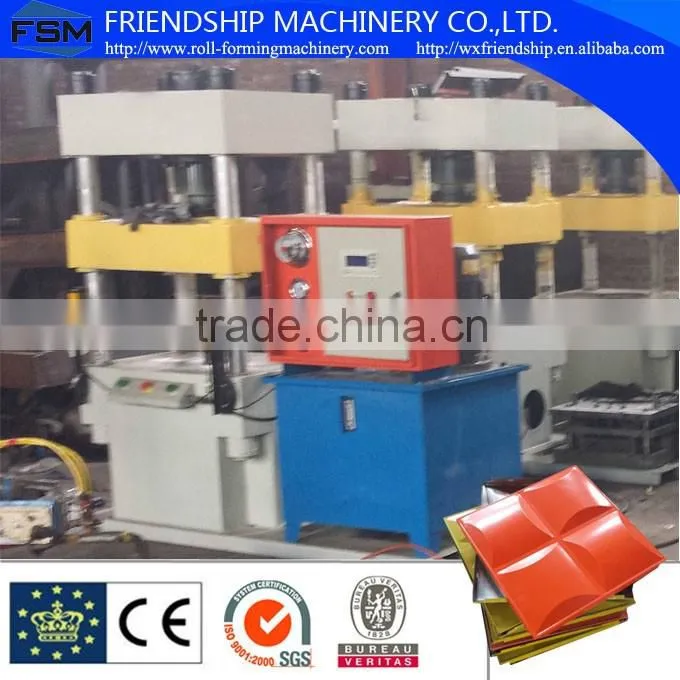

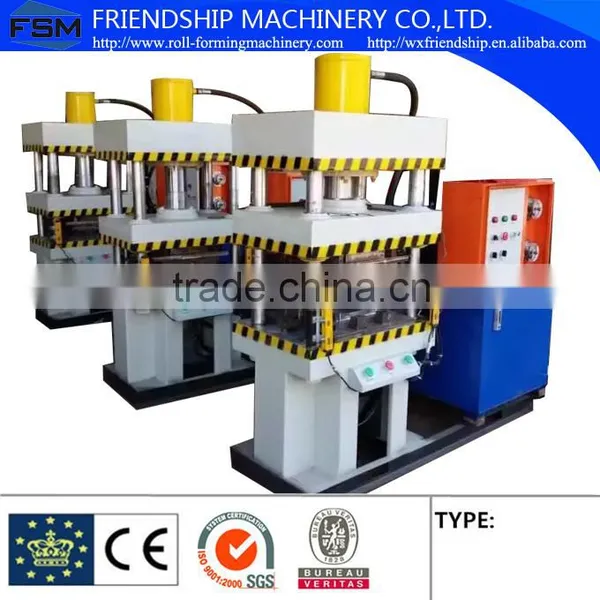

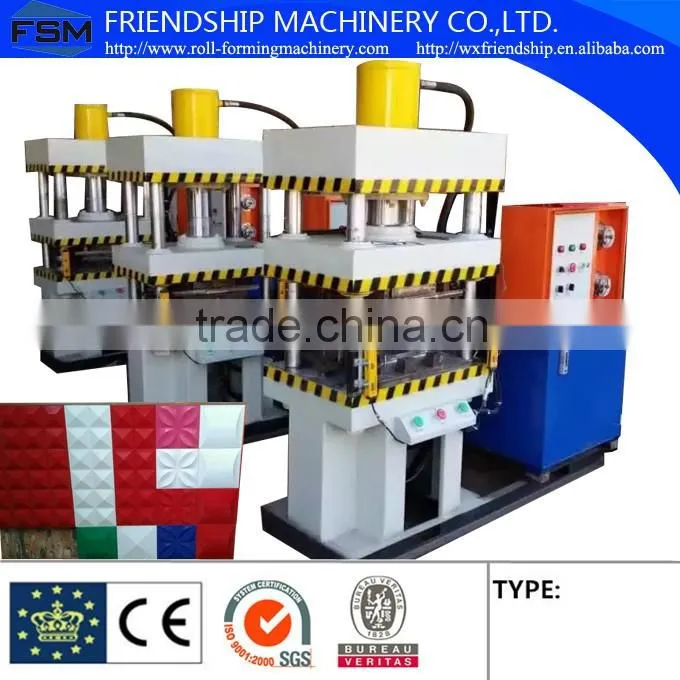

Help CenterHydraulic 3D Press Wall Decoration Beautiful Three-Timensional
Related Products
-
Hydraulic Press Forming Machine for 3D Wall Decration With Dedicated Keel MachineUS$ 8,000 - 10,000MOQ: 1 Set -
Floor Tile Bearing Plates Floor Deck Roll Forming MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Metal Floor Bearing Plate Roll Forming Machine For The Structural ContreteUS$ 20,000 - 50,000MOQ: 1 Set
-
Metal Floor Deck Roll Forming Machine Customised According to YouUS$ 20,000 - 50,000MOQ: 1 Set
-
Automatic Metal Floor Deck Roll Forming Machine, Deck Floor Roll Forming MachineUS$ 20,000 - 50,000MOQ: 1 Set
3D Panel Roll Forming Machine
Ⅰ:Composition of machine
Roll forming main machine: 1 unit
5 Tons manual decoiler: 1 unit
Control panel: 1 unit
Hydraulic station: 1 unit
Ⅱ: Details of each composition
(1)Roll forming main machine
1: Coil width: depend on profile
Adjust the size: control by PLC system
2: working speed: 12pieces/min
5:material of main shaft:45
6: main power: 5.5kw
7: forming thickness: 0.3mm—0.5mm Q235
8: Transmission: by Chains 1.5 Inch
9: size of machine: about 1200×1400×1600mm(L*W*H)
10: weight: about 3000Kg
11:Cutting:
- Machine adopt hydraulic post-cutting
- Material of blade: CR12with heat treatment 3sets
- Length measuring: Automatic length measuring
- Tolerance of length: 3m+/- 1.5mm
(2) 5Tons manual decoiler
a. Dimensions: 1000*1400*1000mm (L*W*H)
b. Width of feeding: 600mm
d. Bound of expand &fight: 450-550mm
e. Mode of expand & fight: inner expand & fight by manual
f. Way of feeding: servo feeding
(3) Control panel
a. Voltage, frequency, phase: 380V, 50HZ, 3Phase
b. Automatic length measurement
c. Automatic quantity measurement
d. Computer used to control length & quantity, machine will automatically cut to length and stop when required quantity is achieved
e. Length inaccuracy can be amended easily
f. Control panel: button type switch and touch screen
g. Unit of length: millimeter (switched on the control panel)
(4)Hydraulic station
a. Hydraulic station power: 5.5kw
b. Hydraulic pressure: 20Mpa
3. Character of main structure
Main features and components
a. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
b. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c. Qe adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d. It is very easy to install the equipment and suitable for producing in the factory.
e. The machine has features of low noise and high efficiency.
Technological process
Decoiling - feeding - guide - straighten the sheet - punching
Price
Pls contact with sales
