price of plastic hdpe pipe extrusion machine for sale
Characteristic&Application

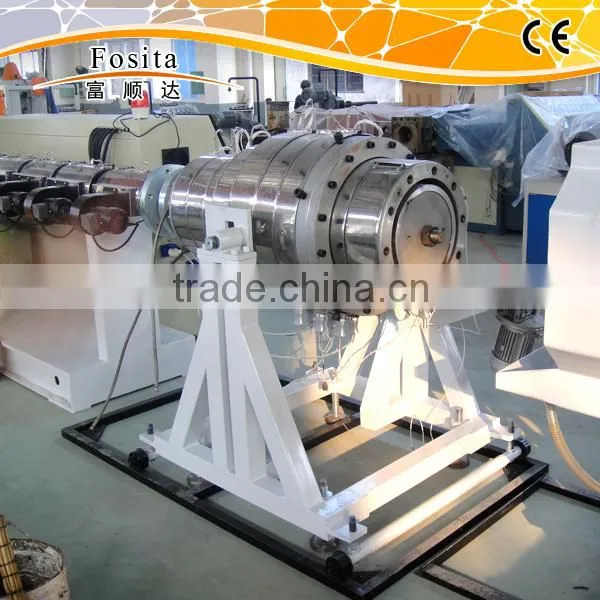

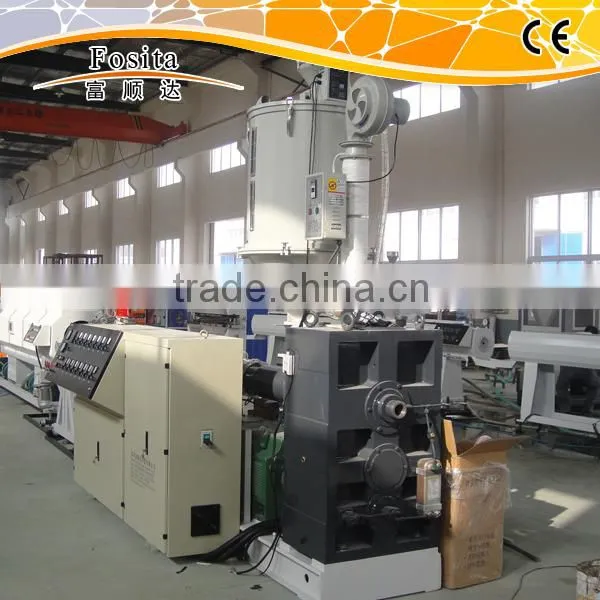

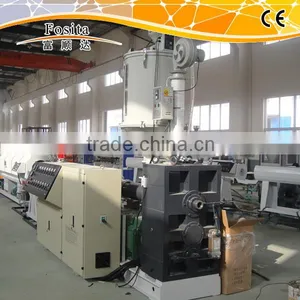

The screw of the extruder is equipped with barrier unit and mixing structure,and the barrel owns new style grooves.All of these offer good plastification and mixing effect.Special design of basket die head for HDPE(PP,ABS)large diameter pipe with thick wall offer lower melting temperature,good mixing,lower pressure of caavity,and stable production.

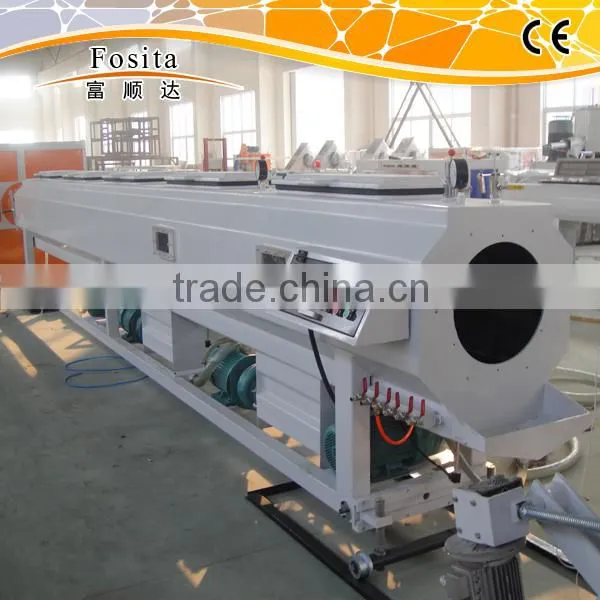

Special design for sizing and cooling system by using film and water ring to cool HDPE(PP,ABS) material,which can fit for the requirement of HDPE(PP,ABS).

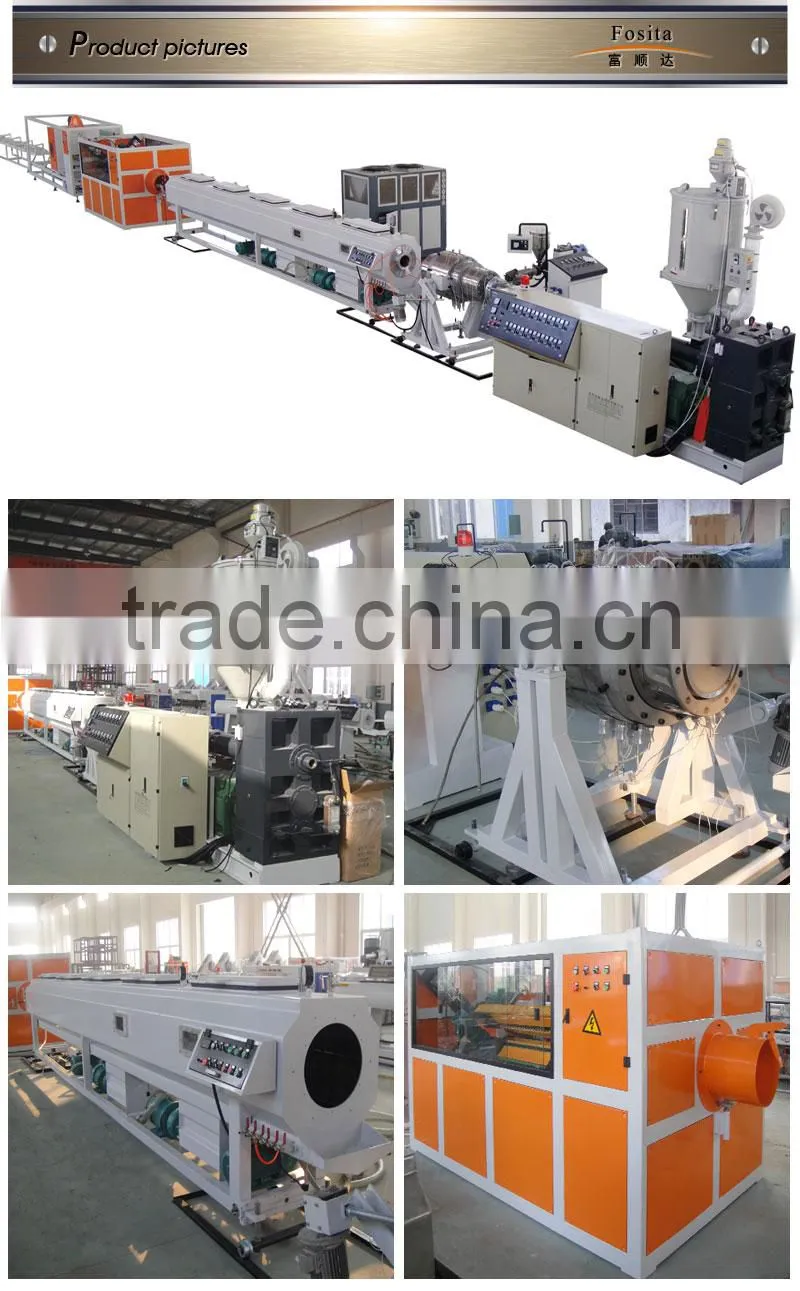

The whole production line adopts PLC performance control system,which makes the operation convenient.This line can be equipped with co-extruder for extruding color strip.
Technical Parameter
| model | diameter(mm) | extruder | hauling speed(m/min) | max.capacity(kg/h) | installed power(kw) |
| FST-PE63 | 20-63 | FST65/30 | 3-15 | 180 | 70 |
| FST-PE110 | 20-110 | FST75/30 | 3-12 | 250 | 120 |
| FST-PE160 | 75-160 | FST75/33 | 2-10 | 350 | 160 |
| FST-PE250 | 75-250 | FST90/30 | 2-6 | 450 | 200 |
| FSTPE-315 | 110-35 | FST90/33 | 1.5-4 | 500 | 250 |
| FST-PE400 | 160-400 | FST90/33 | 1-3 | 550 | 280 |
| FST-PE500 | 200-500 | FST100/33 | 1-2.5 | 700 | 300 |
| FST-PE630 | 250-630 | FST120/33 | 0.5-2 | 900 | 400 |
