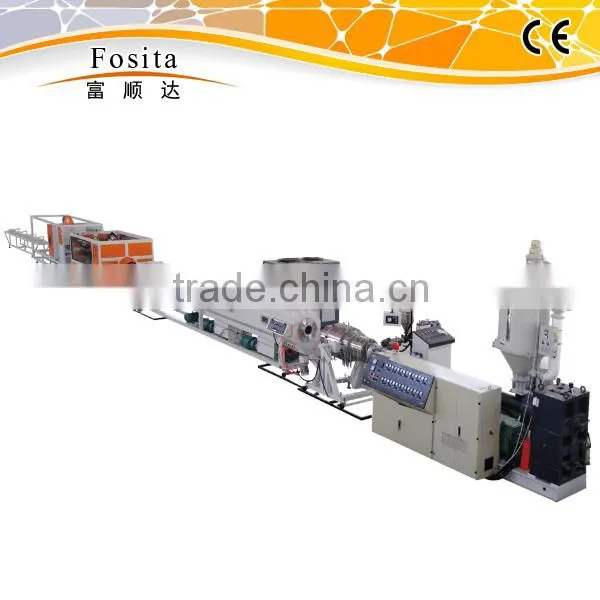

CE Certificate Pipe making machine,hdpe pipe making machine,Plastic Pipe Making machine
Description:
1.The pipes are extruded by the first extruder and then enter the twist form machine, at the same time the basket co-extrusion mould forms pipes' shape.
2.The pipes are based on high density PE as main raw material.
Main advantage:
1.This kind of pipes have many advantages, such as corrosion resistant light, easy to fix, long time to use etc.
2.The pipes are widely used in high-way, municipal constructional, flats and so on.
Process line:
Raw material+master batches→mixing → vacuum feeding → material dryness → single screw extruder → basket co-extrusion mould → calibrator → spray vacuum calibration tank → spray cooling water tank → belt haul-off → single screw glue extruder → winder → winding roller forming → water cooler → pipe rack → finished product inspecting&packing
Technical parameters:
Model |
Screw diameter |
L/D |
Pipe range(mm) |
Main motor power (kw) |
Total power(kw) |
Line length (mm) |
PE-63 |
65mm |
33:1 |
16-63 |
37 |
80 |
24 |
PE-110 |
65mm |
33:1 |
75-110 |
55 |
110 |
30 |
PE-160 |
75mm |
33:1 |
90-160 |
90 |
150 |
32 |
PE-250 |
75mm |
33:1 |
110-250 |
110 |
200 |
42 |
PE-315 |
90mm |
33:1 |
160-315 |
160 |
240 |
44 |
PE-400 |
90mm |
33:1 |
200-400 |
185 |
300 |
50 |
PE-500 |
120mm |
33:1 |
250-500 |
280 |
350 |
56 |
PE-630 |
120mm |
33:1 |
315-630 |
280 |
480 |
56 |
PE-800 |
150mm |
33:1 |
400-800 |
315 |
550 |
72 |
If you want more information, please contact us, thanks!
Our company is near Shanghai ,about 2hours by car. Welcome to our factory anytime!
