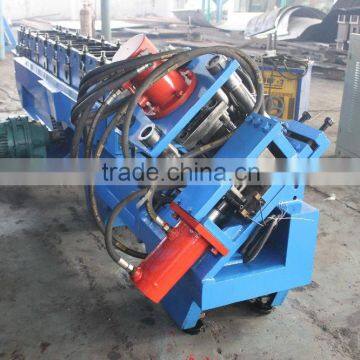

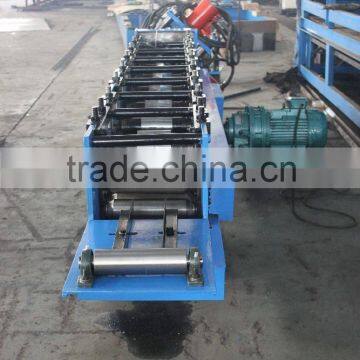

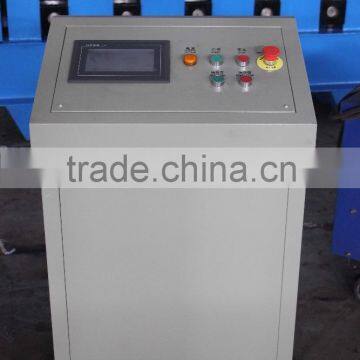

Angle Bar Forming Machine, Angle L Roll Forming Line

Angle roll forming machine

Ⅰ:Composition of machine

Manual Decoiler……………………………………..…1 unit

Roll forming main machine………………………….…1 unit

Manual out table……………………… ……………….1 unit

Ⅱ: Details of each composition

A: Roll forming main machine

1: Coil width: depend on customer profile

2: working speed: 12m—15m/min (not contain cutting and punching)

3: Main roll forming station:7 stations

One leveling station, 5 roller leveling.

One step of straightening station, make sure angle preciseness.

4: material of roller: Gcr15 steel, polished and coated with chrome HRC58-62℃

5:material of main shaft: steel grade: 45,   diameter roller: 56mm

6: main power: 5.5kw

7: forming thickness: 1.5mm—3.0mm mild steel

8: Transmission: by single line 1.0 inch Chains

9: size of machine: about 4500 x 800 x1200 (L x W x H)

10: weight: about 4000Kgs

11: color: blue and blue (it is also can changed depend on customer request)

E: manual out table:

(1)Jointed by 60mm*40mm tube

(2)Size: 1.0m long*0.8mwide*0.6-1mhigh

Character of main structure

Main features and components of the machine

1,main features

a,the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.

b.all the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c,we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

d: it is very easy to install the equipment and suitable for producing in the factory.

e: the machine has features of low noise and high efficiency.

Technological process

leveling—roll forming---straightening part---product packing manual

Profile drawing  (basis on customer’s require to design)

For A: max 100mm

For B: max 100mm

FOB shanghai USD 17,500/set

Production time: 50 working days after received 30% advance payment.
