L shape forming line, Angle bar forming line
- 10 Set / Sets per Month
- ShangHai/NingBo
- T/T Credit Card
- Round Galvanized Color Steel Rain Downspout Pipe Making Machine Roll Forming Machine With Bending Machine
- Solar Frame Solar Panel Mounting Structure Cold RollFormer Line
- Galvanized Steel Floor Deck Floor Decking Roll Forming Machine IBR Roofing Sheet Forming Machine
- Galvanized Stainless Steel Drywall Light Steel Keel Manufacturing Equipment
- Roof Tile Wall Panel Color Steel Sheet Double Layer Roll Forming Machine
- Stainless Steel Galvanized Color Steel Ceiling Board Roll Forming Line
Product Details
Condition: | New | Work Pressure: | normal pressure | Production Capacity: | 8-15m/min |
Place of Origin: | Jiangsu, China | Brand Name: | FSM | Model Number: | Angle bar machine |
Voltage: | 380V/50Hz | Power(W): | 5.5kw | Dimension(L*W*H): | 12000*1400*1000mm |
Weight: | 14TON | Certification: | CE/SGS | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

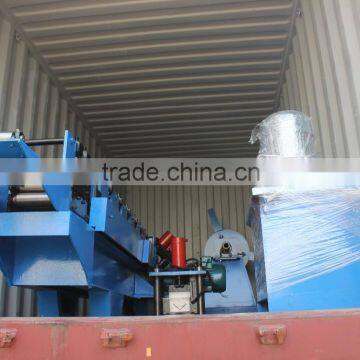

Angle roll forming machine
Ⅰ:Composition of machine

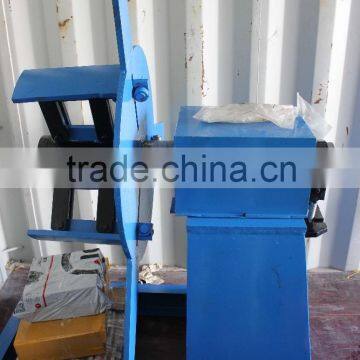

Manual Decoiler……………………………………..…1 unit
Roll forming main machine………………………….…1 unit
Manual out table……………………… ……………….1 unit
Ⅱ: Details of each composition
A: Roll forming main machine
1: Coil width: depend on customer profile
2: working speed: 12m—15m/min (not contain cutting and punching)
3: Main roll forming station:7 stations
One leveling station, 5 roller leveling.
One step of straightening station, make sure angle preciseness.
4: material of roller: Gcr15 steel, polished and coated with chrome HRC58-62℃
5:material of main shaft: steel grade: 45, diameter roller: 56mm
6: main power: 5.5kw
7: forming thickness: 1.5mm—3.0mm mild steel
8: Transmission: by single line 1.0 inch Chains
9: size of machine: about 4500 x 800 x1200 (L x W x H)
10: weight: about 4000Kgs
11: color: blue and blue (it is also can changed depend on customer request)
E: manual out table:
(1)Jointed by 60mm*40mm tube
(2)Size: 1.0m long*0.8mwide*0.6-1mhigh
Character of main structure
Main features and components of the machine
1,main features
a,the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
b.all the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c,we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d: it is very easy to install the equipment and suitable for producing in the factory.
e: the machine has features of low noise and high efficiency.
Technological process
leveling—roll forming---straightening part---product packing manual
Profile drawing (basis on customer’s require to design)
For A: max 100mm
For B: max 100mm
FOB shanghai USD 17,500/set
Production time: 50 working days after received 30% advance payment.
