Specifications
plastic automatic loader machine1. low energy consumption
2. CE
3. stable performance

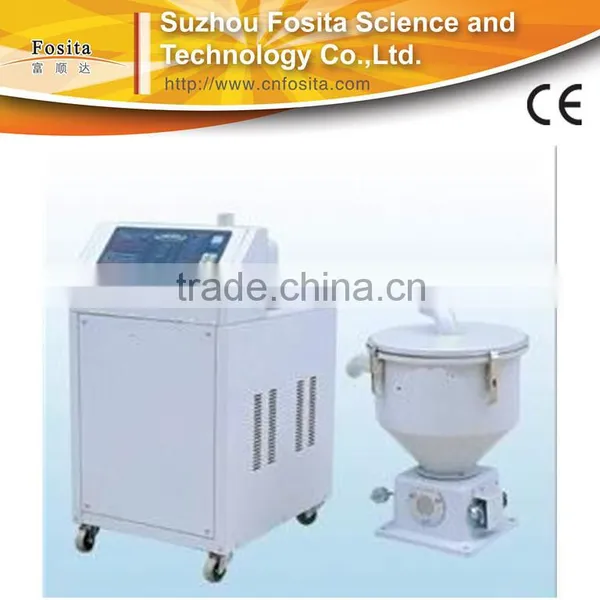

1.ZJ Series Plastic Loader:
Features and Application:
This unit adopts low vacuum principle,allowing granulated resin transfered by air flow.It can be used with hopper dryer,which realize the automation of drying and feeding.
Technical Parameter:
|
Model Parameer |
ZJ200 |
ZJ400 |
ZJ600 |
ZJ1000 |
|||
Max static press(Pa) |
9800 |
13000 |
14000 |
16000 |
|||
Max air quantity(m3/min) |
2 |
2.8 |
3.4 |
4.5 |
|||
Motor |
Power (kw) |
1.1 |
1.5 |
2.2 |
5.5 |
||
Rotating speed(rpm) |
2800 |
||||||
Conveying capacity (kg/h) |
5m |
200 |
400 |
600 |
1000 |
||
10m |
150 |
300 |
450 |
700 |
|||
Inhaling door volume(L) |
10/10 |
15/10 |
20/15 |
25 |
|||
Inner diameter of suction feeding tube(mm) |
40 |
40 |
50 |
50 |
|||
Inner diameter of inhaling tube(mm) |
50/40 |
50/40 |
60/50 |
60 |
|||
Overall dimensions(mm) |
520*400*905 370*480*820 |
520*400*905 370*480*820 |
620*400*970 420*560*870 |
800*530*1009 |
|||
|
298*266*62 298*266*460 |
298*266*67 298*266*460 |
392*312*655 392*312*510 |
614*312*820 |
||||
Weight (kg) |
75 |
90 |
100 |
130 |
|||
2. SUZHOU FOSITA Science and technology Co.Ltd is located in Zhangjiagang city Jiangsu Province, the economic booming area of Changjiang Delta.
3.Each year, there are many old and new customers come to our factory to have cooperation.
4. we have attended many trade fairs such as Chinaplas ,Arabplast and Plastindia.Next month,we will attend CHINAPLAS 2014 and Arabplast 2014.
5. Our company have high quality of products and reasonable price and using our professional technique skills to do it.
