Specifications
double winder1.double stations.
2.for aluminum-plastic compound pipe,cross-linking compound pipe and etc.
3.CE certificate

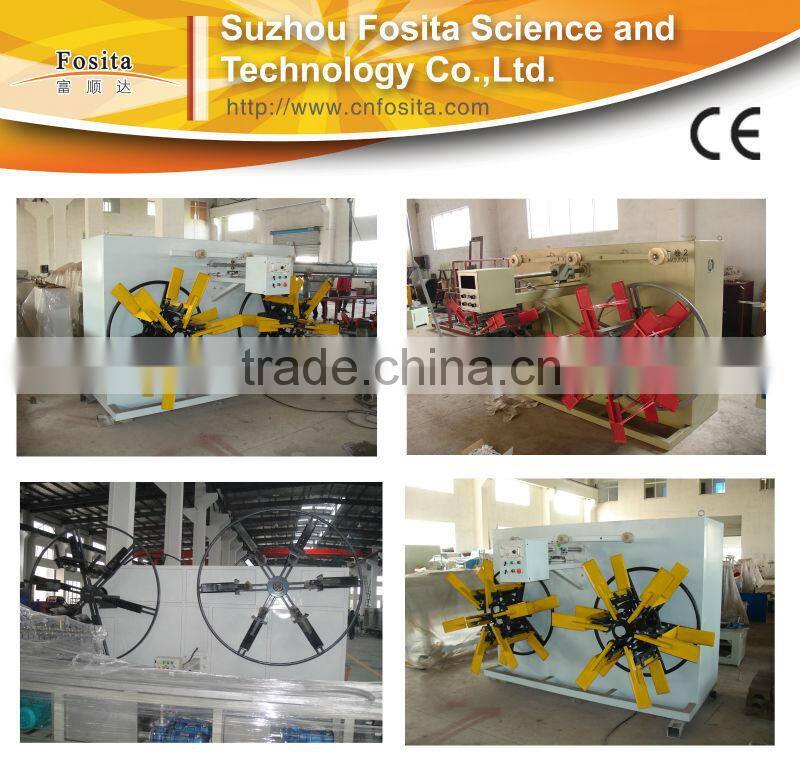

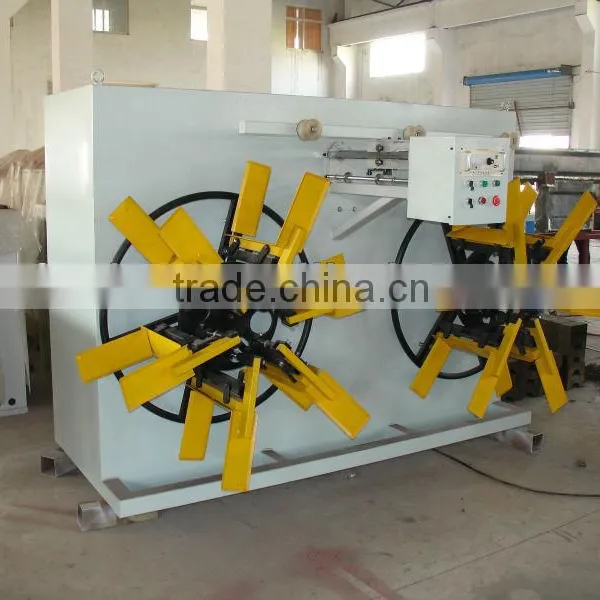

1.High quality double winder
Specification
The machine is mainly used in coiling and packing of aluminum-plastic compound pipe,cross-linking compound pipe and other plastic soft pipes. It adopts automatically winding,adjusting winding speed and winding method.It has two disk for continuous winding.It adopts pneumatic method.The wheel rib of the winding up wheel adopts pneumatic opening and closing.It is equipped with a ray creel stand to automatically wind displacement.It reaches winding up orderly.The machine structure is compact.Its automatization is high.Its appearance is beautiful and its operation is convenient.
Main technical parameter
winder disk NO.: |
2 |
winder disk inner diameter: |
540 ~ 1,600 |
largest wrapup diameter: |
2100 |
wrapup width: |
350 ~ 400 |
Spindle Speed (double speed): |
11rpm (max) / 130 rpm (max) |
largest wrapup size: |
63 |
Torque motor: |
10N.m/25 Nm |
Wire: |
Wire Rod (0-70 ) |
Discharge: |
Pneumatic necking |
Air pressure: |
0.6Mpa |
Dimensions: |
L3600 × W2600 × H2610 |
Our main products are PE/PPR/PVC pipe production lines,WPC/PVC profile production lines, PET bottles and PP/PE films recycling line,Plastic wastes pelletizing lines, and all kinds of other auxiliary equipments,such as Mixer,Crusher,Pulverizer,Shredder,Water chiller and so on.Our products,which have passed CE certificate,are exported to many countries,such as Brazil,Libya,Egypt,Qatar,Syria,UAE,Jordan,Turkey,Armenia,Nepal,Uzbekistan and so on.We also have our sales agency in Egypt and Jordan.Looking forward to cooperating with you!

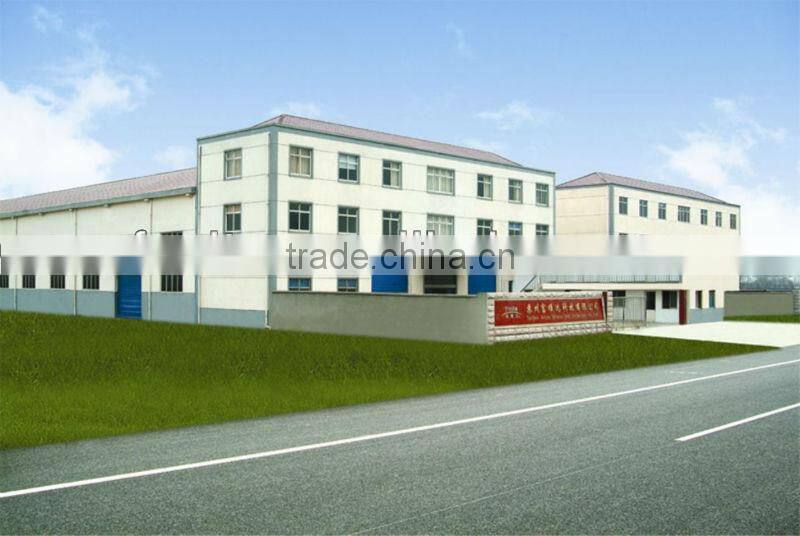

2. SUZHOU FOSITA Science and technology Co.Ltd is located in Zhangjiagang city Jiangsu Province, the economic booming area of Changjiang Delta.
3.Each year, there are many old and new customers come to our factory to have cooperation.
4. we have attended many trade fairs such as Chinaplas ,Arabplast,plastindia and this years'GUANGZHOU FAIRS.
5. Our company have high quality of products and reasonable price and using our professional technique skills to do it.
