Machine (HQ500V/ HQ800V/ HA500N/ HQ800N)
US$ 1,000 - 1,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Turning Center
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HQ800 Lathe / Combination Lathe Milling MachineUS$ 990 - 1,200MOQ: 1 Set -
Lathe, Mill and Drill Machine HQ250V/500mm (Variable Speed)US$ 850 - 1,000MOQ: 5 Sets
-
Lathe, Mill and Drill Machine HQ400 (HQ400V) HQ400/1 (HQ400/1V)US$ 500 - 550MOQ: 1 Set
-
Multi-Purpose Machine HQ400/3VNegotiableMOQ: 1 Set
-
Multi-Purpose Machine HQ500N (HQ800N)NegotiableMOQ: 1 Set
Condition
New
Type
Turning Center
CNC or Not
Normal
Automatic Grade
Automatic
Max. Swing Diameter
420mm
Place of Origin
Anhui, China
Brand Name
White Eagle
Model Number
HQ800
Voltage
Customer's Requirement
Power(W)
0.55kw
Dimension(L*W*H)
1430*580*1100mm
Weight
245/280KG
Certification
CE ISO9001:2008
After-sales Service Provided
No overseas service provided
1.Product Description
1)A kind of combination machines with turning, milling, drilling and threading.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
Specification
HQ500N and HQ800N is supplied with Norton lever to realize various thread cutting range.
HQ500V and HQ800V is with variable speed and DRO
HQ500V and HQ800V is with variable speed and DRO
| SPECIFICATION | |||||
| ITEM | HQ500 | HQ800 | HQ500N | HQ800N | HQ500V/HQ800V |
| Swing over bed | φ 420mm | φ 420mm | φ 420mm | ||
| Distance between centers | 500mm | 800mm | 500mm | 800mm | 500mm/800mm |
| Max. longitudinal travel | 440mm | 740mm | 440mm | 740mm | 440mm/740mm |
| Max. cross travel | 200mm | 200mm | 200mm | ||
| Taper of spindle | M. T. 4 | M. T. 4 | M. T. 4 | ||
| Spindle hole | φ 28mm | φ 28mm | φ 28mm | ||
| Step of spindle speed | 7 | 7 | Variable speed | ||
| Range of spindle speed | 160-1360r. p. m | 160-1360r. p. m | Low: 0630r. p. m/High: 630-1800r. p. m | ||
| Barrel travel | 70mm | 70mm | 70mm | ||
| Taper of center | M. T. 3 | M. T. 3 | M. T. 3 | ||
| Metric thread range | 0.2-6mm | 0.7-4mm | 0.7-4mm | ||
| Inch thread range | 4-120T. P. I | 4-30T. P. I | 4-30T. P. I | ||
| Longitudinal range of automatic feeding | 0.05-0.35mm/0.002-0.014" | 0.088-0.55mm/0.0035-0.022" | 0.088-0.55mm/0.0035-0.022" | ||
| Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014" | 0.088-0.55mm/0.0035-0.022" | 0.088-0.55mm/0.0035-0.022" | ||
| Max. drilling capacity | φ 22mm | φ 22mm | φ 22mm | ||
| Worktable size (L*W) | 475× 160mm² | 475× 160mm² | 475× 160mm² | ||
| Max. end mill | φ 28mm | φ 28mm | φ 28mm | ||
| Max. face mill | φ 80mm | φ 80mm | φ 80mm | ||
| Distance between spindle center and column | 285mm | 285mm | 285mm | ||
| Distance between spindle and worktable | 306mm | 306mm | 306mm | ||
| Headstock travel of up and down | 110mm | 110mm | 110mm | ||
| Spindle taper | M. T. 3 | M. T. 3 | M. T. 3 | ||
| Step of spindle speed | 16 | 16 | Variable speed | ||
| Range of spindle speed | 120-3000r. p. m | 120-3000r. p. m | Low: 0-800r. p. m /High: 800-2800r. p. m | ||
| Swivel degree of headstock | ± 360° | ± 360° | ± 360° | ||
| Motor power | 0.55Kw/0.55Kw | 0.55Kw/0.55Kw | 1.1Kw | ||
| Packing size | 1130× 580× 1100mm(HQ800: 1430× 580× 1100mm) | 1130× 580× 1100mm(HQ800N: 1430× 580× 1100mm) | 1130× 580× 1100mm(HQ800V: 1430× 580× 1100mm) | ||
| N. weight/G. weight | 245kg/280kg(HQ800: 275kg/325kg) | 250kg/285kg(HQ800N: 280kg/330kg) | 250kg/285kg(HQ800V: 280kg/330kg) | ||
| Loading amount | 40pcs/20' container(800: 32pcs/20' container | 40pcs/20' container(800N: 32pcs/20' container | 40pcs/20' container(800V: 32pcs/20' container | ||

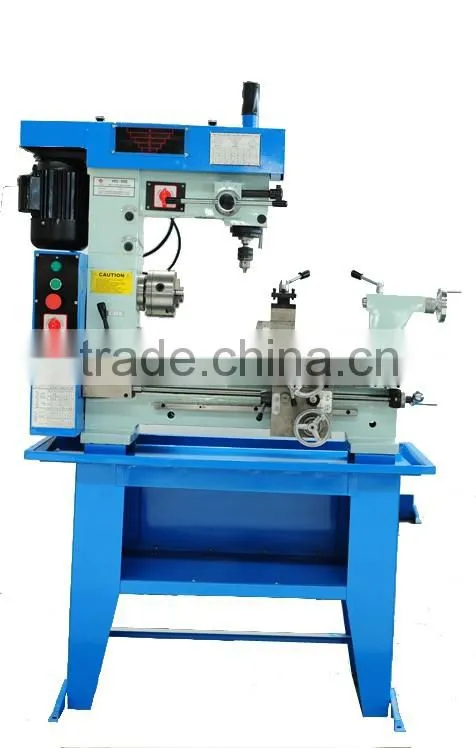

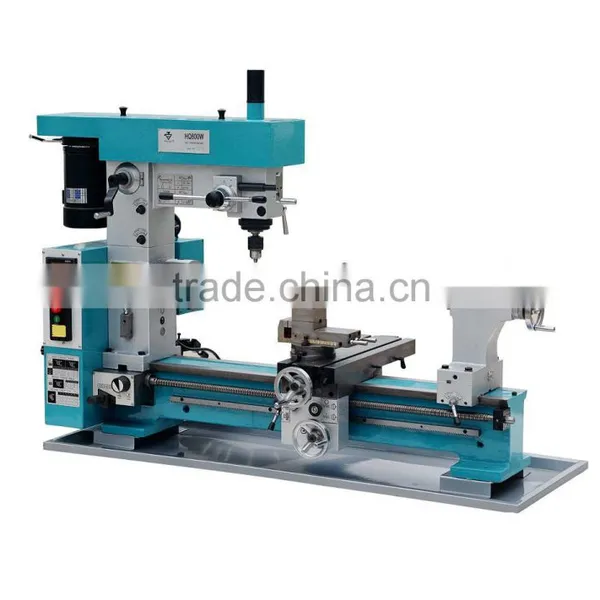

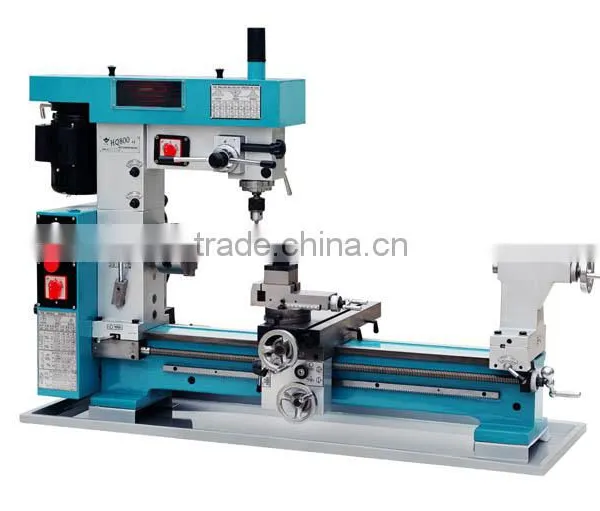

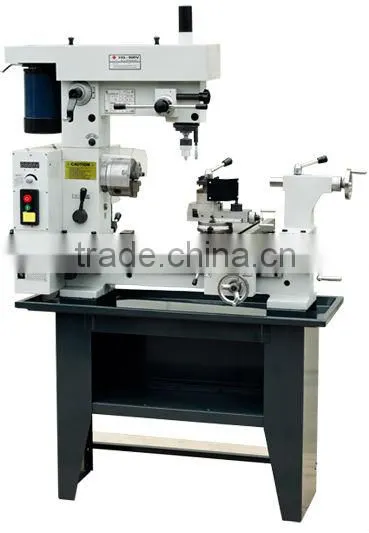

2.Machine Photo

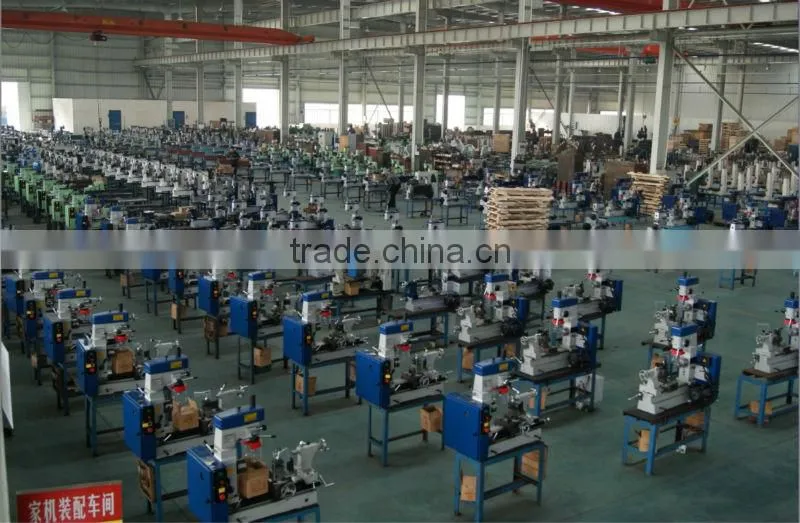

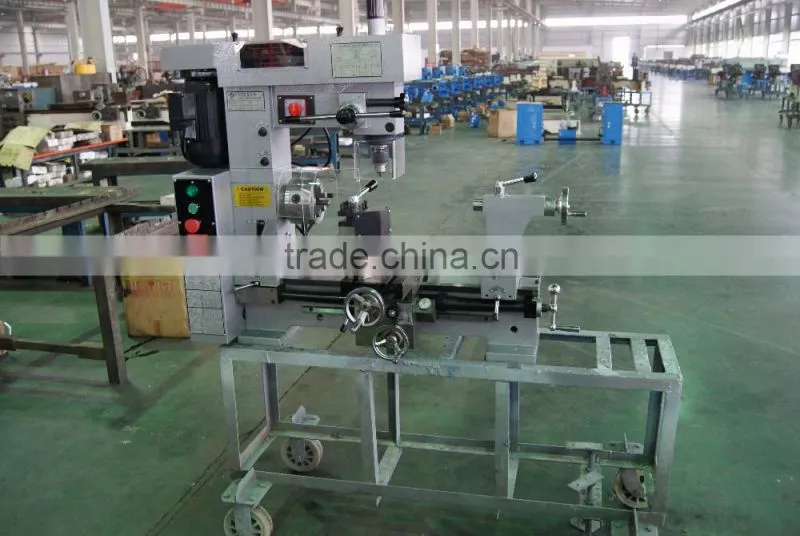

3.Manufacturing Ability
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
1994
Factory Size
10,000-30,000 square meters
Total Employees
501 - 1000 People
