HQ800 Lathe / Combination Lathe Milling Machine
US$ 990 - 1,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Turning Center
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lathe, Mill and Drill Machine HQ250V/500mm (Variable Speed)US$ 850 - 1,000MOQ: 5 Sets -
Lathe, Mill and Drill Machine HQ400 (HQ400V) HQ400/1 (HQ400/1V)US$ 500 - 550MOQ: 1 Set
-
Multi-Purpose Machine HQ400/3VNegotiableMOQ: 1 Set
-
Multi-Purpose Machine HQ500N (HQ800N)NegotiableMOQ: 1 Set
-
Multi-purpose Machine HQ400/3B,HQ400/3LUS$ 750 - 1,200MOQ: 1 Set
Condition
New
Type
Turning Center
CNC or Not
Normal
Automatic Grade
Manual
Max. Swing Diameter
420mm
Place of Origin
Anhui, China
Brand Name
White Eagle
Model Number
HQ800
Voltage
Customer's Requirement
Power(W)
0.55kw
Dimension(L*W*H)
1130*580*1100mm
Weight
245/280KG
Certification
CE, ISO9001:2008
After-sales Service Provided
No overseas service provided
1.Product Description
1)A kind of combination machines with turning, milling, drilling and threading.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
Specification
| MULTI-PURPOSE MACHINE | HQ500 | HQ800 | |
| TURNING | Swing over bed | 420mm | 420mm |
| Distance between centers | 500mm | 800mm | |
| Max. longitudinal travel | 440mm | 740mm | |
| Max. cross travel | 200mm | 200mm | |
| Taper of spindle | M. T. 4 | M. T. 4 | |
| Spindle hole | φ 28mm | φ 28mm | |
| Step of spindle speed | 7 | 7 | |
| Range of spindle speed | 160-1360r. p. m | 160-1360r. p. m | |
| Barrel travel | 70mm | 70mm | |
| Taper of center | M. T. 3 | M. T. 3 | |
| Metric thread range | 0.2-6mm | 0.2-6mm | |
| Inch thread range | 4-120T. P. I | 4-120T. P. I | |
| Longitudinal range of automatic feeding | 0.05-0.35mm / 0.002-0.014 inch | 0.05-0.35mm / 0.002-0.014 inch | |
| Cross range of automatic feeding | 0.05-0.35m / 0.002-0.014 inch | 0.05-0.35m / 0.002-0.014 inch | |
| DRILLING & MILLING | Max. drilling capacity | φ 22mm | φ 22mm |
| Worktable size (L*W) | 475× 160mm² | 475× 160mm² | |
| Max. end mill | φ 28mm | φ 28mm | |
| Max. face mill | φ 80mm | φ 80mm | |
| Distance between spindle center and column | 285mm | 285mm | |
| Distance between spindle and worktable | 306mm | 306mm | |
| Headstock travel of up and down | 110mm | 110mm | |
| Spindle taper | M. T. 3 | M. T. 3 | |
| Step of spindle speed | 16 | 16 | |
| Range of spindle speed | 120-3000r. p. m | 120-3000r. p. m | |
| Swivel degree of headstock | ± 360° | ± 360° | |
| MOTOR | Motor power | 0.55Kw/ | 0.55Kw/ |
| SHIPMENT DATA | Packing size | 1130× 580× 1100mm | 1430× 580× 1100mm |
| N. weight/G. weight | 245kg/280kg | : 275kg/325kg | |
| Loading amount | 40pcs/20’ container | 32pcs/20’ container | |

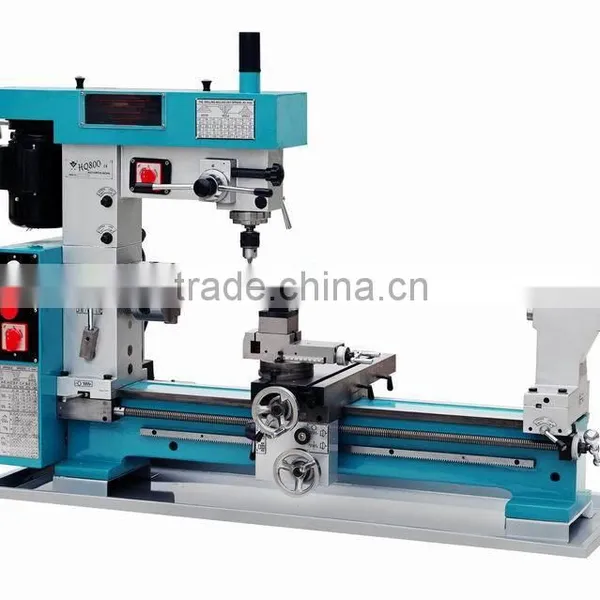

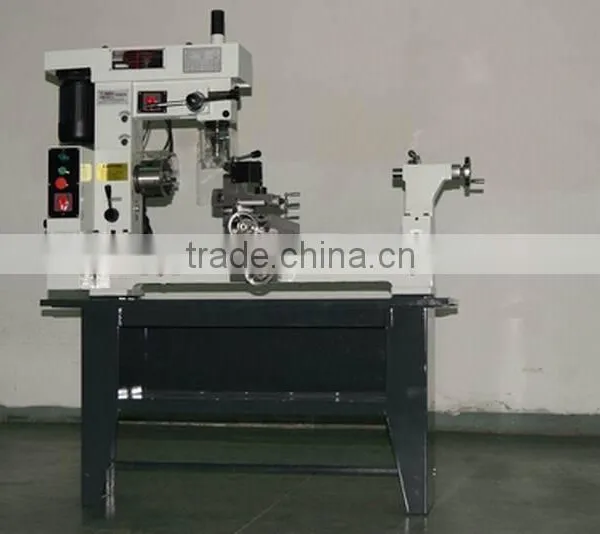

2.Machine Photo

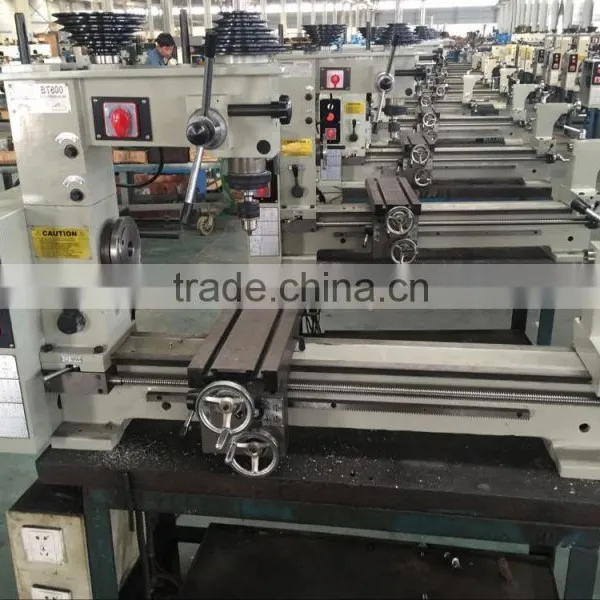

3.Manufacturing Ability
4.CE AND ISO9001 Certificate
