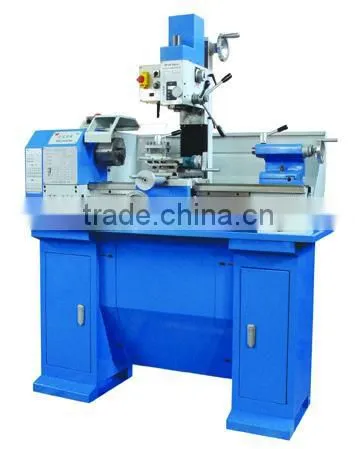

Multi-Purpose Machine Model HQ280
Product Description
1. Very practical machine with leadscrew for turning / milling / drilling of parts
2. Easy tooling change-over from turning to drilling / milling
3. Rigid machine bed with hardened and ground guideways, taper gibs for zero-backlash adjustments
4. Precision bearings ensure high spindle concentricity
5. Milling unit with swivel
MODEL |
WM280 (WM280V-Variable speed) |
|
|
TURNING |
|
|
Max.sawing over bed |
280mm |
|
Distance between centers |
700mm |
|
Swing over cross slide |
170mm |
|
Width of bed |
180mm |
|
Taper of spindle bore |
MT4 |
|
Spindle bore |
26mm |
|
Range of spindle speeds |
50-2500rpm |
|
Range of longitudinal feed |
0.07-0.40mm/r |
|
Range of inch threads |
8-56TPI |
|
Range of metric threads |
0.2-3.5mm |
|
Taper of tailstock quill |
MT2 |
|
Motor power |
1100W |
|
|
|
|
|
DRILLING & MILLING
|
Max.drilling capacity |
Max. Φ20mm |
Milling cap. of cutter head |
Max.63mm |
|
Milling cap.of end mill cutter |
Max.20mm |
|
Taper of spindle bore |
MT2 |
|
Sleeve travel |
52mm |
|
T T-slot size |
12mm |
|
Range of spindle speeds |
50-3000rpm |
|
Max.distance spindle to table |
380mm |
|
Working range |
190mm |
|
Motor power |
850W |
|
SHIPMENT DATA |
Packing dimensions ( L x W x H ) |
1390X850X1060mm |
Net weight |
235kg |
|
Voltage/Frequency |
As customers requirement |
|
