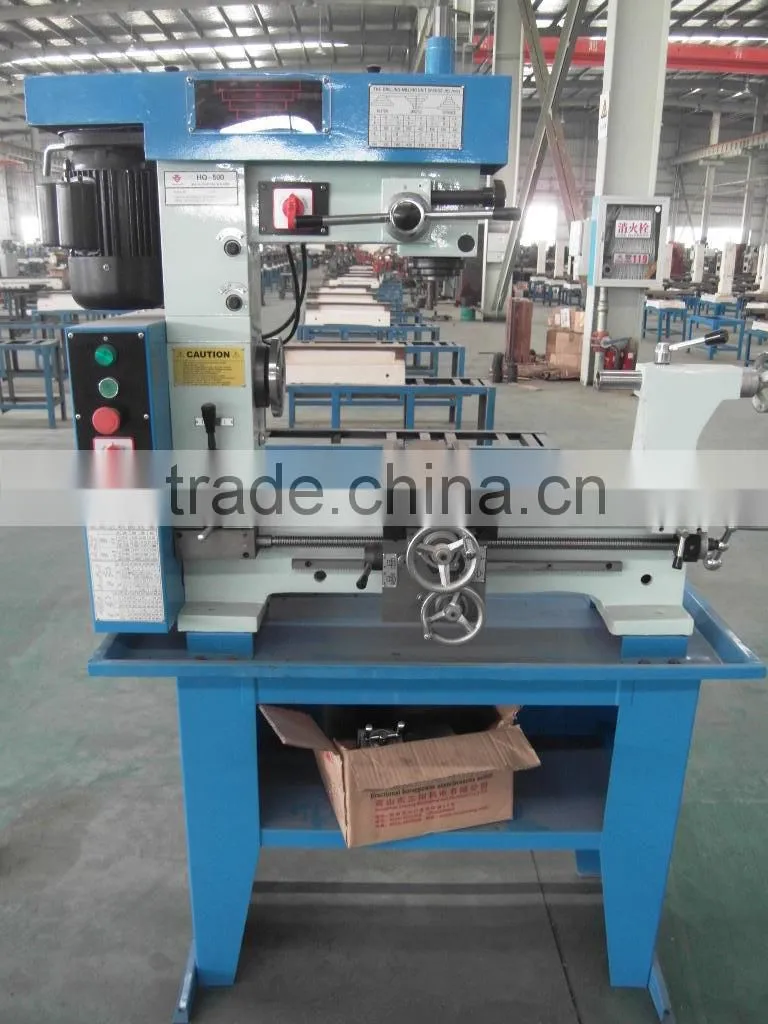

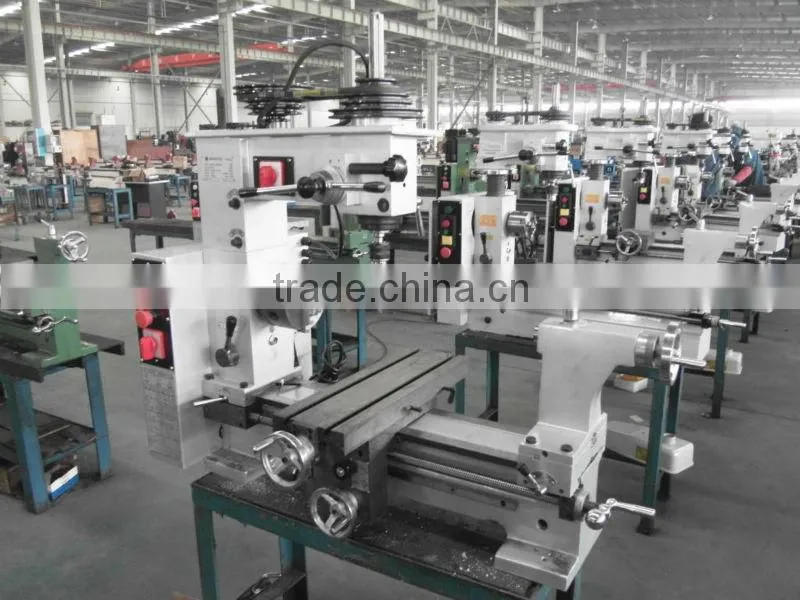

HQ500 Combo Lathe / Milling Head and Bed
US$ 750 - 1,100
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
White Eagle
Model Number:
HQ800
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HQ500 Multi-purpose MachineUS$ 750 - 1,100MOQ: 1 Set -
Lathe, Mill and Drill Machine HQ250V/500mm (Variable Speed)US$ 850 - 1,000MOQ: 5 Sets
-
HQ500 MachineUS$ 750 - 1,100MOQ: 1 Set
-
Lathe, Mill and Drill Machine HQ280V/700 (Variable Speed)US$ 1,100 - 1,200MOQ: 5 Sets
-
Lathe, Mill and Drill Machine WM280V/700 (Variable Speed)US$ 1,100 - 1,200MOQ: 5 Sets
Place of Origin
Anhui, China
Brand Name
White Eagle
Model Number
HQ800
After-sales Service Provided
Overseas service center available
Specifications
Expert manufacturer of lathe mill and drill machineProduct Description
1. Very practical machine with leadscrew for turning / milling / drilling of parts
2. Easy tooling change-over from turning to drilling / milling
3. Rigid machine bed with hardened and ground guideways, taper gibs for zero-backlash adjustments
4. Precision bearings ensure high spindle concentricity
5. Milling unit with swivel
6.HQ500 / HQ800
| MODEL | HQ500(HQ800) | |
| TURNING | Swing over bed | 420mm |
| Distance between centers | 500mmHQ800:800mm | |
| Max. longitudinal travel | 440mm (HQ800:740mm) | |
| Max. cross travel | 200mm | |
| Taper of spindle | M.T.4 | |
| Spindle hole | φ28mm | |
| Step of spindle speed | 7 | |
| Range of spindle speed | 160-1360r.p.m | |
| Barrel travel | 70mm | |
| Taper of center | M.T.3 | |
| Metric thread range | 0.2-6mm | |
| Inch thread range | 4-120T.P.I | |
| Longitudinal range of automatic feeding | 0.05-0.35mm/0.002-0.014 | |
| Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014 | |
| DRILLING & MILLING | Max. drilling capacity | φ22mm |
| Worktable size (L*W) | 475×160mm² | |
| Max. end mill | φ28mm | |
| Max. face mill | φ80mm | |
| Distance between spindle center and column | 285mm | |
| Distance between spindle and worktable | 306mm | |
| Headstock travel of up and down | 110mm | |
| Spindle taper | M.T.3 | |
| Step of spindle speed | 16 | |
| Range of spindle speed | 120-3000r.p.m | |
| Swivel degree of headstock | ±360° | |
| MOTOR | Motor power | 0.55Kw/0.55Kw |
| Voltage/Frequency | As customers requirement | |
| SHIPMENT DATA | Packing size | 1130×580×1100mm(HQ800:1430×580×1100mm) |
| N. weight/G .weight | 245kg/280kg(HQ800:275kg/325kg) | |
| Loading amount | 40pcs/20container(800: 32pcs/20container |
