Home > Products > GRAPHITE SHEET/BOARD > graphite roll paper for product
graphite roll paper for product
- 60 Ton / Tons per Month
- Shanghai or Wuhan
- T/T
- IG-010 Double layer tinplate Single sided tanged sheet graphite composite sheet
- IG-009 tinplate Single sided tanged sheet graphite composite sheet
- IG-008 multi-layer stainless steel wire mesh graphite composite sheet
- IG-007 Reinforced Graphite Composite Sheet with multi-layer stainless steel (304 l, 316 l) tanged sheet
- IG-006 multi-layer tinplate tanged sheet graphite composite sheet
- IG-005 graphite reinforced composite sheet (lined with stainless steel wire mesh)
Product Details
Place of Origin: | Hubei, China | Brand Name: | Hengda graphite, Hengda graphite | Model Number: | HDS101, HDS101 |
Application: | I t is base material of making all kinds of graphite sealing products | Thickness: | 0.1mm-2.0mm, 0.1mm-2.0mm | ||
C Content (%): | 98%-99%, 98%-99% |
Product Description
HDS101 FLEXIBLE GRAPHITE PAPER
Specification :
Technical data | HDS 101 |
Temperation (°C) | -200-650 |
Tensile Strength (Mpa) | 4.0-5.0 |
Compressibility (%) | 35-55 |
Ash Content (%) | ≤1 |
S content (ppm) | ≤1200 |
Cl content (ppm) | ≤50 |
Recovery (%) | ≥20 |
Loss after heat (%) | ≤1(450°C) |
≤20(650°C) | |
Stress Relaxation (%) | ≤10 |
Density (g/cm3) | 1.0 |
Density Tolerance (g/cm3) | ±0.05 |
Thickness Tolerance (g/cm3) | ±0.03 |
PH | 0-14 |
Description:

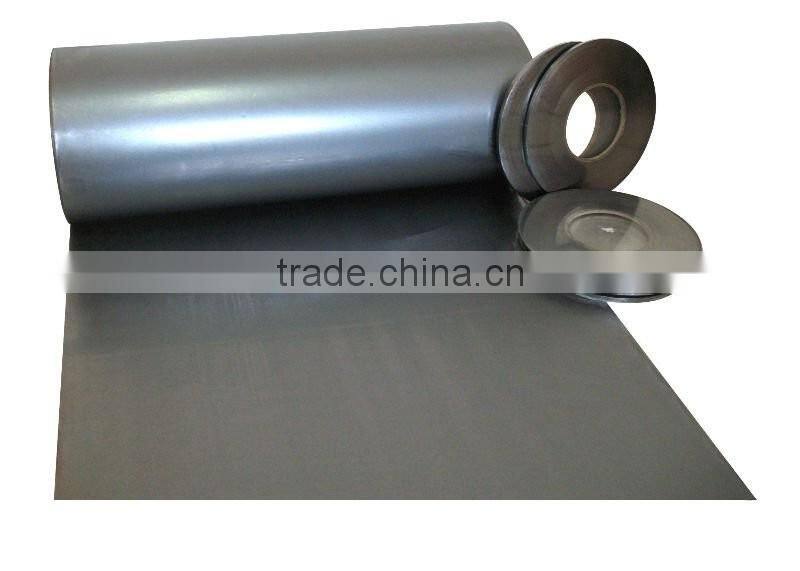

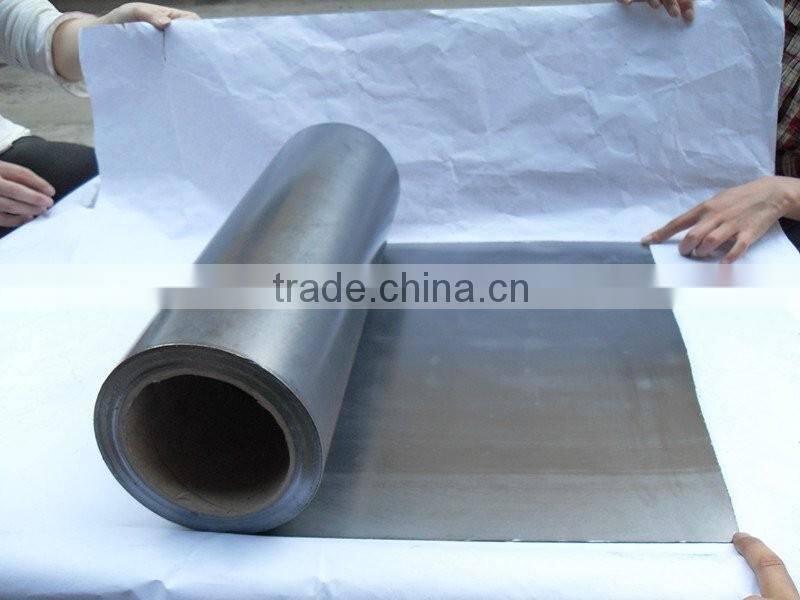

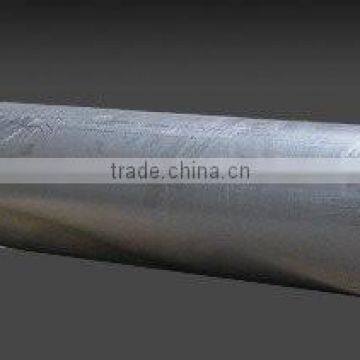

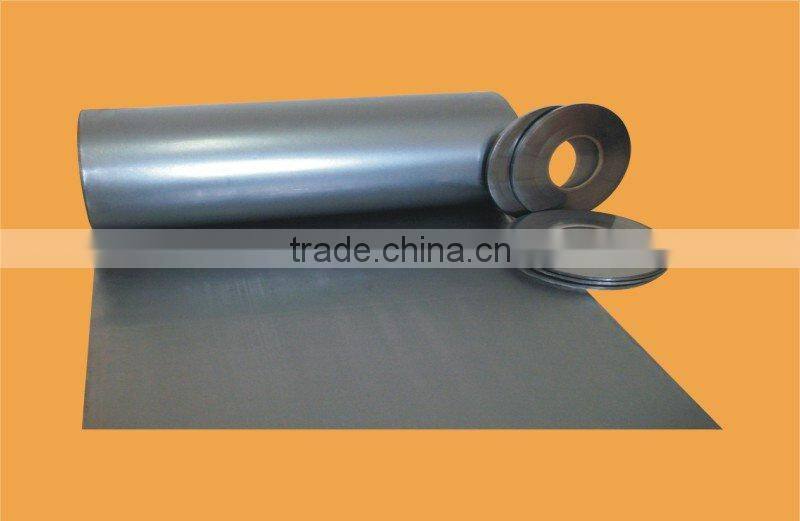

Graphite roll, as one of our main products, is manufactured with high quality and high pure graphite powder
from the mine owned by our company who specialized in graphite products for 22 years. Especially, we brought
in new technology and new machine recently which made flexible graphite sheet in better quality, such as better
chemical resistance, better thermal conductivity and better seal ability.
Picture:
