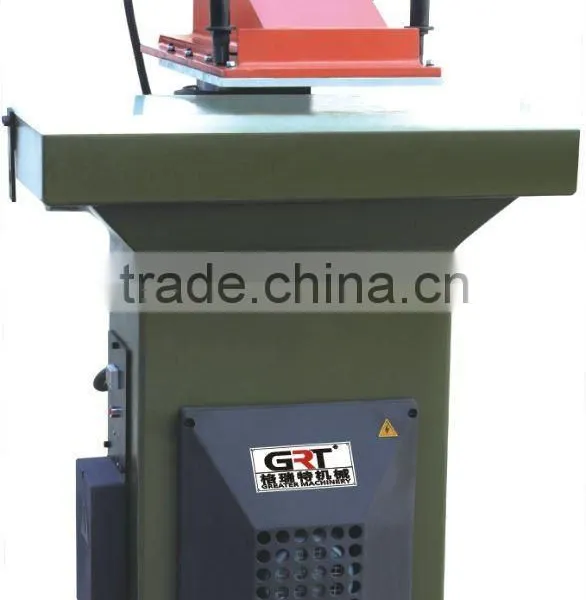

GRT-S(1+3) Three Keys Swing Arm Cutting Press/beam Press Machine/shoe Machine

GRT-S(1+3) Three Keys Swing Arm Cutting Press/beam Press Machine/shoe Machine thumbnail-1
GRT-S(1+3) Three Keys Swing Arm Cutting Press/beam Press Machine/shoe Machine photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
GRT
Model Number:
GRT-S22T(1+3)
Contact Supplier Request Quote Chat Now
Yancheng Greater Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name GRT
Model Number GRT-S22T(1+3)
After-sales Service Provided Overseas third-party support available

Specifications

this type of machine can timely output three kinds of cutting force is available for selection.

 USE AND CHARACTERISTICS

1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height.
   No adjustment is needed after the height of cutting die is changed.
3. High speed and low energy consumption.

4.  To meet the need of frequent replacement of cutting die of different sizes, this type of machine can timely output three kinds of cutting force is available for selection.

5. Ductile cast iron body made the machine be used for a very long time and small noise.



MAIN TECHNICAL SPECIFICATION



Model

GRT-S22T(1+3)

Max cutting force

22T

Working area

900X430mm

Swing arm width

370mm

Cutting stroke

90mm

Motor power

1.1KW

Electric Supply Voltage

3x440/415/400/380/220/200V, 50/60 Hz

Single phase 240V/220V, 50/60 Hz

Machines dimensions

900X820X1400mm

Packing size

1050X1000X1500mm

N.W(with oil)

650kg

G.W

740kg



REMARK:The machine will include the PP cutting board,hydraulic oil,tools and spare parts.

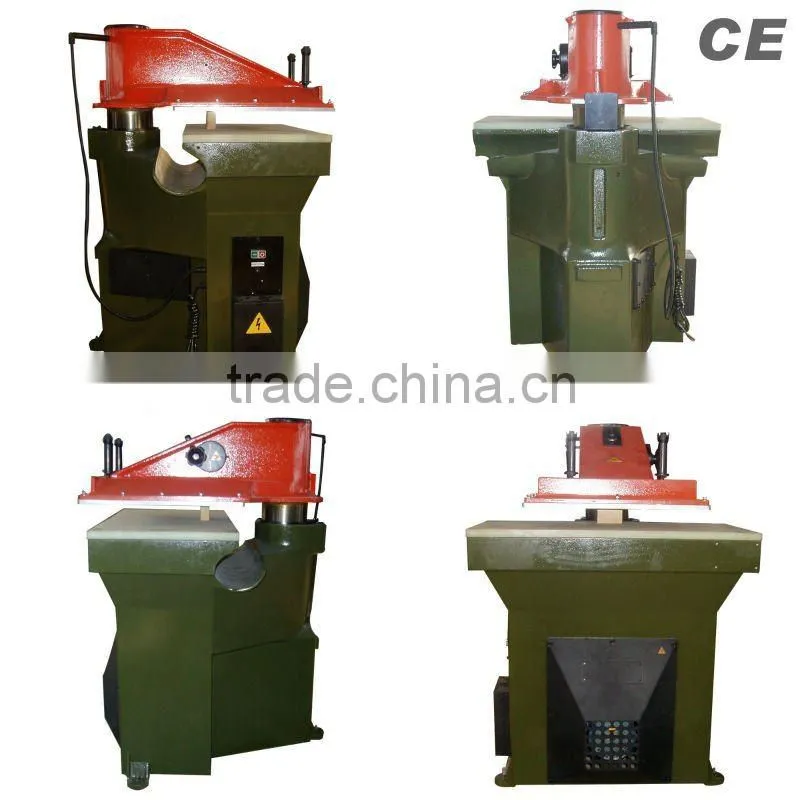

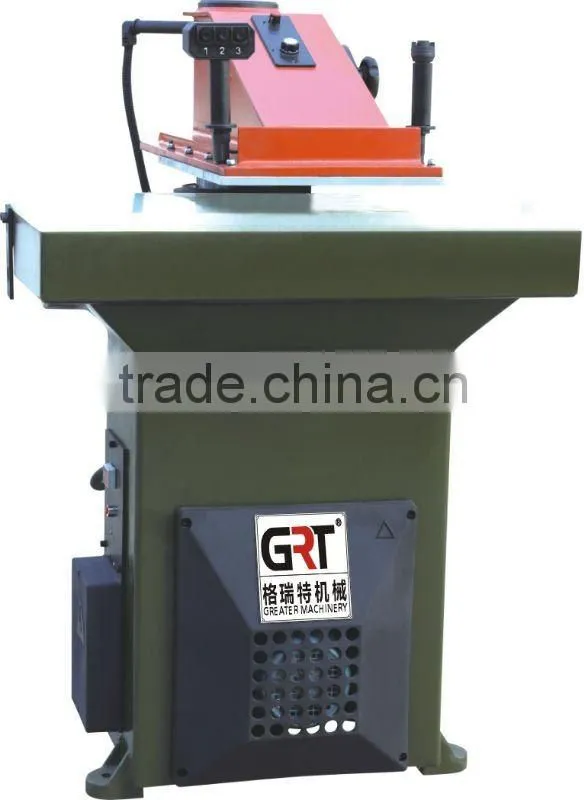

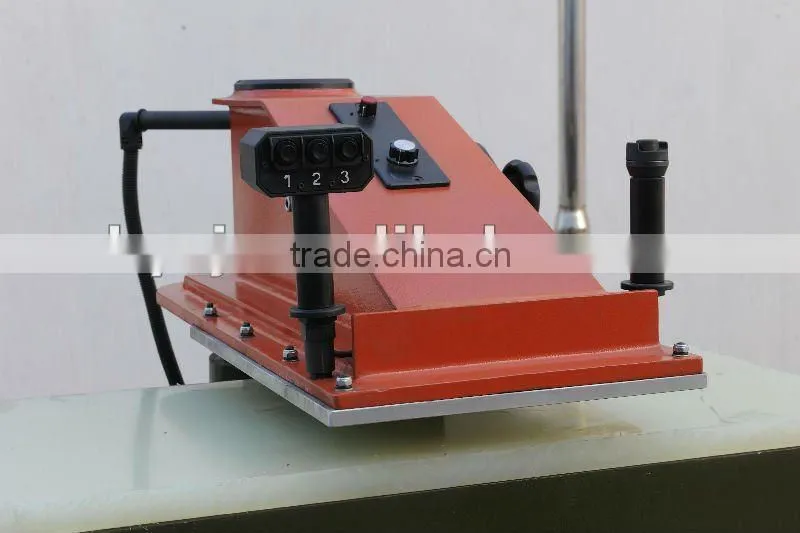

GRT-S(1+3) Three keys swing arm cutting press/beam press machine/shoe machine

 GRT-S(1+3) Three keys swing arm cutting press/beam press machine/shoe machine

 GRT-S(1+3) Three keys swing arm cutting press/beam press machine/shoe machine

GRT-S(1+3) Three keys swing arm cutting press/beam press machine/shoe machine
