USE AND CHARACTERISTICS
1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of die cutter is changed.
3. High speed and low energy consumption.
4. To meet the need of frequent replacement of die cutters of different sizes, another
type of machine that can timely output three kinds of cutting force is available for selection.
5. Ductile cast iron body made the machine be used for a very long time and small noise.
Model |
GRT-S22 |
GRT-S27 |
GRT-S27K |
GRT-S27L |
Maximum cutting force |
22T |
27T |
27T |
27T |
Table area |
900×430mm |
1000×500mm |
1000×500mm |
1000×500mm |
Swing arm width |
370mm |
370mm |
500mm |
610mm |
Cutting stroke |
90mm |
90mm |
90mm |
90mm |
Motor power |
1.1KW |
1.5KW |
1.5KW |
1.5KW |
Electric Supply Voltage |
3x440/415/400/380 /220V, 50/60 Hz |
|||
Single phase 240V/220V, 50/60 Hz | ||||
Packing size |
1050×1000×1500mm |
1150×1200×1500mm |
1150×1200×1500mm |
1150×1200×1500mm |
N.W(with oil) |
650kg |
960Kg |
1000kg |
1050kg |
G.W |
740kg |
980Kg |
1050kg |
1100kg |
REMARK:

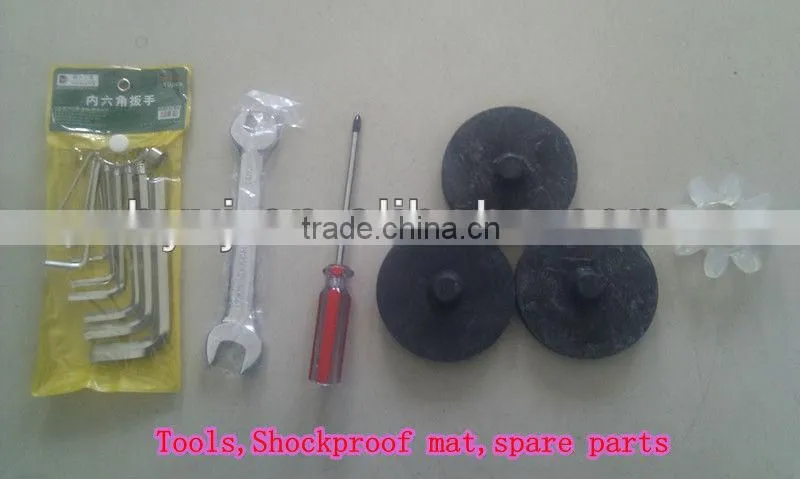

1.The machine will include the PP cutting board(1000*500*30mm),hydraulic oil,tools,power line and spare parts.You can use the machine only coonect the power!
2.Our company may provide the Portuguese instructions.
3. I have the machine working video,please contact me if you need.
please add me wechat: grtmachinery
