Specifications:

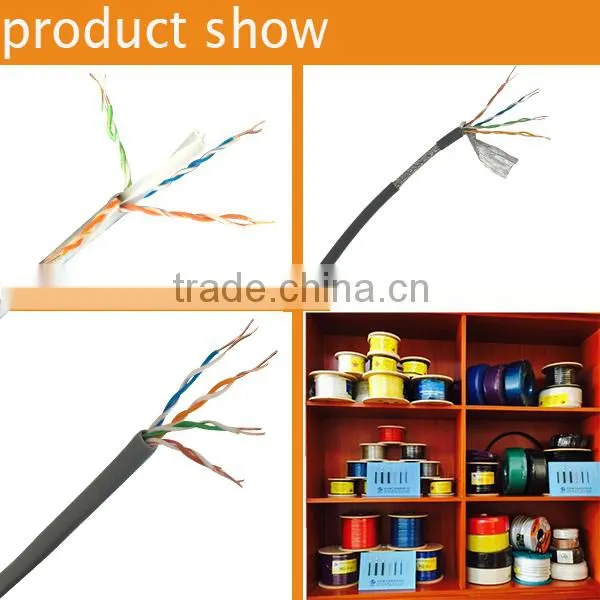

Construction
| Item | Conductor AWG | Number Of Pairs | Shielding | Drain Wire | O.D. |
| Cat5e UTP | 24 (0.51mm) | 4 | Non | Non | 5.4mm |
| Cat5e FTP | 24 (0.51mm) | 4 | Aluminum Foil | Yes | 6.0mm |
| Cat5e SFTP | 24 (0.51mm) | 4 | Aluminum Foil + Alloy Braiding | Yes | 6.5mm |
Electrical Characteristics
| Property | Value | Units | |
| DC Conductor Resistance Max. | 9.38 | Ω/100m | |
| Resistance Unbalance Max. | 2% | ||
| Mutual Capacitance Nom. | @1kHz | 5.6 | nF/100m |
| Capacitance Unbalance pair/ground Max. | @1kHz | 160 | pF/100m |
| Characteristic Impedance | 0.772 -100 MHz | 100+15 | Ω |
| Maximum Delay Skew | 1.0-100 MHz | 45 | ns/100m |
| Velocity of Propagation | 68% | Speed of Light | |
| Maximum Propagation Delay | 10 MHz | 545 | ns/100m |
Attenuation
| MHz | dB/100m (max.) | dB (min.) | dB (min.) | dB/100m (min.) | dB/100m (min.) | dB (min.) |
| 0.772 | 1.8 | 67 | 64 | - | - | - |
| 1 | 2.04 | 65.3 | 62.3 | 64 | 61 | 20 |
| 4 | 4.05 | 56.3 | 53.3 | 52 | 49 | 23 |
| 8 | 5.77 | 51.8 | 48.8 | 45.9 | 42.9 | 24.5 |
| 10 | 6.47 | 50.3 | 47.3 | 44 | 41 | 25 |
| 16 | 8.25 | 47.2 | 44.2 | 39.9 | 36.9 | 25 |
| 20 | 9.27 | 45.8 | 42.8 | 38 | 35 | 25 |
| 25 | 10.42 | 44.3 | 41.3 | 36 | 33 | 24.3 |
| 31.25 | 11.72 | 42.9 | 39.9 | 34.1 | 31.1 | 23.6 |
| 62.5 | 16.99 | 38.4 | 35.4 | 28.1 | 25.1 | 21.5 |
| 100 | 21.98 | 35.3 | 32.3 | 24 | 21 | 20.1 |

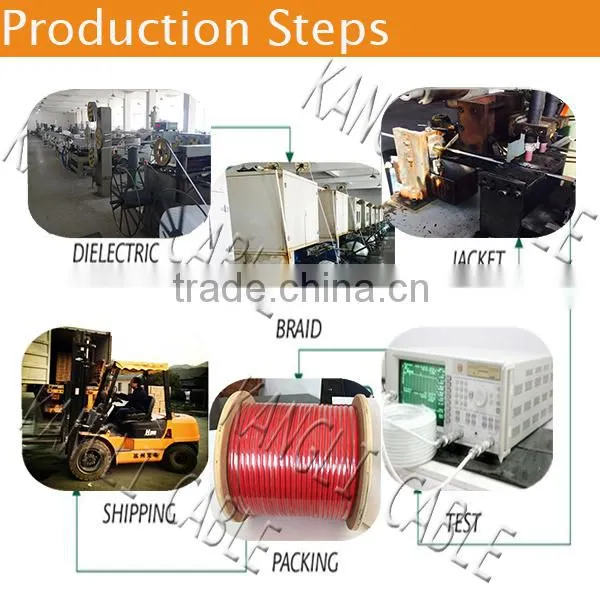

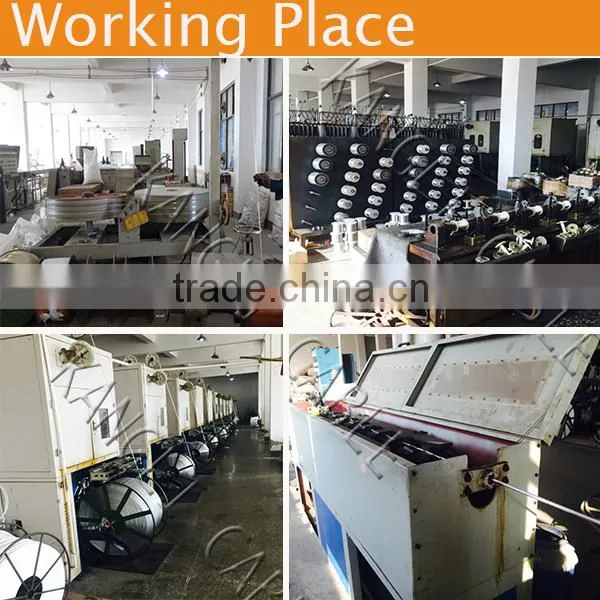

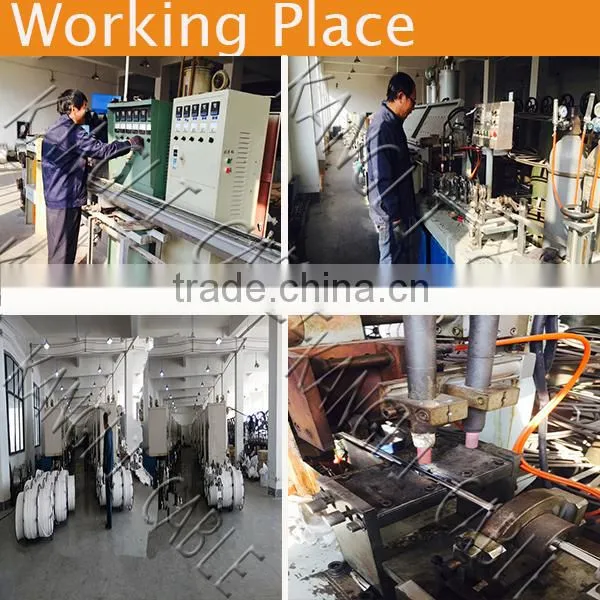

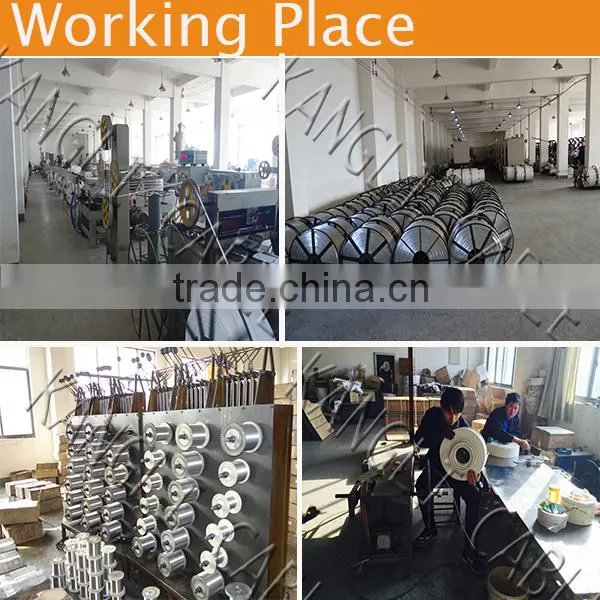

Factory Show:
Certification:

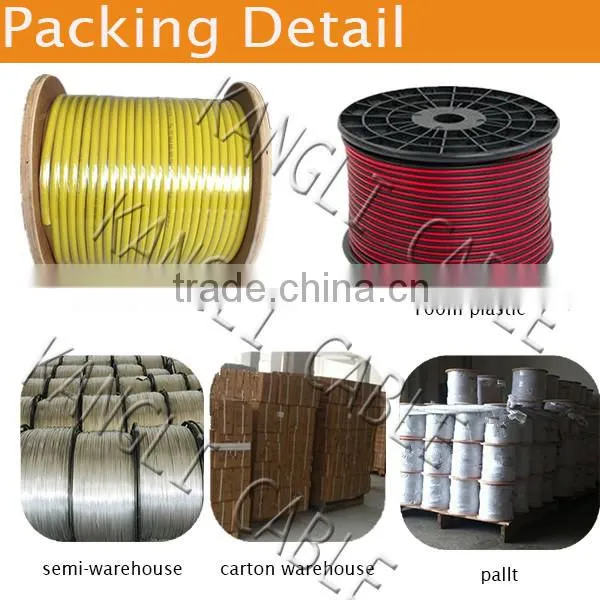

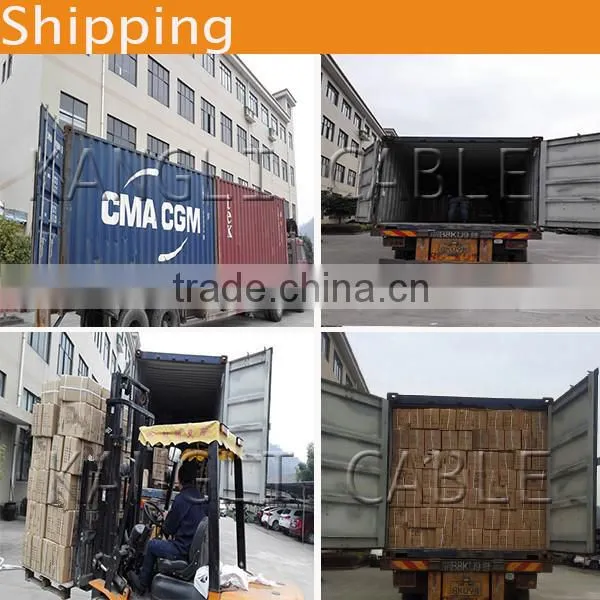

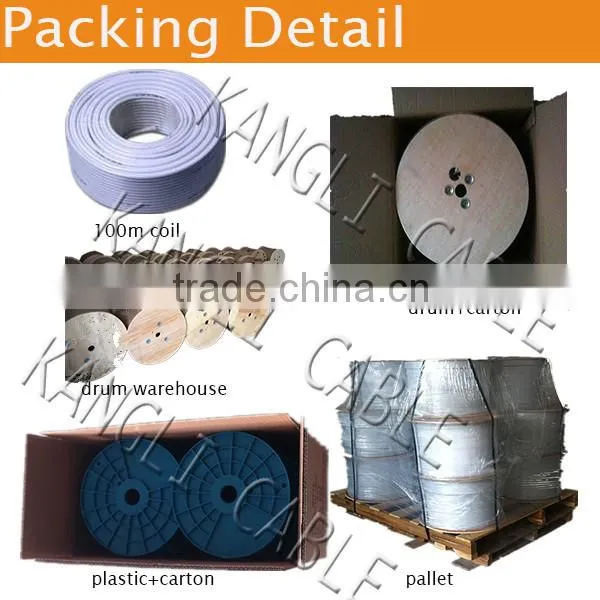

Packing and Shipping:
Team show:
FAQ:
♦What kind of cable do you produce?
•We specialize in producing coaxial cable, lan cable, telephone cable, speaker cable, alarm cable ,etc.
♦What is your MOQ?
• Normally, the MOQ is 10km.
♦What is your delivery time?
• Normally, our delivery time is 15 days after received deposit. It is base on the quantity of the order.
♦What is your payment term?
• Normally, we accept T/T. Other payment, we can negotiate with customers.
♦What is your quality?
• We have special quality control department to ensure our good quality
♦Can your factory customize cables basing on customer's sample?
• Yes, we can. OEM/ODM is available.
♦ I can't find what I want. Can you help me?
• Yes. Please contact us, we will do our best to help you.
