Home > Electrical & Electronics > Connector & Terminals > Terminals > Wind Turbine Slip Rings : Megawatt Grade HTW190-8
Wind Turbine Slip Rings : Megawatt Grade HTW190-8
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Hangzhou Grand Technology
Model Number:
HTW190-8
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Custom Made Specialized Slip Ring : Electrical and Pneumatic Hydraulics Hybrid Slip RingsNegotiableMOQ: 2 Pieces -
Wind Power Ring Electric Conductive Slip Ring, 6 Circuit,swivelUS$ 2 - 70MOQ: 1 Set
-
Capsule Slip RingUS$ 2 - 70MOQ: 1 Set
-
HM-022A Slip Ring Electric Conductive Slip Ring, 6 CircuitUS$ 3 - 70MOQ: 1 Set
-
Factory Price, Hot Sales Slip Ring,wind Turbine Slip RingUS$ 2 - 70MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
Hangzhou Grand Technology
Model Number
HTW190-8
| Electrical Parameters | |
| Circuit | 8 |
| Rated Current | 100A/ring,5rings;2A/ring,3rings |
| Rated Voltage | 0-400VAC/240VDC |
| Insulation Resistance | ≥500MΩ/1000VDC |
| Power Dielectric Strength | 2000VAC@50Hz,60s |
| Signal Dielectric Srrength | 500VAC@50Hz,60s |
| Contact Material | Precious Material |
| Electrical Noise | ≤10mΩ |
| Machinery Technology Parameter | |
| Operating Speed | 0-30rpm |
| Structure Material | Q235-A& Engineering Plastic |
| Working Temperature | -40℃~+80℃ |
| IP Rating | IP65 |

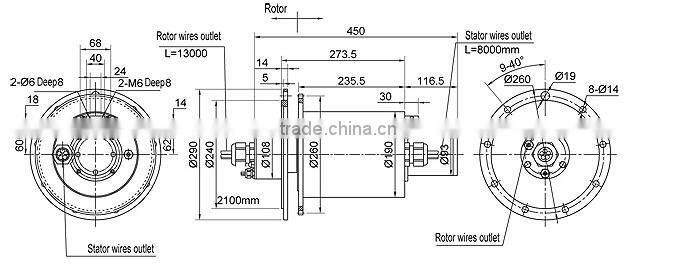

Outline dimesion unit
