Capsule Slip Ring

• Smaller appearance, convenient installation
• Multichannel signal transmission, the anti-interference design
• Double gold rail contact design - long life
• Easy dial tdesign-Harting connector
• According to different environment,it's equipped with the temperature controller
• According to China's actual use environment, it is increased seal design,In this  case, the product is free maintenance.
• Longer using time

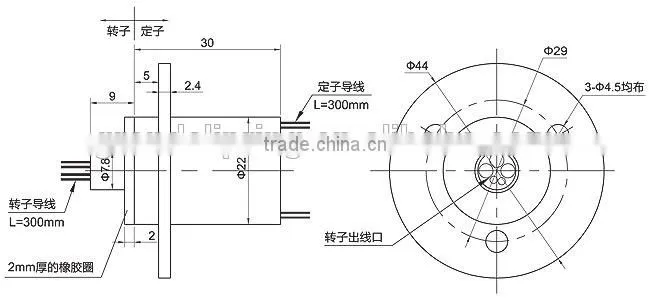

wind power slip ring specification:

1.electrical parameter

2.Mechanical parameter

3.Typical application

uElectrical test equipment

uManufacturing and process control equipment

uIndexing tables, Cable reels

uRobotics, rotary sensors, urgent illumination equipment

uExhibit / display equipment

uCCTV pan

uLaboratory equipment

uAviation, military, marine and medical equipment

uWind generator

4.Benefits

uCompact for ease of incorporation in small mechanisms.

uOutstanding signal handling capability to transfer the most demanding communication protocols

5.Option

uOperation speed, current &voltage

uConnector

uNo. of circuits

uHousing material

uPosition of wire outlet

uProtection level (dust and water)

uPower ring with 5A and 10A is available upon 2A rings combination

uCompatible with digital signal and analog signal such as RS series signal, data bus protocols, Ethernet signal and so on.

 Installation Guide

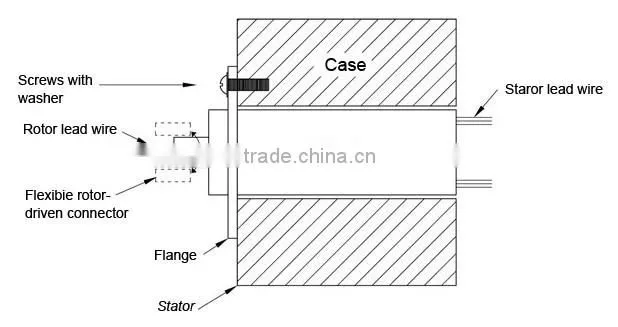

1. Capsule slip ring is designed for being installed with flange on a sleeve bracket.
2. Rotor must be concentric driven by a flexible link (such as plastic tube or screw tube). Rotor lead wire can do as this driver at limited-speed.
3. As the photograph shows, screws with washer can be used to install slip ring, these washers can avoid flange too tight.

Attentions:

1. Slip ring can not support the weight of equipment which connects with it, rotating equipment should be fastened so that its weight will no fall on the rotor.
2. Slip ring should be used in dry, low dust environment. If used outdoor, shield is necessary.
3. The surface of lead wire should avoid being damaged while equipment rotating, all lead wire can not bear weight while you put the lead wire in order.
4. No damaging the surface of lead wire while barking its end.

Grand is located Hangzhou, the most beautiful city in China. Our plant covers an area of 3,000 square meters and has 148 employees. Grand specializes in a wide range of military and civilian slip rings which are positioning at medium and high-end market. Grand achieved the international certificates of ISO9001:2008, CE and RoHS, and we control quality strictly basis specified certification standard to ensure that our each product comes stable and good quality.

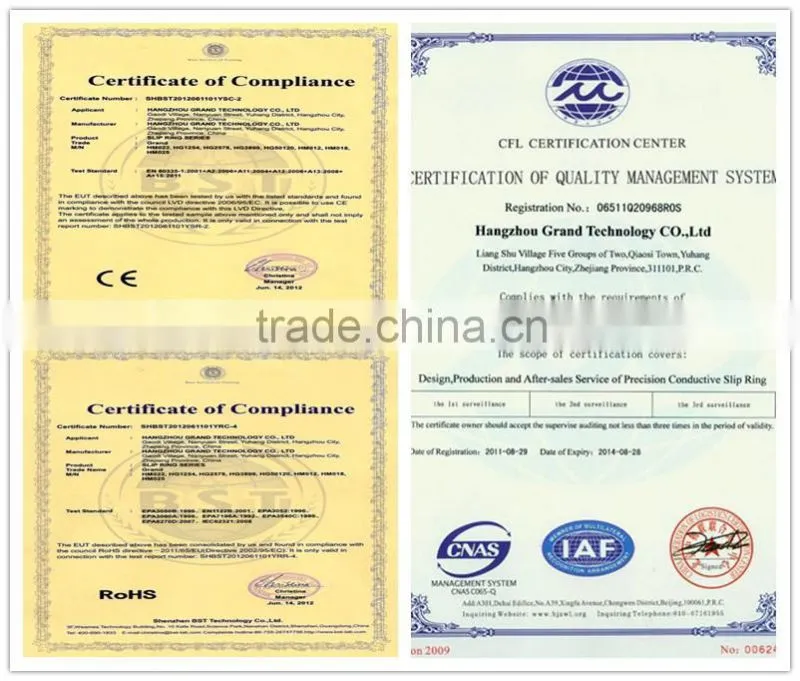

Certificate:
