Help CenterWind Turbine Slip Rings : Kilowatt Grade HMT2578-3
Related Products
-
Wind Turbine Slip Rings : Kilowatt Grade HMT50120-3NegotiableMOQ: 10 Pieces -
Wind Turbine Slip Rings : Megawatt Grade HTW148-18-2MWNegotiableMOQ: 5 Pieces
-
Wind Turbine Slip Rings : Megawatt Grade HTW190-8NegotiableMOQ: 10 Pieces
-
Custom Made Specialized Slip Ring : Electrical and Pneumatic Hydraulics Hybrid Slip RingsNegotiableMOQ: 2 Pieces
-
Wind Power Ring Electric Conductive Slip Ring, 6 Circuit,swivelUS$ 2 - 70MOQ: 1 Set
Description
Slip rings of HG series can be used to mount the slip ring on a bracket or used for routing space for hydraulics.Multi-contacting can ensure contacting reliable with low wear.The through hole can be from 2.0mm to 1000mm.
Features
Suffice 360 degree unrestrained continuous rotation
to transmit power or data.
Maintenance free
Operating smoothly and reliability
Extremely low electrical noise Precious metal contact ensures long life-span
Convenient to assembly Modularized design and also provide customized solutions.
Compatible with data bus protocols
Typical applications
| Electrical test equipment | Exhibit / display equipment |
| Manufacturing and process control equipment | Laboratory equipment |
| Indexing tables, Cable reels | Camera system |
| Robotics, rotary sensors, urgent illumination | Aviation, military, marine and medical |
| equipment | equipment |
Options
| Operation speed, current &voltage | Housing color |
| Flange mounting | Position of wire outlet |
| Connector | Wire length |
| No. of circuits | Protection level (dust and water) |
| Housing material | Signal,power and data transmitted or |
| Inner diameter | combination transmitted |
| Electrical data | |
| Rated Voltage | 380VAC/240VDC |
| Rated Current | 20A or 40A |
| Insulation Resistance | 1000MΩ/500VDC |
| Dielectric Strength | 1000VAC@60Hz,60s between each circuit |
| Electrical Noise | <0.01Ω |

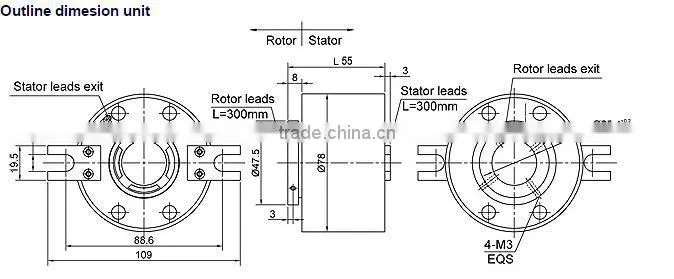

| Lead length | Standard 300mm |
| Mechanical data | |
| Operating Speed | 0-800rpm |
| Working Temperature | -40℃ - +80℃ |
| Working Humidity | 75%RH or higher |
| Contact Material | Precious Metal |
| Bearing | Steel ball bearings |
| Structure Material | Engineering Plastic or Metal |
| Torque | 0.1N/m for 6 rings, 0.03N/m increased for every 6 rings added. |
| IP Rating | IP54 |
| Operational life |
≥ 50,000,000 cycles (Depends upon working temperature, rotating speed, environment and continuous working time) |

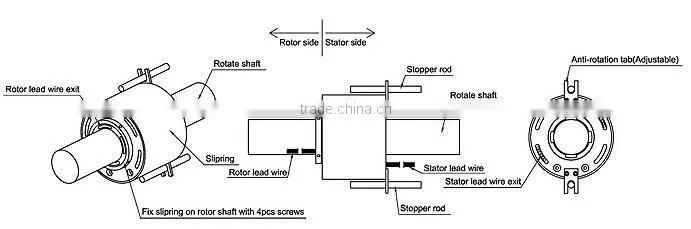

Installation Guide
1.Position the slip ring in the desired location and tighten four screws to shaft.
2.Route the wiring and make the necessary connections,fasten the anti-rotation tab.
