Help CenterOutdoor Full Color P16 Led Video Screen
Related Products
-
P6 P8 P10 New Free Massage Video Outdoor Advertising Led Display ,p6 Led Video Wall Led ScreenUS$ 1 - 1,999MOQ: 1 Square Meter -
P10 Outdoor Full Color Cinema Led ScreenNegotiableMOQ: 1 Set
-
Outdoor Waterproof P10 Advertising Led Display Screen / Led Light Module RgbUS$ 455 - 629MOQ: 1 Square Meter
-
Hidly Brand Green Color P10,p16,p20,p25 Outdoor Led Adverstising Screen/full Color Led Dance Floor P16US$ 1 - 650MOQ: 1 Square Meter
-
P16 Outdoor LED Display Advertising Sign /led Curtain Digital BillboardUS$ 1 - 640MOQ: 1 Square Meter
Outdoor series
| Model | FOX-P6 | FOX-P8 | FOX-P10 | FOX-P12 | FOX-P16 | FOX-P20 | FOX-P25 |
| LED Type | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| LED driving method | 1/4 dynamic scan | 1/4 dynamic scan | 1/4 dynamic scan | 1/4 dynamic scan | Static | Static | Static |
| LED board size(mm) | 192*192mm | 256*128mm | 160*160mm | 192*192mm | 256*256mm | 320*160mm | 200*200mm |
| Board Pixels | 32*32 (W*H) | 32*16(W*H) | 16*16(W*H) | 16*16(W*H) | 16*16(W*H) | 16*8(W*H) | 8*8(W*H) |
| Module weight | 0.78kg | 0.60kg | 0.42kg | 0.75kg | 0.92kg | 0.81kg | 0.82kg |
| Normal Cabinet size | 960*960mm | 768*768mm | 960*960mm | 960*960mm | 1024*1024mm | 960*960mm | 800*800mm |
| Cabinet area | 0.92 sq.m | 0.59 sq.m | 0.92 sq.m | 0.92 sq.m | 1.05 sq.m | 0.92 sq.m | 0.64 sq.m |
| Net weight | 43kg | 38kg | 43kg | 44kg | 48kg | 45kg | 44kg |
| Pixel density | 27777dots/sq.m | 15625dots/sq.m | 10000dots/sq.m | 6944dots/sq.m | 3906dots/sq.m | 2500dots/sq.m | 1600dots/sq.m |
| Brightness | ≥6000 cd/sq.m | ≥7000 cd/sq.m | ≥7000 cd/sq.m | ≥6000 cd/sq.m | ≥6000 cd/sq.m | ≥5500 cd/sq.m | ≥5500 cd/sq.m |
| Power | AC220/110 ± 10%, 47~63Hz | ||||||
| Water proof | Front IP65/Rear IP43 | ||||||
| Consumption | ≤1500W/sq.m | ||||||
| Viewing angle (W*H) | 140° / 70° | ||||||
| Operating temperature | -20ºC to +80ºC | ||||||
| Operating humidity | 10% to 95% | ||||||
| Lifetime (50%brightness | 100,000 hours | ||||||
| Refresh rate | 4200 Hz | ||||||
| Brightness level | Manual 100 levels,automatically 16 levels. | ||||||

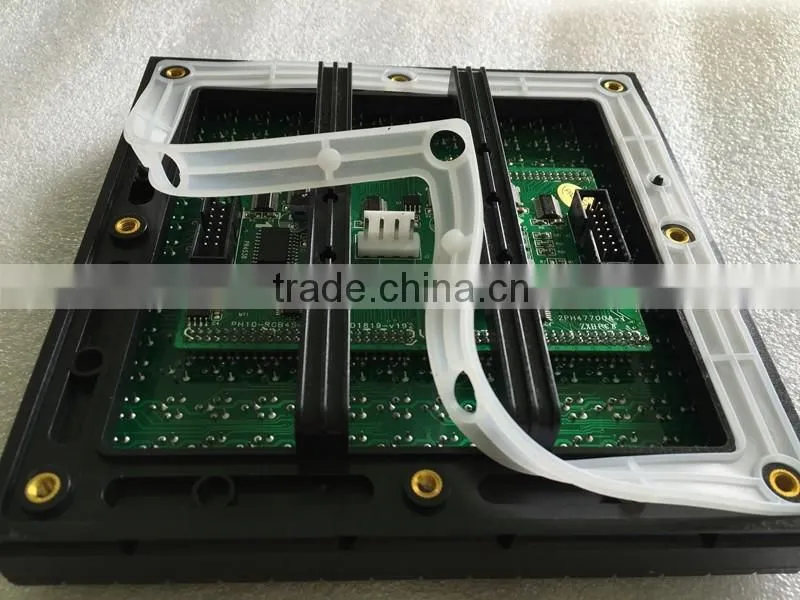

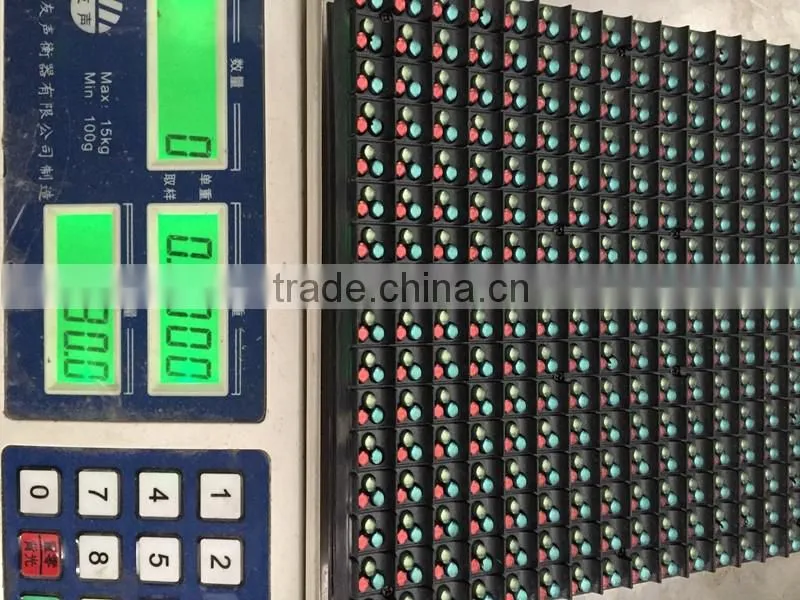

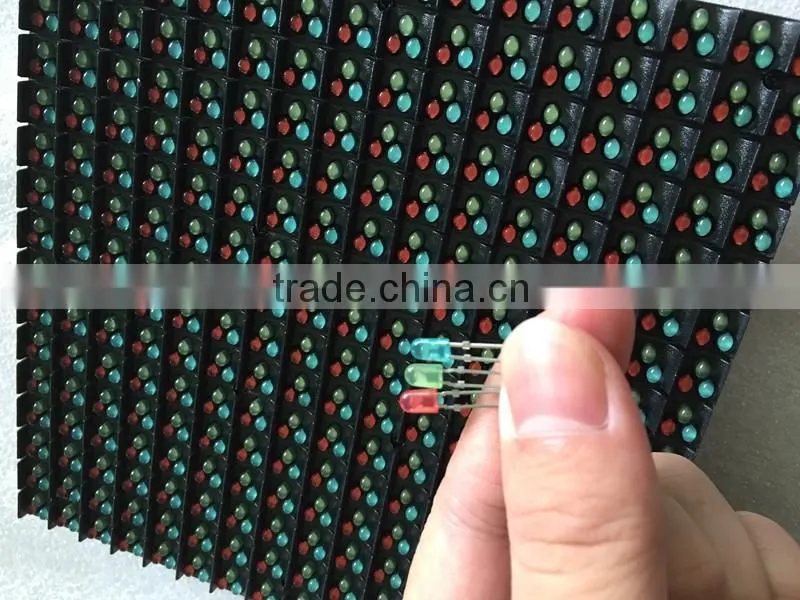

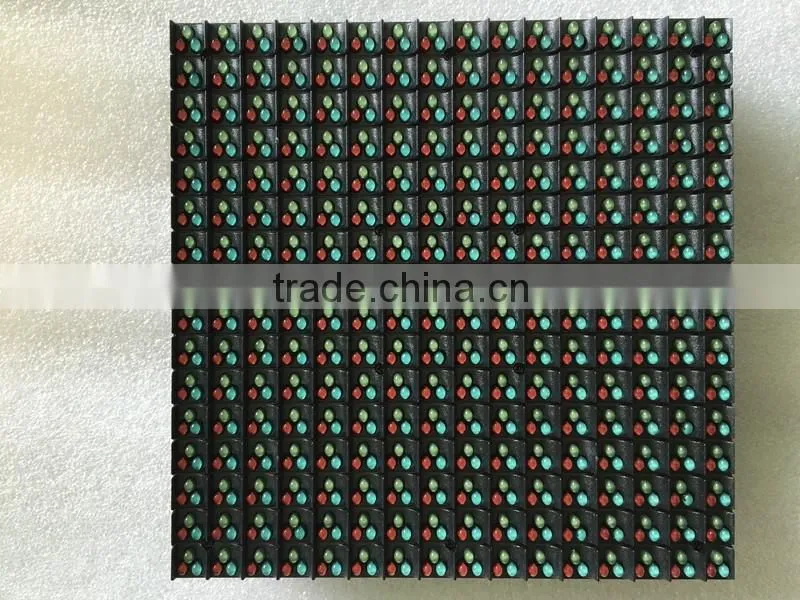

Module
Cabinet
Screeen
Trade Terms:
Payment terms: |
35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
Packing: |

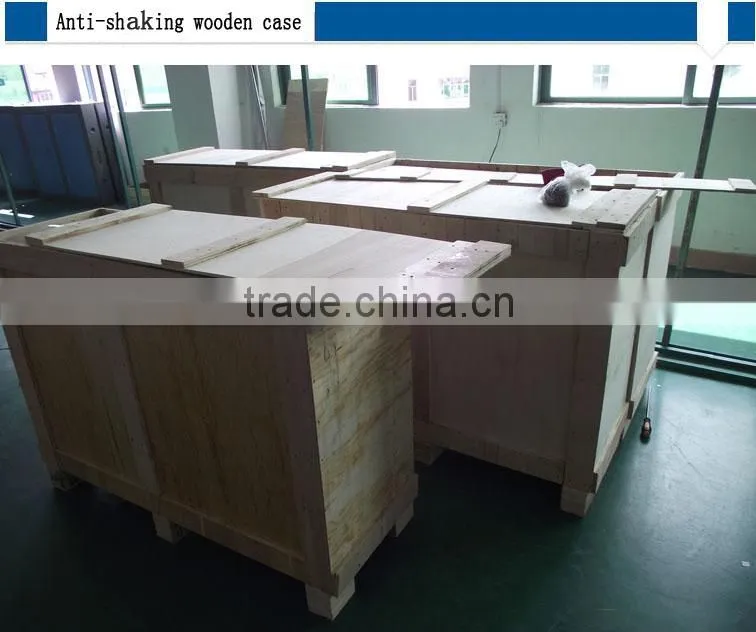

-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
Shipping: |
LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
After-Sales-Service: |
-Lifetime with professional engineer support. |
Delivery Time and packing:
1. Delivery time: Accomplish manufacturing within 15 days after receiving the deposit.

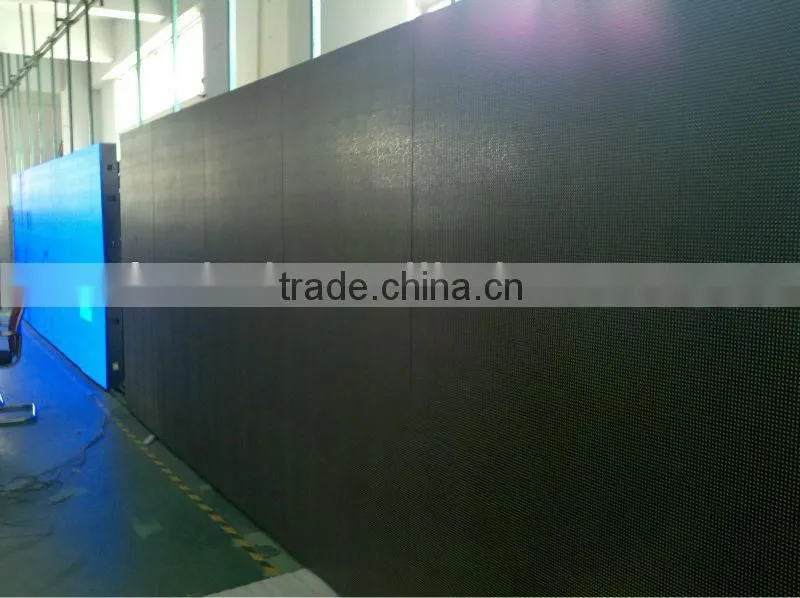

2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.

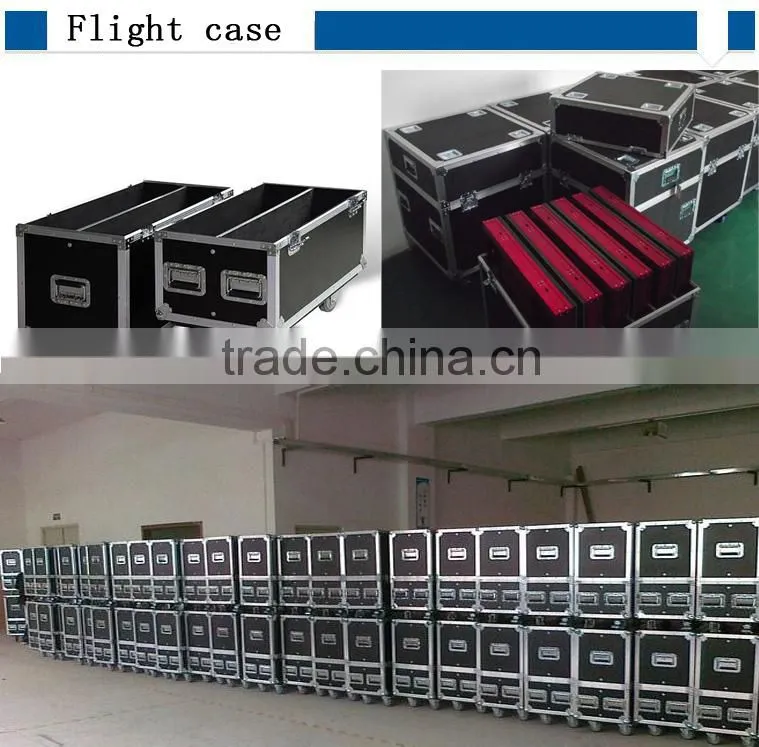

3.Package:(1)carton (2) anti-shaking wooden case (3) flight case
FAQ
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?

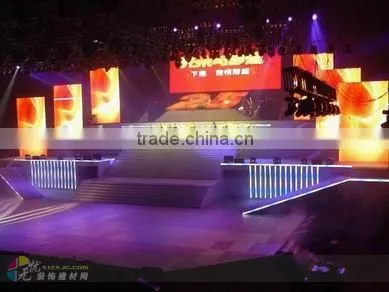

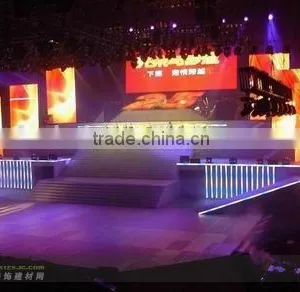

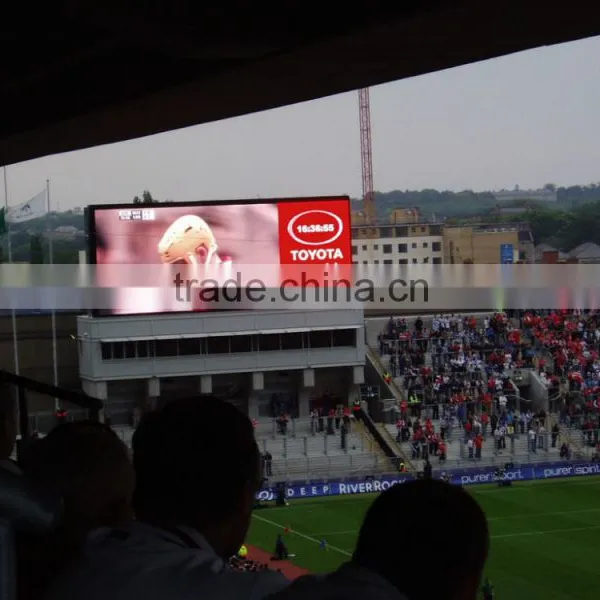

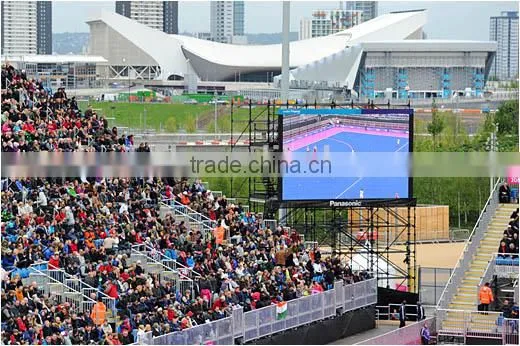

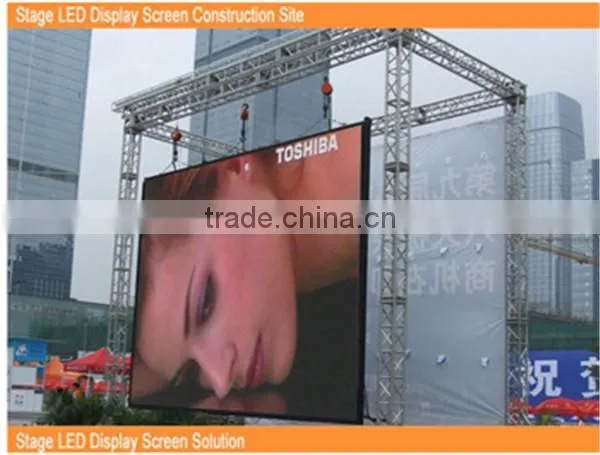

A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.

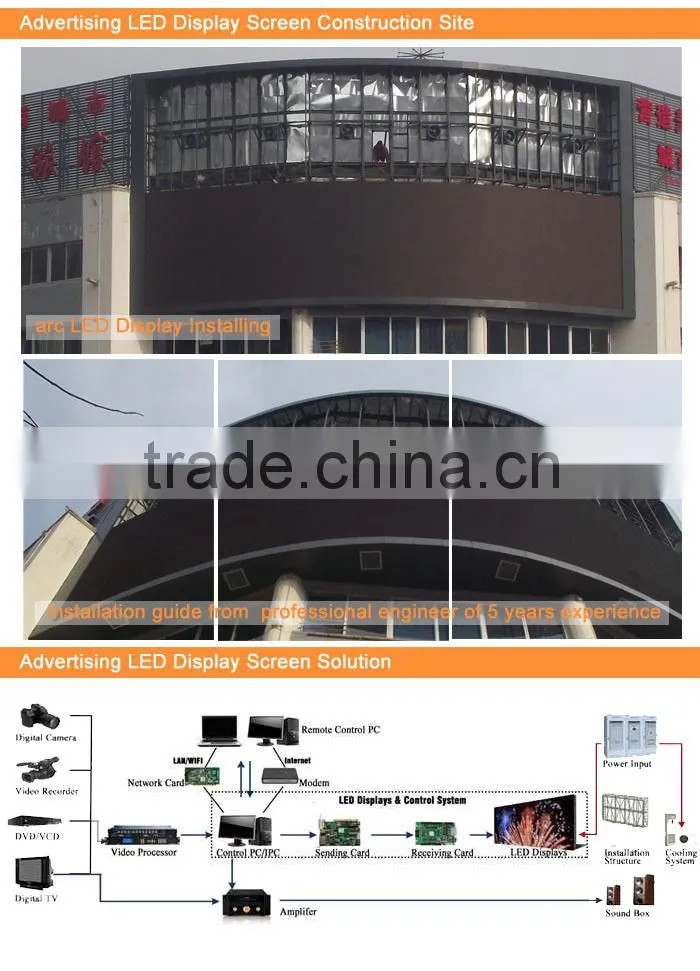

Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Q8: How about your service?
A8:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

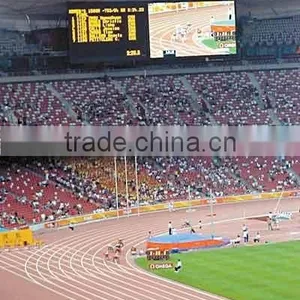

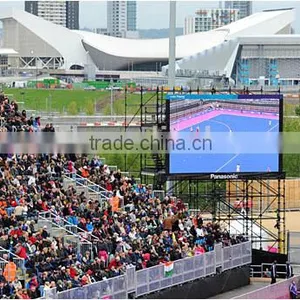

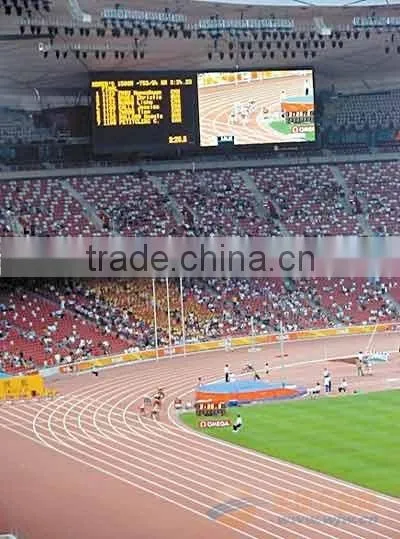

6. Special service for big project, such as stadium, exhibitions, squares and so on.
Contact us:
Winni Tang
---------------------------------
Skype:
Alibaba: cn220020078
Welcome to contact us if you need more information or have any specialized inquiry. Thank you!!!
