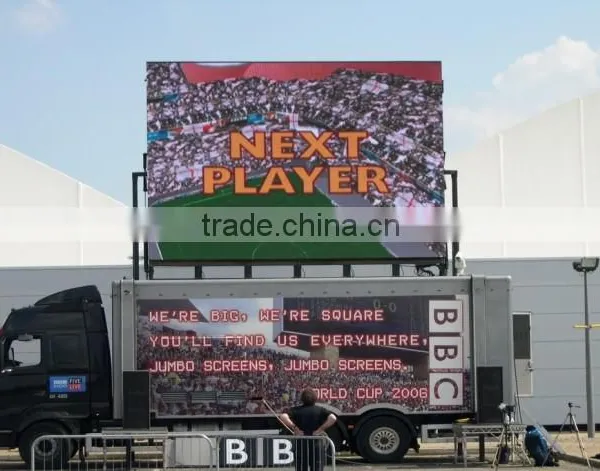

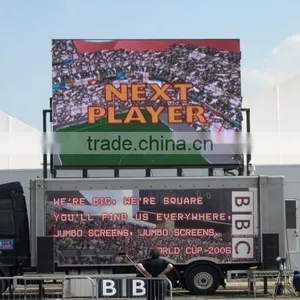

video Screen Germany football led display

Numbers

Technical indexes

Specification

1

Pixel pitch

7.625mm

2

Module size

244mm×244mm

3

Module resolution

32×16

4

Module density

17222dots/sqm

5

Pixel configuration

RGB (3 in 1 )

6

Red wavelength

625±2nm

7

Green wavelength

525±2nm

8

Blue wavelength

470±2nm

9

Colors

16777216

10

Best viewing distance

more than 6 m

11

Horizontal viewing angle

140°

12

Vertical viewing angle

110°

13

Maximum power consumption

≤500W/m2

14

Brightness

≥2500cd/m2

15

Gray scale

16bits of per color

16

Color temperature

6500K

17

Control method

Synchronization or Asynchronization

18

Driving method

1/8 scanning

19

Frame frequency

60Hz

20

Refresh frequency

≥450 Hz

21

Working voltage

AC220V/110V±10%

22

IP grade

IP31

23

Working temperature

-20°C~80°C

24

MTBF

More than 10,000 hours

25

Life span

More than 100,000hours
