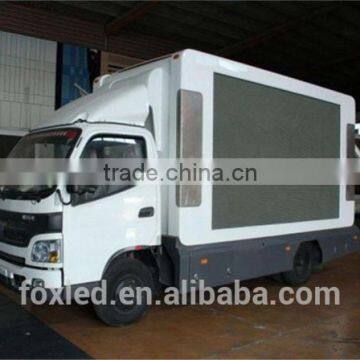

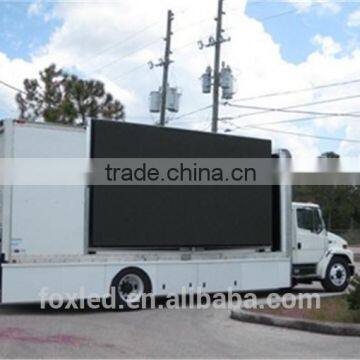

Help CenterHigh Brightness Truck Mobile Led Display Led Screen
Related Products
-
Wholesale Manufacture P10 Full Color Large Led Video Display PanelUS$ 399 - 1,200MOQ: 1 Square Meter -
Quality Hot-sale P10 Rental Led Screen OutdoorUS$ 450 - 565MOQ: 1 Square Meter
-
FOXGOLDEN Best Price P10 Outdoor Waterproof HD Led tv for AdvertisingUS$ 358 - 426MOQ: 1 Square Meter
-
Good Quality Korea Led Xxx Moving ScreenUS$ 300 - 400MOQ: 100 Square Meters
-
P6 Outdoor Full Color Advertising Led Display PriceUS$ 1,467 - 1,803MOQ: 1 Square Meter
20 full color advertising outdoor led display boar
P10 outdoor full color led display
Advantage:
1. Cabinet size customized ---960*960mm,800*800mm,640*640mm
2. Top performance- ---high brightness,vivid color
3. High quality stability ---5 years warranty.
4. Factory price ---cost-effective.
5. Waterproof ----IP65 totally waterproof
6.Structure -----free drawing,free guide installtion
Widely used environment:
Station,shopping mall,street,building,shop front door,bank,enterprice,park,high way,road sign,etc.
Unit Module |
Item |
Parameter |
Model Number |
DIP P10 LED display |
|
Module size |
160mm*160mm |
|
Pixel pitch |
10mm |
|
Pixel configuration |
10000dots/m2 |
|
Pixel resolution |
16dots(W)*16dots(H) |
|
Max Power consumption |
26W |
|
Module thickness |
2.5CM |
|
Weight |
0.42kg |
|
Drive type |
Constant drive |
|
Scan mode |
1/4 scan |
|
Port type |
HUB75B |
|
Brightness of white balance |
≥7500cd/m2 |
|
LED Cabinet |
Dimension |
960mm*960mm |
Quantity of Module |
36 |
|
Power supply |
5V/40A 5V/60A |
|
Pixel per cabinet |
96*96 |
|
Best viewing distance |
8M~250M |
|
Best viewing distance |
160°(W) 120°(H) |
|
Temperature |
storage:-35℃~+85℃ working:-20℃~+80℃ |
|
Operation humidity |
10%-95% |
|
Power |
Working voltage |
AC220V±10% |
Average Power consumption |
200W/H |
|
Max.Power consumption |
600W |
|
Current |
≤20mA(single LED) |
|
Control system |
CPU |
Pentium4 or above P4 |
Operation system |
XP/WIN7/8 |
|
Control method |
Synchronization |
|
Main technical parameter |
LAMP |
EPISTAR |
Driving device |
MBI5024 |
|
Refresh frequency |
≥600HZ |
|
Grey scale/colors |
256levels of each color(RGB)/16.7M colors |
|
MTBF |
≥100000hours |
|
Power switch |
Automatic switch |
Guaranttee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.
CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
Foxgolden been in led display industry for 11 years,professional led display manufacturer,Alibaba 7 years golden supplier.
Foxgolden involved R&D,producing,sale together,we are top 10 most competive led display company in China.
Since 2004, about 92 countries have Foxgolden led displays projects.
We are old, we had a lot of led display experence.
We are young, we are creative,can give our client best solutions.
Led display Projects:
Contact:Richard
MP:0086 15875580183
trade manager:cn203931000
whatsapp:+86 15875580183
skype:
email:salese@foxgolden. com
Foxgolden Group Ltd
Address: No.57,Shuitian Fourth Industrial Park,Shiyan Town,Baoan District,Shenzhen City,China
Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA /SGS/ISO.
The best quality products and excellent service will be provided to you by our professional team.
