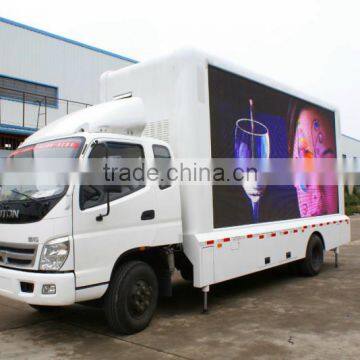

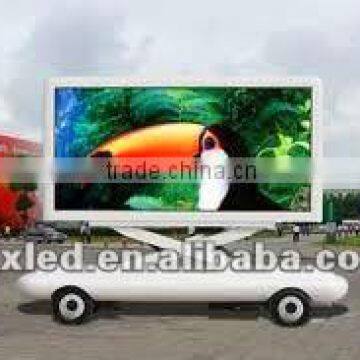

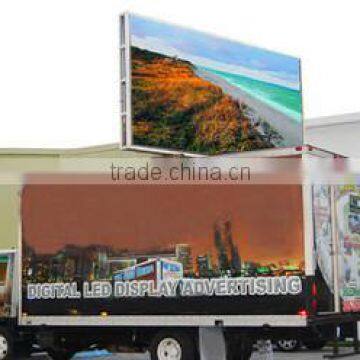

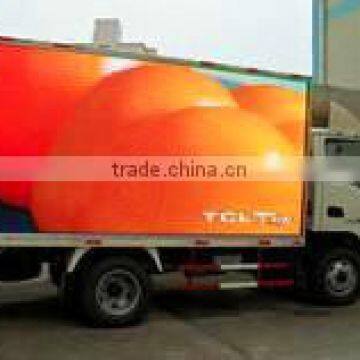

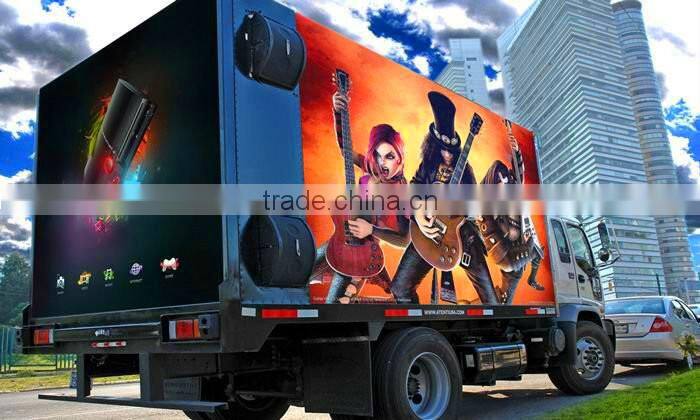

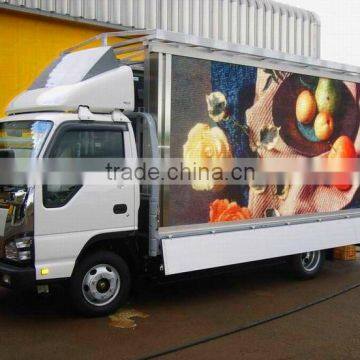

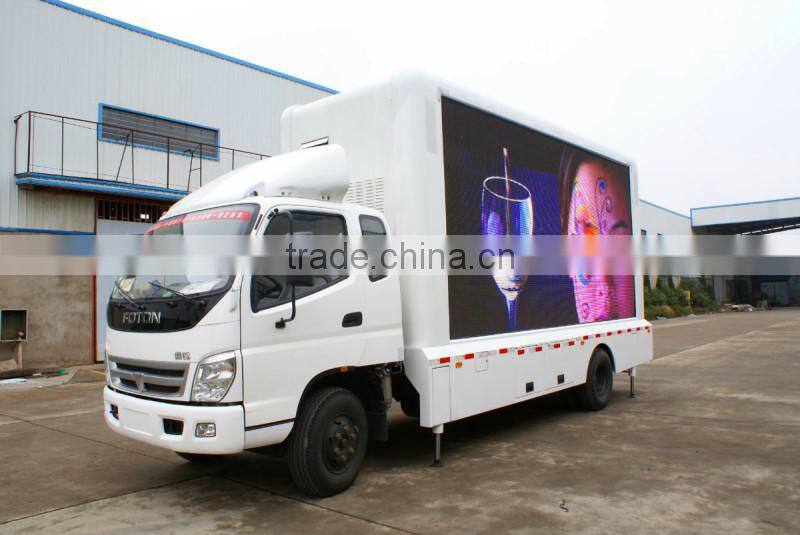

Help CenterFull Color p8 Outdoor Three Sides Truck Led Display Board
Related Products
-
P10 Full Color Mobile Truck Led DisplayUS$ 1,000 - 1,600MOQ: 1 Set -
CE RoHS ETL Stand Alone Pole Commercial Display P6 Outdoor LED ScreenUS$ 668 - 1,998MOQ: 1 Square Meter
-
Mobile Billboard P10 Flexible LED DisplayUS$ 9.5 - 11MOQ: 1 Square Meter
-
P16 Full Color Outdoor LED Screen/LED Display ,1/4 Scan,high BrightnessUS$ 520 - 635MOQ: 1 Square Meter
-
p5 Bus HD Led Display Board for Showing Destination and Route NumberUS$ 580 - 680MOQ: 1 Square Meter
| Outdoor P8 DIP Full Color LED Display Screen (Specification) | ||
| No. | Item | P8 |
| 1 | Pixel pitch | 8mm |
| 2 | Module size | 256mm*128mm |
| 3 | Module resolution(dots) | 32*16 |
| 4 | Pixel configuration | 1R1G1B |
| 5 | Pixel density | 15625dots/m² |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | ≥8m |
| 11 | Horizontal view angle | 120° |
| 12 | Maximum power consumption | <650W/m² |
| 13 | Brightness | ≥8000cd/m² |
| 14 | Gray scale | 16 bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization&Asynchronization |
| 17 | Driving method | 1/4 scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | ≥1920Hz |
| 20 | Working voltage | AC220V/110V±10% |
| 21 | IP grade | IP65 |
| 22 | Working temperature | -35°C~85°C |
| 23 | MTBF | >10,000 hours |
| 24 | Life span | >100,000 hours |
Payment terms: |
35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
Packing: |
-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
Shipping: |
LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
After-Sales-Service: |
-Lifetime with professional engineer support. problem |
FOXGOLDEN GROUP LTD ()is a professional high quality LED display manufacturer. Since 2004,we have been dedicating to the aim that producing high quality products, andnow FOXGOLDEN has been well integrated in terms of R&D, produce, project, capital and marketing.
As one of the professional manufacturers of LED industry, FOXGOLDEN Group Limited has a high quality, professional and strong production team, market-oriented, constantly innovate based company not only manufacturing technology in traditional LED display screen, constantly improve product cost benefit and market competition, but in the special use of the display technology has a breakthrough. The absolute performance and competitive price to the perfect combination, the LED display screen to every corner of the world, the market at home and abroad to win wide reputation.
At present, Foxgolden Group Limited has formed a series of LED display products: outdoor LED display, indoor LED display, portable LED screen, foldable LED screen, soft LED screen rental LED display, stadium LED display, small pitch pixel LED display etc..
We have 11-year production experience. We have 11-year design experience of offering solution, installation, and after-sales service, etc. Faced with a variety of requirements, we offer flexible diverse solutions. We offer 24-hour all-direction online service. We achieve customer complaint rate below 0.1% and win widespread high praise and good reputation from customers and public.
1. Guarantee
(1) We guarantee all our displays, modules, parts for 2 - 5 full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?
A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Q8: How about your service?
A8:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
