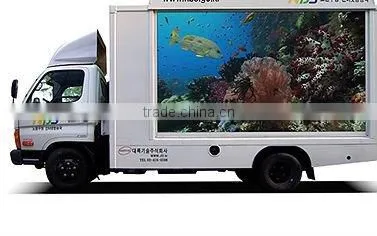

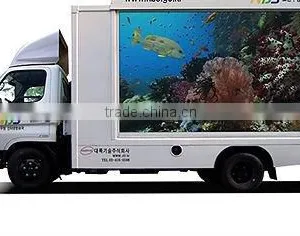

Help CenterOutdoor Mobile Led Display Truck Outdoor Mobile Led Display Screen Truck Led Display Board
Related Products
-
2016 Hot Sales P5 / P6 Outdoor Full Color Taxi Top Double Side Led DisplayUS$ 1,200 - 1,600MOQ: 1 Set -
Hot Sale Customized P10 Mobile Trailer Led SignUS$ 799 - 999MOQ: 1 Square Meter
-
High Quality New Images Video Xxx P10 Led Ceiling Lights Shanghai ChinaUS$ 799 - 999MOQ: 1 Square Meter
-
High Quality New Images hd P10 Full Xxx Video OutdoorUS$ 799 - 999MOQ: 1 Square Meter
-
High Quality New Images Video Xxx P10 Small Solar LightsUS$ 799 - 999MOQ: 1 Square Meter
Specification
Description |
Technical parameter |
|
LED lamp |
Red(Epistar) |
620-625nm |
Pure Green(Silan) |
525-535nm |
|
Pure Blue(Silan) |
460-475nm |
|
Unit module |
Module size |
192*192mm |
Pixel pitch |
12mm |
|
Pixel density |
6944dots/m2 |
|
Pixel configuration |
1R1G1B |
|
Led specification |
Φ3ellipse |
|
Pixel resolution |
W:16dots*H:16dots |
|
Cabinet |
Dimension |
1024mm*1024mm*120mm |
Quantities of module |
16pcs |
|
Power supply |
4pcs |
|
Thermal discharge |
Fan*2pcs |
|
Total weight |
60kg |
|
Best viewing angle |
12-300m |
|
Temperature |
Storage: -35degree~+80degree |
|
Working: -30degree~+80degree | ||
Thickness |
12cm can adjustable |
|
Remarks: cabinet size can changed, upon project need. | ||
Power |
Working voltage |
AC220V/110V±10% |
Average power consumption |
450W |
|
Max. Power consumption |
≤900W/sqm |
|
Current |
≤20mA(single LED) |
|
Control system |
CPU |
Pentium4 or above |
Operating system |
WIN98/2000/XP |
|
Control method |
Synchronization |
|
Main technical parameter |
Driving device |
Static |
Drive type |
Constant Current driver IC |
|
Refresh frequency |
≥400Hz |
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
Brightness of white balance |
More than 9000cd/sqm |
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
Operating ambient humidity |
10%--95% |
|
Video signal |
PAL/NTSC |
|
Control system |
DVI display card+full color controller card |
|
MTBF |
≥10,000hours |
|
Life span |
≥100,000hours |
|
Flatness |
Tolerance of interpixel ≤0.3mm |
|
Tolerance of modules clearance≤0.6mm | ||
Power switch |
Automatic switch |
|
Display mode |
1024*768 |
|
Software |
LED media player |
|
P16 outdoor full color LED Digital adopts full automatic production, The product has high reliability, saturated and uniform color, high brightness, low consumption, long service life, is widely used in outdoor sites, such as square, outdoor concerts, theme park, shopping mall, golf courses, and so on.
