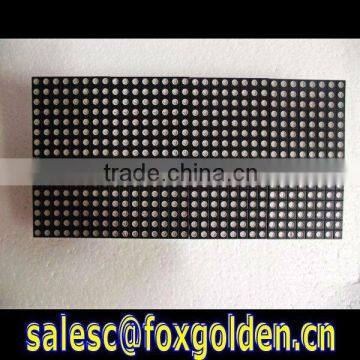

Rgb Led Module Waterproof P6 Dot-matrix 3in1 Indoor Full Color

Rgb Led Module Waterproof P6 Dot-matrix 3in1 Indoor Full Color thumbnail-1
Rgb Led Module Waterproof P6 Dot-matrix 3in1 Indoor Full Color photo-1
US$ 1,000 - 1,500 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FOXGOLDEN
Model Number:
Indoor-Dot-matrix-3in1-P6-Full color
Contact Supplier Request Quote Chat Now
Foxgolden Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name FOXGOLDEN
Model Number Indoor-Dot-matrix-3in1-P6-Full color
Usage Indoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 6mm
Specifications

1shakeproof,high-resolution,anti-dust/rust/erosion/lightning,movable,good to eliminate heat
2CE ROHS
3.2years warranty

   1.character and function

    (1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
    (2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
    (3) Clear picture without flicker and distortion.
    (4) Brightness, contrast, saturation can be adjust by itself and manual.
    (5) Show everything with your PC does synchronously.
    (6) Super correcting technology for distortion.
    (7) One interface for sound signal and two for video signal at least.
    (8) Connected and controlled by PC via Lan and remote control.
    (9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on





.Spec and Parameters

Display and Control Feature Structure Feature
Specification Parameter Specification Parameter
Pixel Pitch 6mm Module size 192mm * 192mm
Pixel composing 1R1G1B Display resolution/module 32 dots* 32 dots
Wavelength (R) 625±5 Standard cabinet size 960 mm*960mm
Wavelength (G) 522±3 Weight per sqm 50 Kg/sqm
Wavelength (B) 567±3 Protection classification ---
Wave Angle (H) 120°(H)/120°(V) Install mode Wallmount, hung and stand structure
Led package 3in1 Dot-Matrix
Density 27,777 Working Power
Display color 256*256*256 Specification Parameter
Whiteness brightness 1200 - 1500 cd/sqm Working voltage AC 220v/380v±10% 47~64Hz
Brightness level 128 grade Max power/sqm 900W/sqm
Changing frame frequency 60 Hz Average power/sqm 300W/sqm
Refresh 215/400 Hz Short circuit protection Yes
Driving method Constant driving 1/8
Control mode synchronous Working Environment
Display port DVI Specification Parameter
Display mode 1024*768 1024*1024 Environment Indoor
Out of control 1/10,000 ( scattered) Working temperature --10~50°C
lifetime (Full white-half brightness) 45,000 hours Working Humidity 10~90%













                                                         rgb led module waterproof P6 dot-matrix 3in1 indoor full color
