Product Details
| Place of Origin: | Guangdong, China | Brand Name: | FOXGOLDEN | Model Number: | P10 |
| Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
| Pixels: | 10mm | Screen Dimension: | 160X160mm |
Product Description
factory price outdoor waterproof led panel screen
Outdoor led display project:
| Model | FOX-P6 | FOX-P8 | FOX-P10 | FOX-P16 |
| LED Type | DIP | DIP | DIP | DIP |
| LED driving method | 1/4 dynamic scan | 1/4 dynamic scan | 1/4 dynamic scan | Static |
| Board Pixels | 32*32 (W*H) | 32*16 (W*H) | 16*16 (W*H) | 16*16 (W*H) |
| LED board size(mm) | 192*192*25 | 256*128*25 | 160*160mm | 256*256mm |
| Normal Cabinet size | 960*960 | 768*768mm | 960*960mm | 1024*1024mm |
| Net weight | 43kg | 38kg | 43kg | 48kg |
| Power | AC220/110 ± 10%, 47~63Hz | |||
| Water proof | Front IP65/Rear IP43 | |||
| Consumption | ≤1500W/m2 | |||
| Viewing angle (W*H) | 140° / 70° | 140° / 70° | 140° / 70° | 140° / 70° |
| Brightness | ≥6000 cd/m2 | ≥7000 cd/m2 | ≥7000 cd/m2 | ≥6000 cd/m2 |
| Pixel density | 27777dots/m2 | 15625dots/m2 | 10000dots/m2 | 3906dots/m2 |
| Operating temperature | -20ºC to +80ºC | |||
| Operating humidity | 10% to 95% | |||
| Lifetime (50%brightness | 100,000 hours | |||
| Refresh rate | 4200 Hz | 4200 Hz | 4200 Hz | 4200 Hz |
| Module weight | 0.78kg | 0.60kg | 0.42kg | 0.92kg |
| Brightness level | Manual 100 levels,automatically 16 levels. | |||

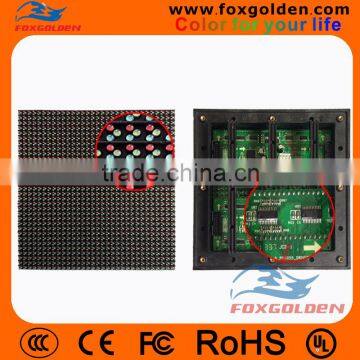

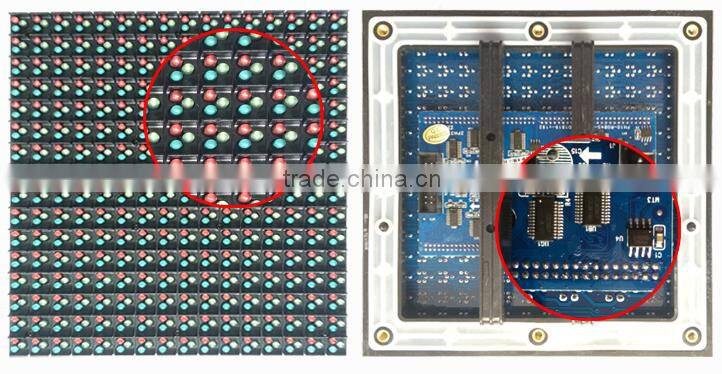

P8:

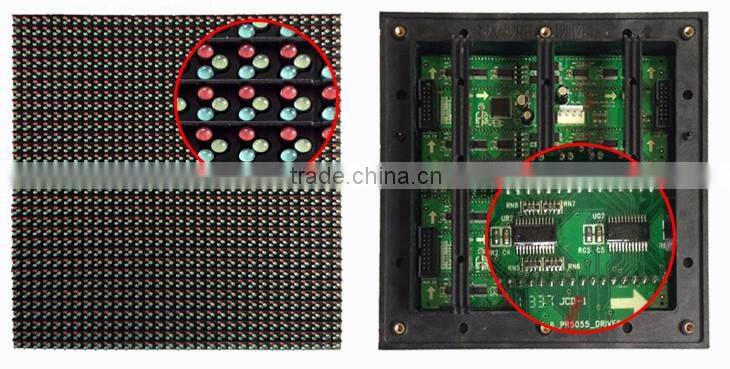

P10:
Meanwell power supply:
Well-known brand power supply , saving energy and high efficiency.
adopt Meanwell power supply, conversion ratio up to 82%, low heat dissipation and long life span. Normal power supply conversion ratio is under 80%, and high heat dissipation, not stable, low cost.
Advantage:
1. Long Time:
Lamp:EPISTAR, 5 years warranty, Working Time:15 years.
2. Save-energy:
IC: MBI5124, Working voltage: 3.3V, Save 35%, Waterproof: ip65.
3. HD perfect picture quality
High resolution brings HD perfect picture quality and it makes customer enjoy exclusive visual feast.
4. Convenient repair
Front maintenance module: finish taking place one module within 30 seconds, 3 times up to the efficiency, repair is easy and fast.

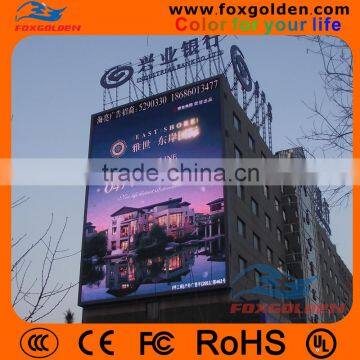

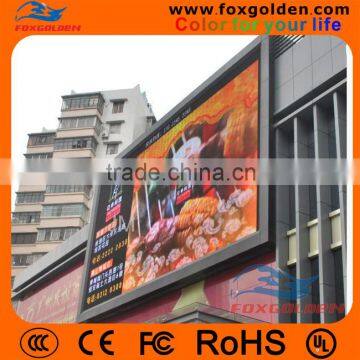

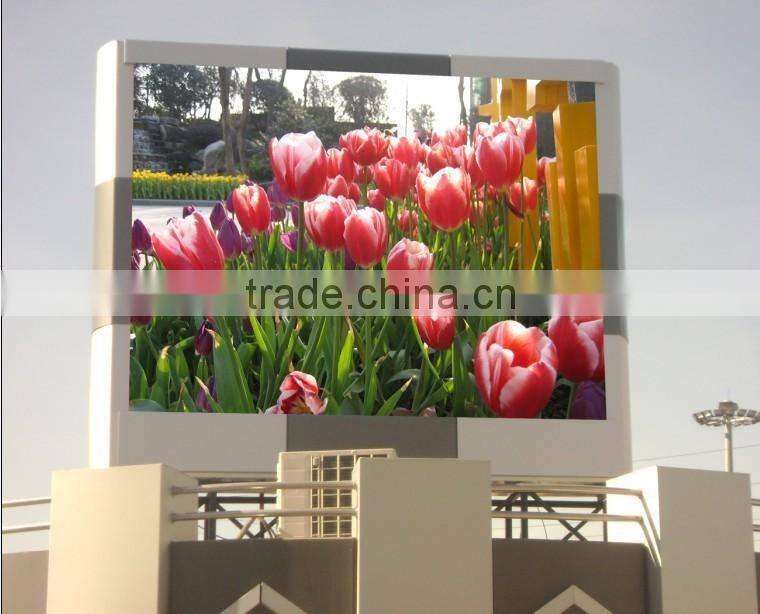

Appcations:
Carton-box :
Anti-shocking wooden case:
Flight case:
Payment terms: | 35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
Shipping: | LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
After-Sales-Service: | -Lifetime with professional engineer support for free. has quality problem |
