High Quality P10 2016 Led Video Wall Screen for Advertising

Name: High Quality P10 2016 Led Video Wall Screen for Advertising
Brand: FOXGOLDEN
SKU: 122231827

US$ 500 - 600 MOQ: 1 Square Meter

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

FOXGOLDEN

Model Number:

FOX-DIP P10-DIP

Foxgolden Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name FOXGOLDEN

Model Number FOX-DIP P10-DIP

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 10mm

Screen Dimension Customized Size

P25 led outdoor display screen :

1. In order yo ensure that image and texts are clear, vivid and consistent, all the chips for the entire RGB LED screens for

outdoor screens within 100 square meters are at the same grade such as the same brightness( ± 10%) and the same

wavelength( ± 2.5nm).

2. In order to ensure screen background can become matt, completely absorb LED reflective light and eliminate shadow

and ghosting, we adopt imported glue to varnish module surface, the glue thickness for each module is not more than

0.1mm, so the color is consistent and uniform.

3. To ensure product reliablity and long life, we strongly suggest select the best chips for all outdoor display ,like Nichia ,

Cree, Epistar, Opto brand, to get reliability.

4. Module design. Arbitrary combine of sizes, convenient to assembly, exquisite box.

5. Easy to maintain and achieve single-pixel and single-lamp maintenance.

6. High quality at competitive prices.

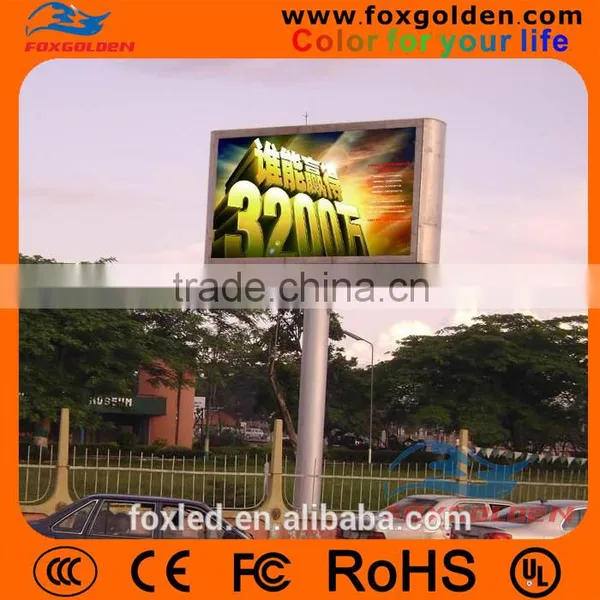

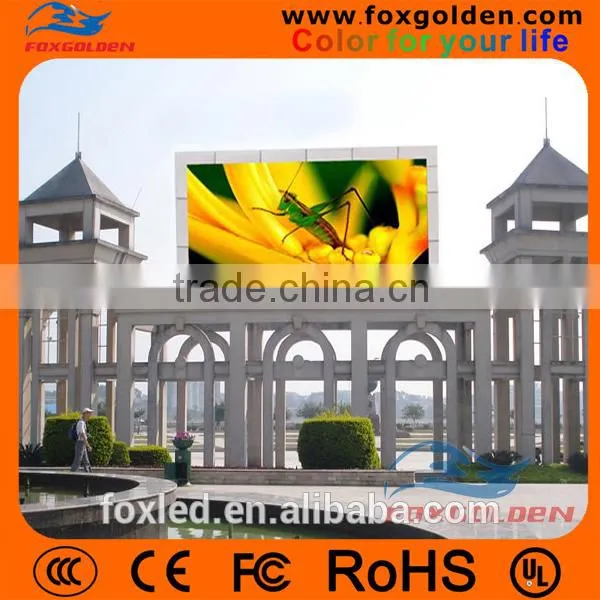

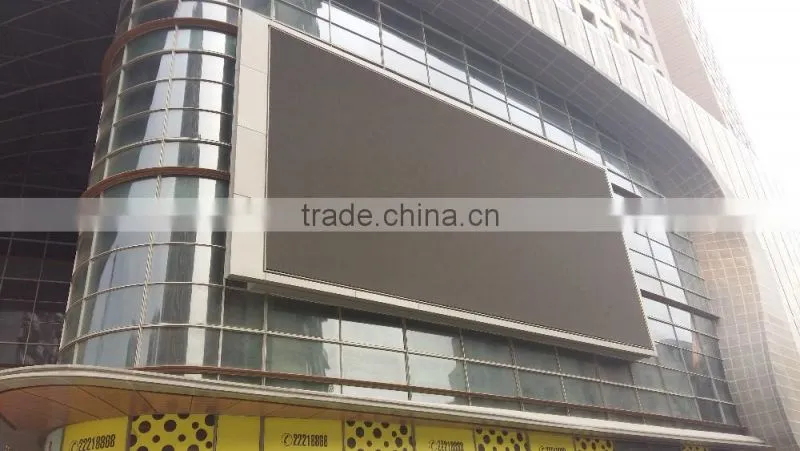

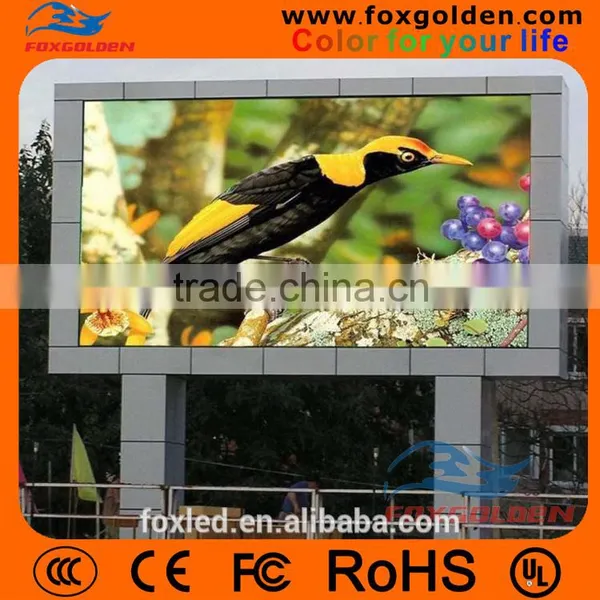

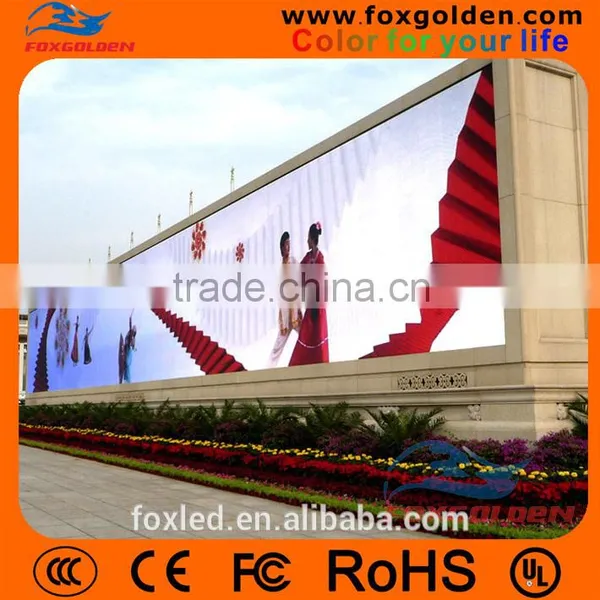

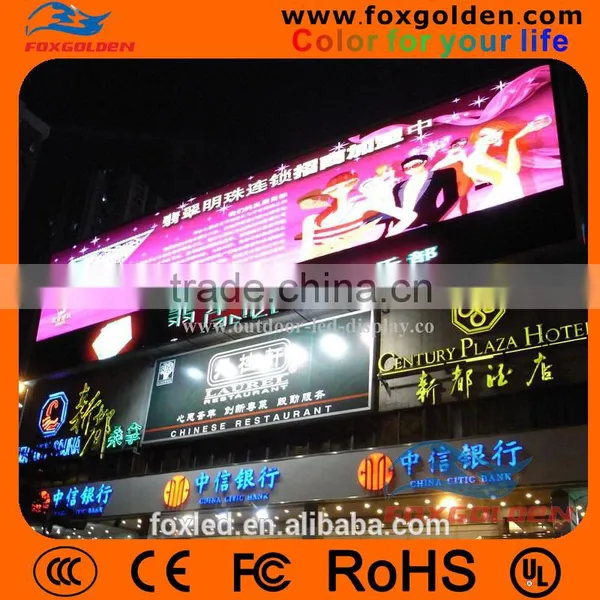

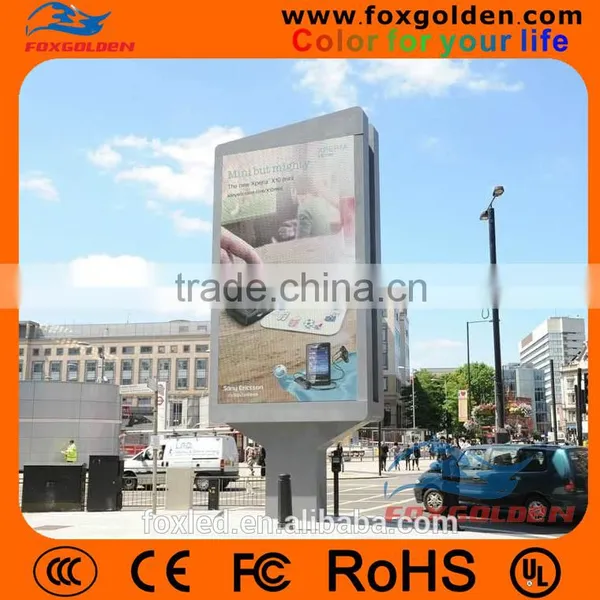

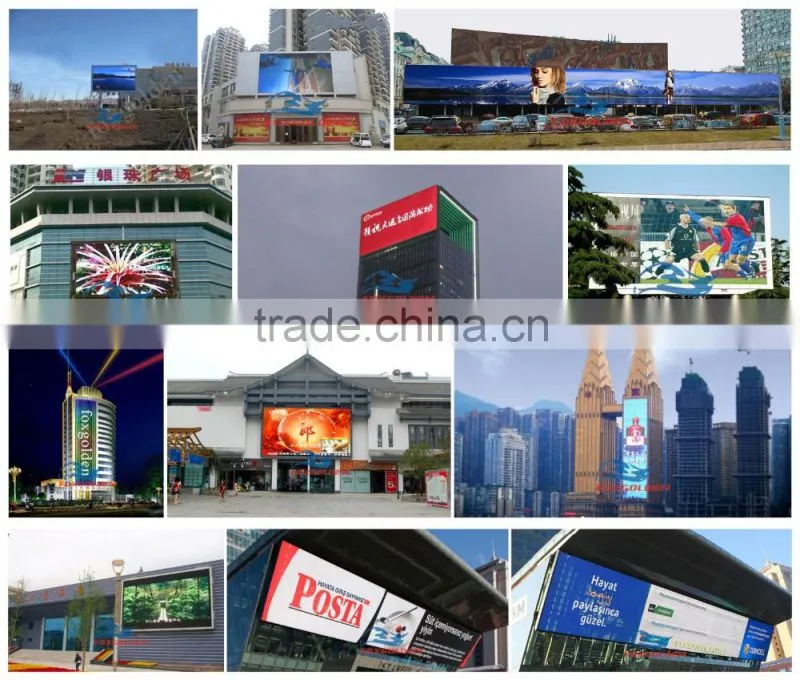

7. Wide applied in stadiums, advertisement, banks, securities exchange, station, shopping malls, postal offices, schools,

monitoring ,restaurants, entertainment, enterprises etc

P25 LED Display Screen Product :

P10 Outdoor LED Screen Technical parameter :

No.	item	P10
1	pixel pitch	10mm
2	size of unit board	160*160mm
3	resolution of unit board	16*16
4	density of pixel	10000 dots/m²
5	pixel configuration	1R1G1B
6	red wavelength	625±2nm
7	green wavelength	525±2nm
8	blue wavelength	470±2nm
9	colors	16777216
10	best viewing distance	20m--300m
11	horizontal viewing distance	120°
12	consumption	1200w/m²
13	brightness	≥ 5500 cd/m²
14	gray scale	16 bits per color
15	color temperature	8600cd/m2
16	control method	synchronization & asynchronization
17	driving method	constant scanning
18	frame frequency	60Hz
19	refresh frequency	≥ 300Hz
20	working voltage	AC220V/110V ±10%
21	IP grade	IP67
22	working temperature	-20°C~80°C
23	MTBF	>10000 hours
24	life span	100000 hours
25	control system	PCTV non-linear control card+DVI display +main controller+3G/Optical fiber transmission
26	operating system	Windows 98/XP/2000/Vista/Win7
27	control software	LED Studio
