FOXGOLDEN best price P10 outdoor waterproof HD led screen for advertising

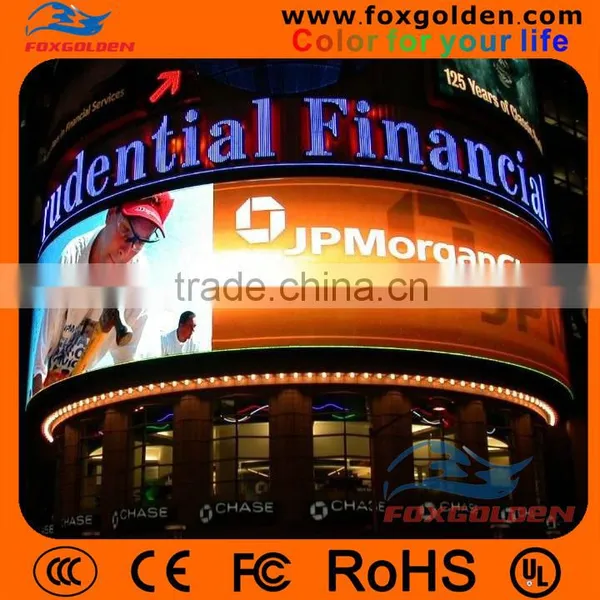

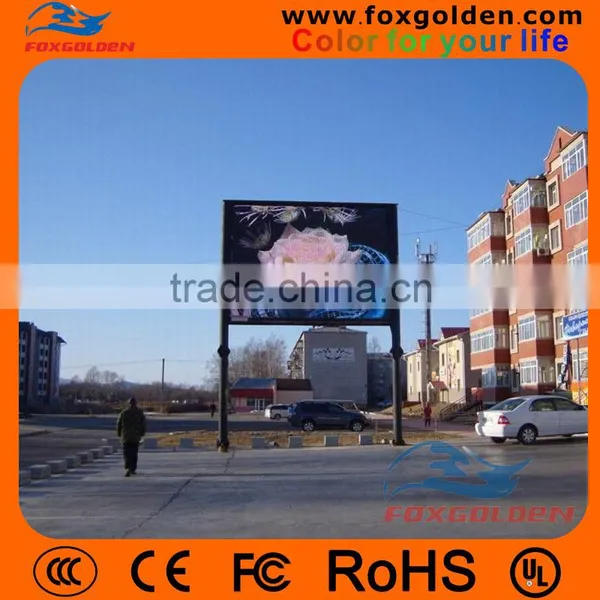

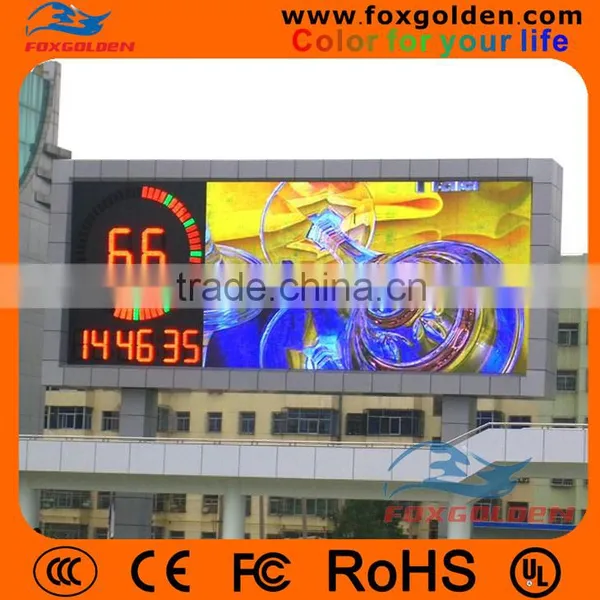

Outdoor led display project:

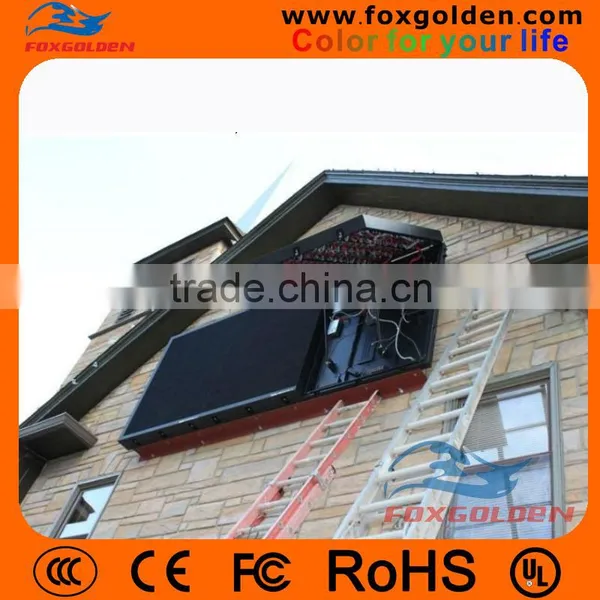

Installation:
Specification:
| Model | FOX-P4(DIP) | FOX-P6 | FOX-P8 (SMD) | FOX-P10 | |
| Module | Pixel Pitch (mm) | 4 | 6 | 8 | 10 |
| LED Lamp Model | DIP 246 | DIP 246 | SMD 3535 | DIP 246 | |
| Model Size (mm) | 256*128 | 192*192 | 32*16 (W*H) | 16*16 (W*H) | |
| Model Pixel (dot) | 64*32 | 32*32 | 256*128*25 | 160*160mm | |
| PCB Board Type | Separate Design | ||||
| Driving Mode | Constant current | ||||
| Scaning | 1/16 | 1/4 | 1/4 | 1/4 | |
| HUB Board | HUB75 | HUB08/HUB75 | HUB75 | HUB75 | |
| Cabinet | Standard Cabinet Size (mm) |
512*512*120 | 960*960*120 | 1024*1024*120 | 960*960*120 |
| Cabinet Pixel | 128*128 | 160*160 | 128*128 | 96*96 | |
| Cabinet Module Number | 4*8 | 5*5 | 4*8 | 6*6 | |
| Power Supply Specification |
5V 40A/5V 60A/5V 100A | ||||
| IP Grade | IP65-67 | ||||
| Display | Pixel Density (dot/m2) | 62500 | 27777 | 15625 | 10000 |
| Brightness (cd/m2) | ≥7000 cd/m2 | ≥7000 cd/m2 | ≥7000 cd/m2 | ≥7000 cd/m2 | |
| Max Consumption | 1000 | 1200 | 1000 | 1000 | |
| Average Consumption | 500 | 600 | 480 | 480 | |
| Best Viewing Distance (m) |
4-150 | 6-150 | 8-150 | 10-150 | |
| The Horizontal and Vertical Perspective |
120/100 | ||||
| System Specification |
Drive IC Model | MBI5124 | |||
| Control Mode | Synchronization or Asynchronization | ||||
| Max Refresh Rate | 2800 | ||||
| Max Gray Level | 8192 (13bit) - 65536 (16bit) | ||||
| Repetition Frequency (HZ/s) |
60 | ||||
| Brightness Adjustment | 256 Grade | ||||
| Signal Input (with video processor) |
HDMI, DVI, VGA, RF, S-Video, RGB, RGBH, YUV, YC&Conposition, etc | ||||
| Communication Way | Net cable/SMF(signle mode fiber)/MMF(multi mode fiber) | ||||
| Communication Distance (m) |
100/500/1000 | ||||
| Operation Parameter |
Working Voltage | AC110V/220V±10% 50HZ | |||
| Working Temperature | -20~+80 | ||||
| MTBF (MON) | 38 Months | ||||
| Life Span Time (Y) | 11 Years | ||||
Advantage:
Long Time:

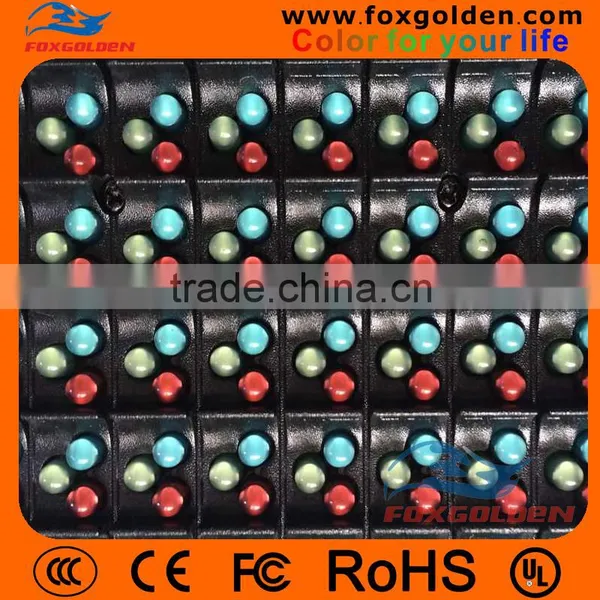

Lamp:EPISTAR, 5 years warranty, Working Time:15 years.
Save-energy:
IC: MBI5124, Working voltage: 3.3V, Save 35%, Waterproof: ip65.
Well-known brand power supply , saving energy and high efficiency.
P10 adopt Meanwell power supply, conversion ratio up to 82%, low heat dissipation and long life span. Normal power supply conversion ratio is under 80%, and high heat dissipation, not stable, low cost.

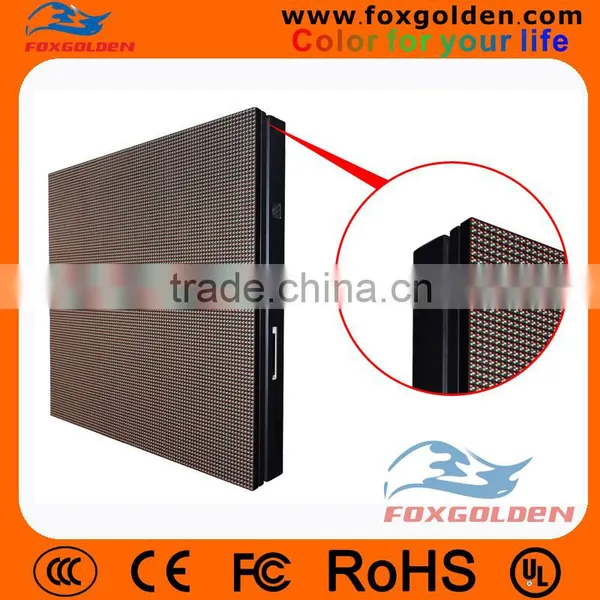

Unique guide rain trough design
same time improving cabinet strength,prevents cabinet damage during transportation.
Appcations:
Delivery Time and packing:
1. Delivery time: Accomplish manufacturing within7- 15 days after receiving the deposit.
2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
3.Package:(1)carton (2) anti-shaking wooden case (3) flight case
Payment terms: |
35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
Packing: |
-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
Shipping: |
LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
After-Sales-Service: |
-Lifetime with professional engineer support for free. has quality problem |
On Oct 10thfd, 2015, FOXGOLDEN begin to went into capital market and step into official listed company, stock code: 666153.
Thanks for 12-year customer support on FOXGOLDEN always.
Thanks for 12-year meterial supplier support on FOXGOLDEN always.
Thanks for 12-year FOXGOLDEN family constant effort and hard work.
We have 12-year production experience, We have 12-year design experience of offering solution, installation, and after-sales service, etc. According to different environment conditions, too cold temperature till -40℃ or too hot temperature till +55℃, we carefully choose different suitable materials and make the best offer for every customer. It differs in cables, LED lamps, plastic masks, waterproof materials, IC, etc. Faced with a variery of requirements, we offer flexible diverse solutions. We offer 24-hour all- direction online service.
As said by Jack Ma, the president of Alibaba group, it is the time of 3 wins. The meaning of FOXGOLDEN official website is WIN-WIN-WIN. WIN FOR CUSTOMERS; WIN FOR SUPPLIERS; WIN FOR FAMILIES. COM: COMING.
So means win-win-win, FOXGOLDEN has been coming to do it.
We are a young team, whose average age is 26.6 years old. Thanks, ercourage, and effort always accompany us. Looking back to yesterday. We live Today, and will move towards better promising Tomorrow.
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?
A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Q8: How about your service?
A8:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
---------------------------------
Email: info @foxgolden.com
Whats App: +86 15118019850
Welcome to contact us if you need more information or have any specialized inquiry. Thank you!!!
