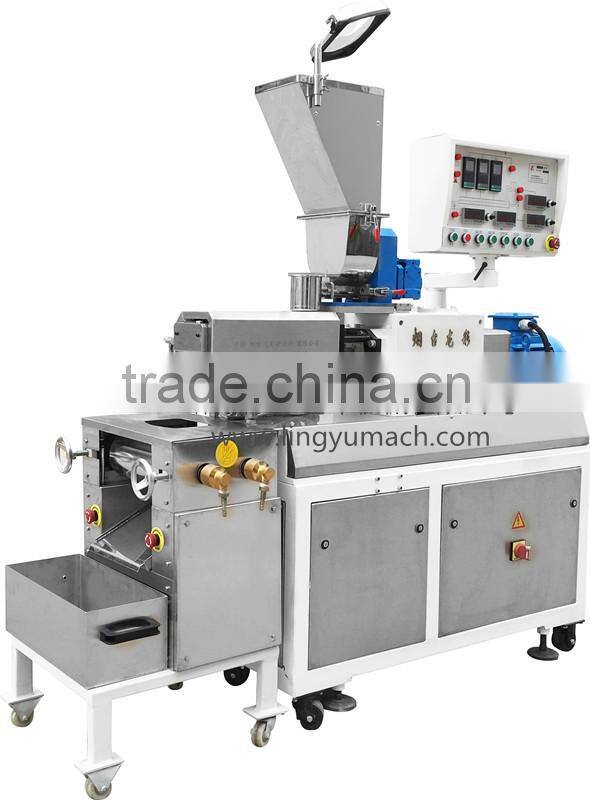

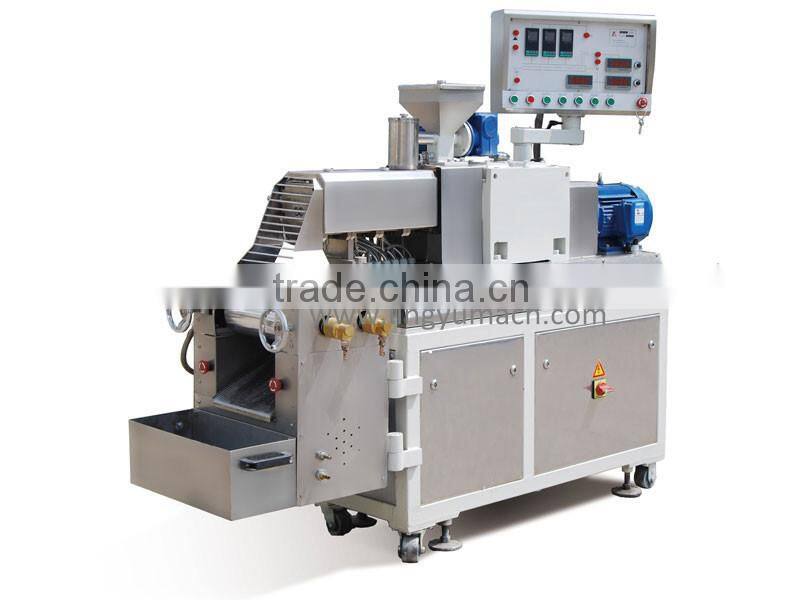

This series of extruder adopts novel design and compact structure. It is an ideal equipment for developing new product, powder coating technologies and adjusting colors as well, whose kneading effect can be comparable to that of the large scale machine.
Main Technical Parameter:
1. Gear box equipped with a separate lubrication and cooling system, has advantages of high torque, low noise≤60DB, high wear resistance, long life
2. Low maintenance rate
3. Comparable with European similar equipment
Main Technical Parameter:
| Model | Output(kg/h) | Screw Speed(rpm) | L/D Radio | Motor Power(kW) | Heating Power(kW) | Dimension(mm) |
| SLJ-20 | 10-15 | 0-500 | 19:1 | 4 | 2.2 | 1900*700*1400 |
| SLJ-25A | 10-30 | 0-500 | 17:1 | 4 | 2.6 | 1900*700*1400 |
| SLJ-25B | 20-50 | 0-800 | 17:1 | 4 | 2.6 | 1900*700*1400 |
| SLJ-35 | 80-120 | 0-500 | 18.5:1 | 15 | 8 | 3000*800*1400 |

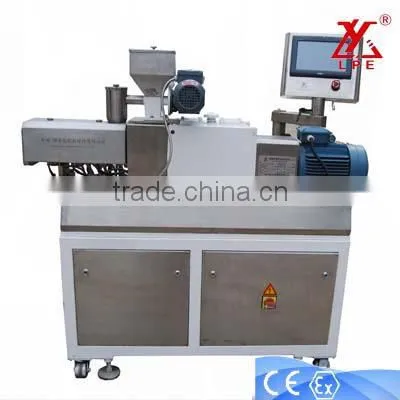

Two Types of Lab Twin Screw Extruder:
* Two kinds of control computer panels: button and touch screen
* Two kinds of cooling bands: one with water cooling rollers; the other with drum cooler
The Spare Parts:
* Segmented barrel design for ease of cleaning and changing colors
* L/D ratio can be adjusted freely according to different product requirement
* With modular liner inserts, high hardness
* With Water cooling discharge die plate

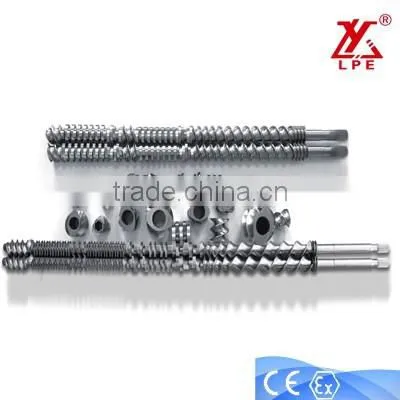

* Screw Elements can be processed "Screw Grinder", which we produce by our own, to achieve the best precision and free replacement rate.
CE Certificate:
* CE Certificate by TUV Rheinland Product Safety GmbH from Germany
Bird-View of the Plant:
*Established in 1999, Lingyu is specialized in researching and manufacturing for powder coating processing equipment, with abundant technological competences and extensive experience. Up to now, Lingyu has successfully exported to more than 50 countries and regions all over the world.
Overview of the Workshop:
* With most advanced mechanical processing equipment
* With most experienced workers & professional technicans
Coating Shows:
* Running the production line on site during Chinacoating shows.
* Enjoyed great popularity & some customers signed the contracts during the show
* Attend coatings shows abroad, like, Abrafati, APEC, MECS, Expo Coating Moscow, Iran Coating Show, ect.
We sincerely welcome you to our company for a business visit and technical communication at your most convenience.
