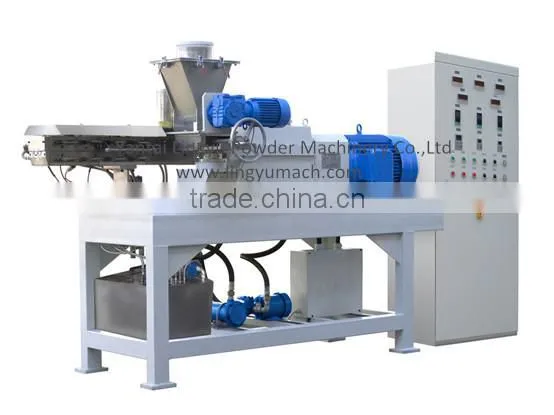

General Description of this SHJ-M Series' Extuder:
This series of extruder adopts co-rotating screw structure. Multi kinds of raw materials can achieve optimal dispersed and kneaded effect after fully hoy-melted under the precise intermeshing action by the conveying elements and kneading elements mounted on the twin screws.
Features:

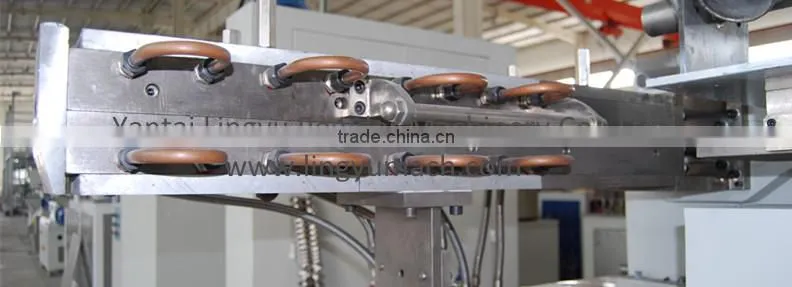

1. Barrel horizontally opposite open, easy for color changing and cleaning
2. Water-cooled screw, accurately controlled temperature, and no solidification
3. Screw elements can be combined freely according to technical requirements
4. Screw, barrel and conveying parts are made of nitrogenized special steel to make the machine more durable
5. Self-clean, fine shearing and mixing efficiency
6. Gear box equipped with a separate lubrication and cooling system, has advantages of high torque, low noise≤60DB, high wear resistance, long life
7. Safe to operate
Main Technical Parameter:
| Model | Output(kg/h) | Screw Speed(rpm) | L/D Ratio | Motor Power(kw) | Heating Power(kw) | Dimension(mm) |
| SLJ-40 | 150-200 | 0-500 | 20:1 | 18.5 | 10 | 3200*800*1400 |
| SLJ-50A | 200-300 | 0-500 | 18:1 | 30 | 10 | 2700*1400*1800 |
| SLJ-50B | 300-400 | 0-600 | 23:1 | 37 | 12 | 3150*1400*2000 |
| SLJ-65A | 400-700 | 0-500 | 20:1 | 55 | 12 | 3400*1150*1700 |
| SLJ-65B | 600-800 | 0-600 | 20:1 | 55 | 12 | 3400*1150*1700 |
| SLJ-75A | 800-1000 | 0-500 | 18:1 | 75 | 16 | 3400*1150*1800 |
| SLJ-75B | 900-1200 | 0-600 | 21:1 | 75 | 16 | 3400*1150*1800 |
Why choose this series of extruder?
This series of extruder belongs to economy type, whose cost is much lower than our SLJ-H series. Integral barrel design is the main difference for the outlook. The motors and electrical control components will usually adopt Chinese domestic brands.
* Integral split barrel design for ease of cleaning
* With modular liner inserts
* With water cooled discharge die plate at the end of the barrel
CE Certificate:
* CE Certificate by TUV Rheinland Product Safety GmbH from Germany
Bird-View of Lingyu Plant:
*Established in 1999, Lingyu is specialized in researching and manufacturing for powder coating processing equipment, with abundant technological competences and extensive experience. Up to now, Lingyu has successfully exported to more than 50 countries and regions all over the world.
Overview of the Workshop:
* With most advanced mechanical processing equipment
* With most experienced workers & professional technicans
Coating Shows:
* Running the production line on site during Chinacoating shows.
* Enjoyed great popularity & some customers signed the contract during the show
* Attend coatings shows abroad, like, Abrafati, APEC, MECS, Expo Coating Moscow, Iran Coating show, ect.
We sincerely welcome you to our company for a business visit and technical communication at your most convenience.
