Help CenterLab Scale Extruder for Powder Coating
Related Products
-
High Quality Screw for ExtruderUS$ 10,000 - 80,000MOQ: 1 Set -
Double Screw ExtruderUS$ 85,000 - 125,000MOQ: 1 Set
-
Extruder for Powder Coating/ PlasticsUS$ 30,000 - 60,000MOQ: 1 Set
-
Twin Screw Extruder Powder Coating MachineUS$ 30,000 - 60,000MOQ: 1 Set
-
Twin Screw Extruder Powder Coating EquipmentUS$ 30,000 - 60,000MOQ: 1 Set

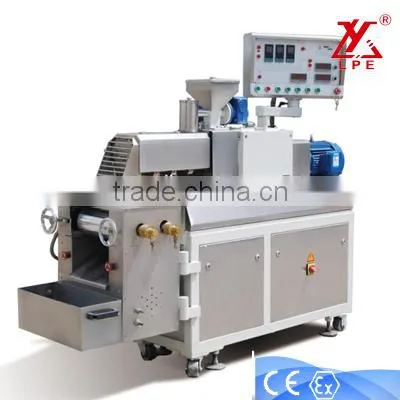

This series of extruder adopts novel design and compact structure. It is an ideal equipment for developing new product, powder coating technologies and adjusting colors as well, whose kneading effect can be comparable to that of production extruder.
Main Technical Parameter:
1. Gear box equipped with a separate lubrication and cooling system, has advantages of high torque, low noise≤60DB, high wear resistance, long life
2. Low maintenance rate
3. Comparable with European similar equipment
4. Screw conveying elements to be processed by "Screw Grinder", to achieve best precision & free replacement rate.
Main Technical Parameter:
| Model | Output(kg/h) | Screw Speed(rpm) | L/D Radio | Motor Power(kW) | Heating Power(kW) | Dimension(mm) |
| SLJ-20 | 10-15 | 0-500 | 19:1 | 4 | 2.2 | 1900*700*1400 |
| SLJ-25A | 10-30 | 0-500 | 17:1 | 4 | 2.6 | 1900*700*1400 |
| SLJ-25B | 20-50 | 0-800 | 17:1 | 4 | 2.6 | 1900*700*1400 |
| SLJ-35 | 80-120 | 0-500 | 18.5:1 | 15 | 8 | 3000*800*1400 |
Two Types of Lab Twin Screw Extruder:
* Two kinds of control computer panels: button and touch screen
* Two kinds of cooling bands: one with water cooling rollers; the other with drum cooler
The Spare Parts:
* Segmented barrel design for ease of cleaning and changing colors
* L/D ratio can be adjusted freely according to different product requirement
* With modular liner inserts, high hardness
* With Water cooling discharge die plate
CE Certificate:
* CE Certificate by TUV Rheinland Product Safety GmbH from Germany
Bird-View of the Plant:
*Established in 1999, Lingyu is specialized in researching and manufacturing for powder coating processing equipment, with abundant technological competences and extensive experience. Up to now, Lingyu has successfully exported to more than 50 countries and regions all over the world.
Overview of the Workshop:
* With most advanced mechanical processing equipment
* With most experienced workers & professional technicans
Coating Shows:
* Running the production line on site during Chinacoating shows.
* Enjoyed great popularity & some customers signed the contracts during the show
* Attend coatings shows abroad, like, Abrafati, APEC, MECS, Expo Coating Moscow, Iran Coating Show, ect.
We sincerely welcome you to our company for a business visit and technical communication at your most convenience.
