Specifications

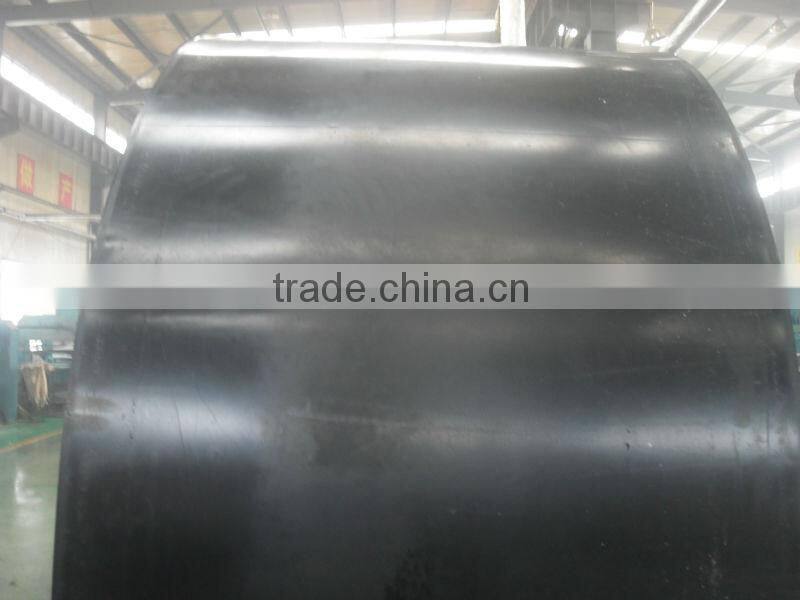

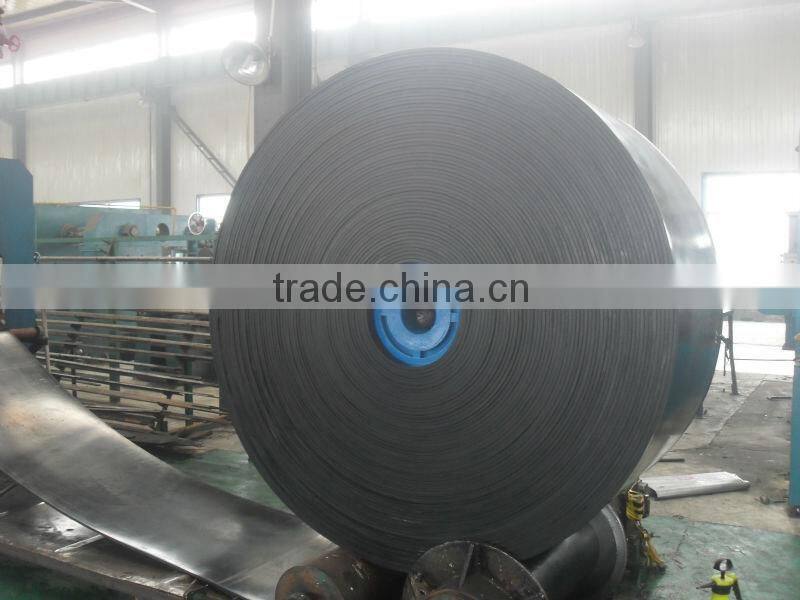

COMMON CONVEYOR BELT1.Width:300mm-2500mm
2.Thickness:4mm-30mm
3.Plies:2-10
4.Color:Black
Conveyor belt conveyor is the main component, play the role of carrying the material. It is widely used in material handling metallurgy, building materials, electricity, port, mining and other fields. As the conveyor belt transport carriers and other modes of transportation, compared with the safe operation, easy to use and easy maintenance, low shipping and can achieve continuous, shorten the transport distance and so on. In a certain range of underwear became highways, rail transport alternative.
General conveyor belt under the general conditions applicable to transport special afternoon temperature corrosive lump, powder, powder materials.
Strong layer is generally of high quality heavy-duty cotton canvas, polyester canvas, nylon / polyester canvas.
SPECIFICATION
Fabric Type |
Purified cotton canvas |
Washes cotton canvas |
Washes cotton canvas ( to soak rubber) |
Cloth model intensity(n/m) |
CC-56 |
TCt-65 |
TCt-65 |
Adhesive plaster thickness(mm) |
1.40 |
1.10 |
1.20 |
Cloth layer |
3-10 |
3-8 |
3-8 |
Cloth level bond strength(n/mm) |
≥3.2 |
≥3.2 |
≥3.2 |
Entire thickness longitudinal strength(kn/m) |
150-500 |
180-480 |
210-560 |
Physical and mechanical properties of the coating layer
Cover Grade |
Tensil strength |
Breaking elongation |
Abrasion loss |
|
Mpa |
% |
MM3 |
H |
24.0 |
450 |
120 |
D |
18.0 |
400 |
100 |
L |
15.0 |
350 |
200 |
Full thickness tensile properties
- a. Longitudinal tensile strength of the belt is not less than the following criteria: 160 n/mm, 200 n/mm, 250 n/mm, 315 n/mm, 400 n/mm, 500 n/mm, 600 n/mm, 630 n/mm, 800 n/mm, 1000 n/mm, 1250 n/mm, 1600 n/mm, 2000 n/mm, 2500 n/mm, 3150 n/mm.
- b. Full thickness longitudinal conveyor belt elongation at break of not less than 10% full thickness longitudinal reference belt elongation force should not exceed 4%.
- c. Straightness. Not more than 25MM.
.
