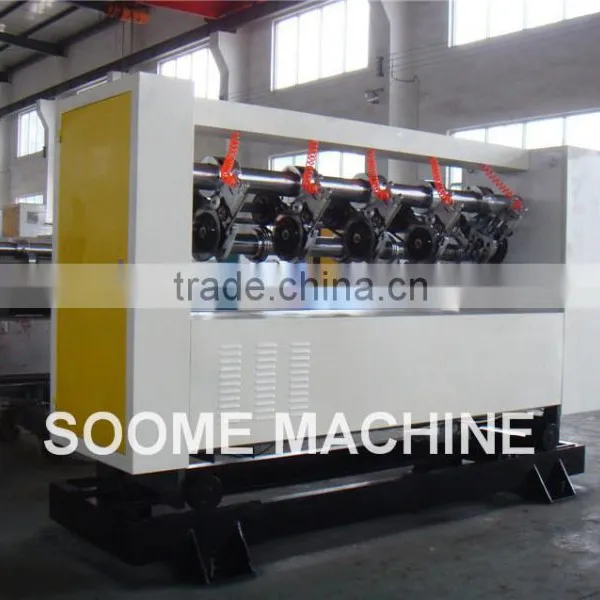

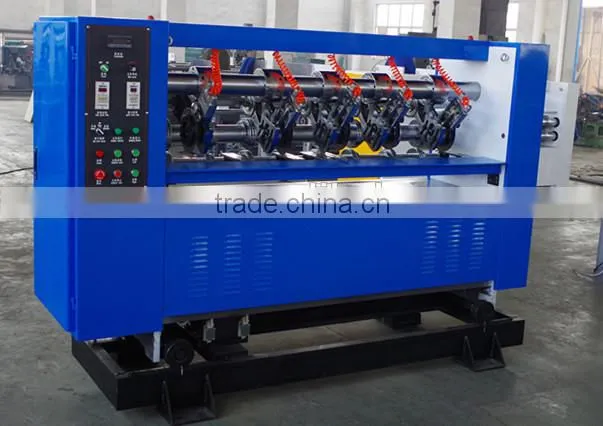

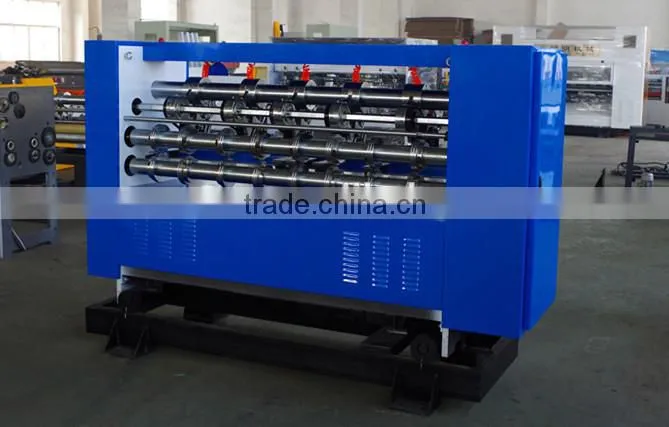

SMBD-HY online left-right moving type slitter scorer

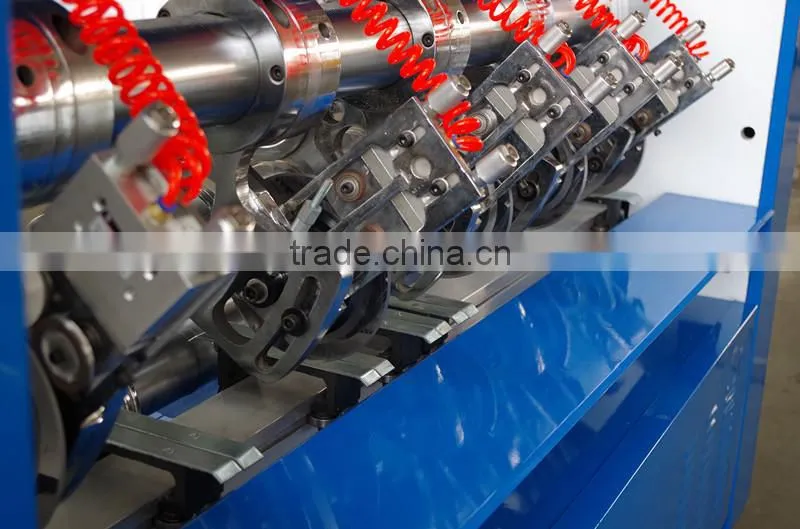

1.Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2.Grinding part: adopt automatic and manual two kinds pneumatic
grinding type, it could be grinding when working, improve work efficiency.

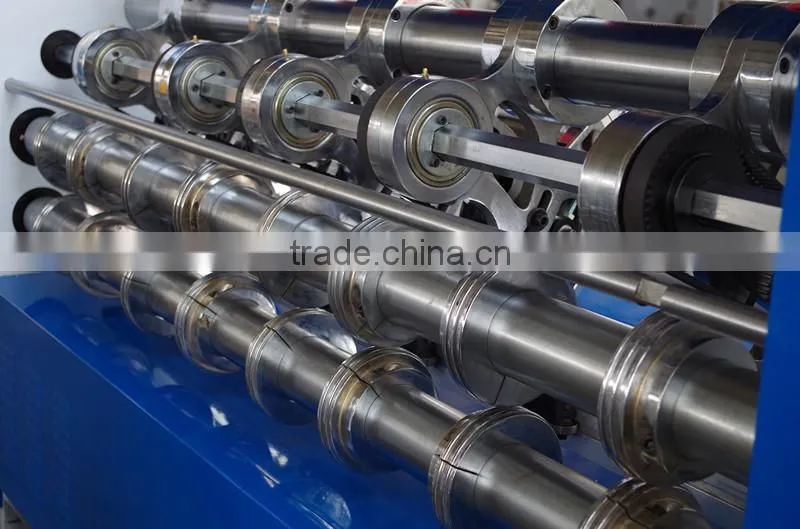

3.Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry,and easy to bend the carton sheet.
4.Adopt China famous brand or imported electric element,dependable performance.
5.Standard motorized body left-right rectification ,right-left 200mm.
TYPE |
SMBD-HY-1800 |
SMBD-HY-2000 |
SMBD-HY-2200 |
Effective width (mm) |
1700 |
1900 |
2100 |
speed (m/min) |
80 |
80 |
80 |
Min. Slitter-spacing (mm) |
120 |
120 |
120 |
Min. Score-spacing (mm) |
30 |
30 |
30 |
Body rectification range (mm) |
200 |
200 |
200 |
Dimensions L x W x H (mm) |
2440*900*1620 |
2640*900*1620 |
2840*900*1620 |

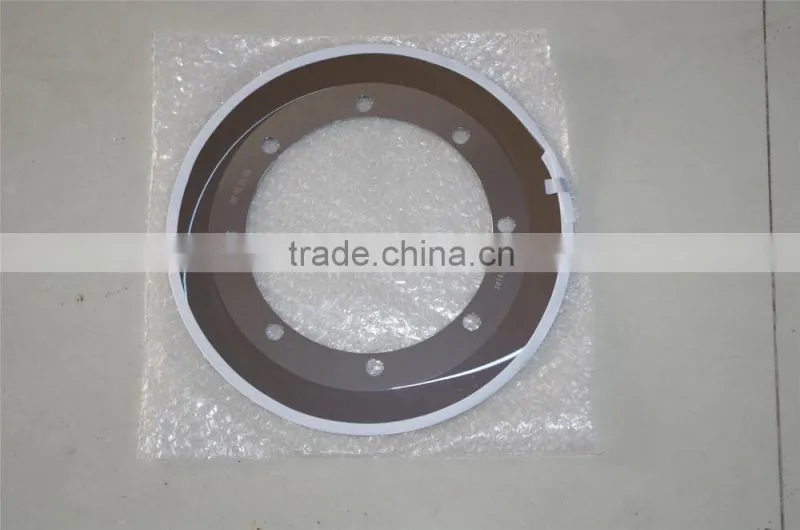

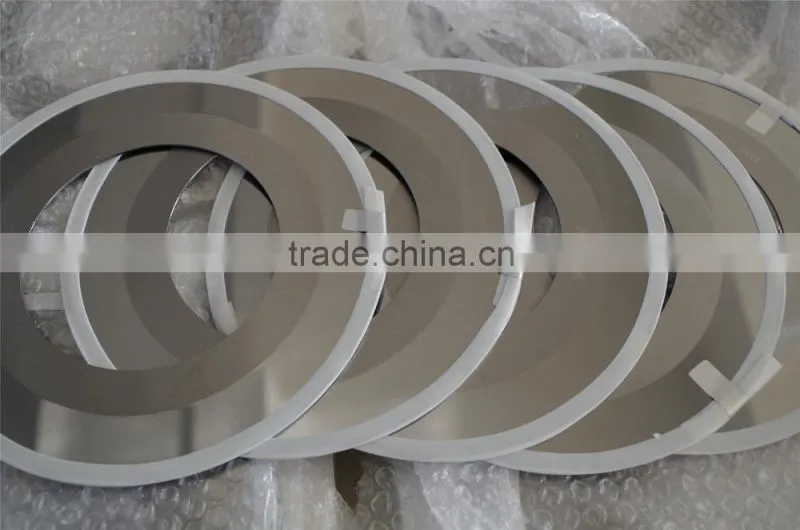

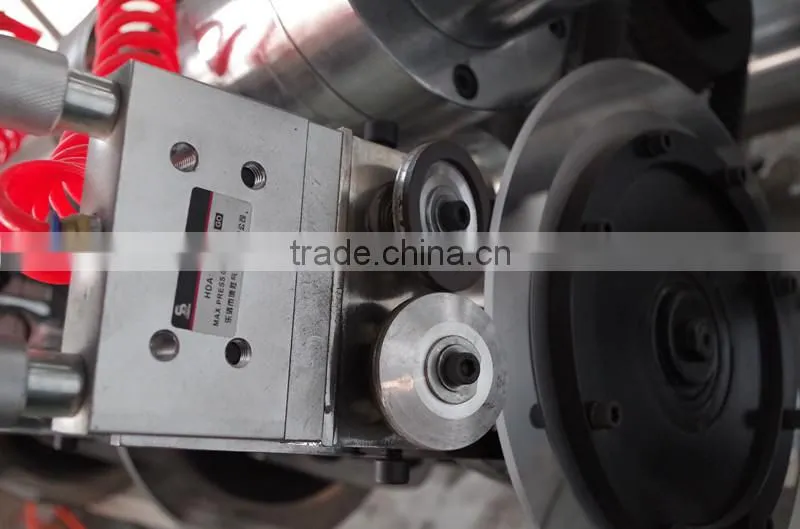

SOOME thin blade on slitter scorer
1. Q: Are you a manufacturer or trading company?

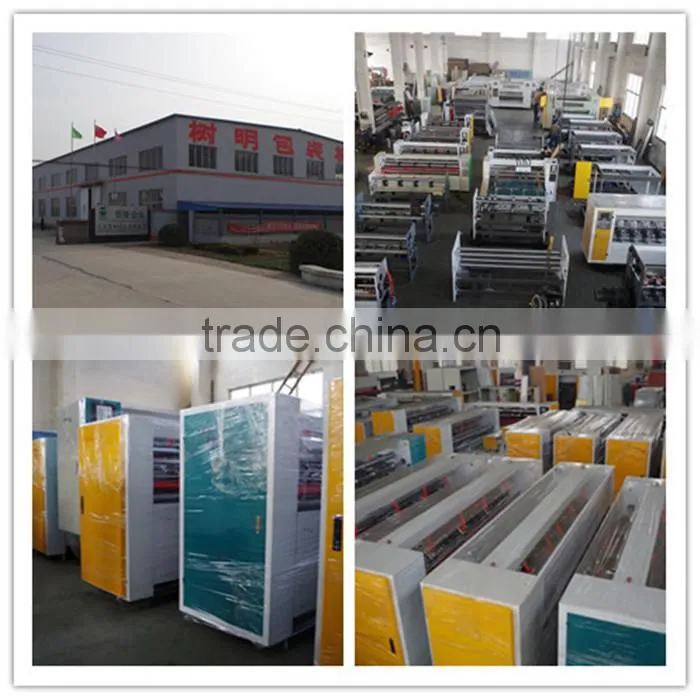

A: We SOOME is a manufacturer of carton machinery which has nearly 20 years production experience.
2. Q: Have you ever attended or will attend any exhibition?
A: We ever attended the Canton Fair and Chengdu international corrugated exhibition. And we will attend the SinoCorrugated 2015 in Shanghai from Apr. 14th to 17th, 2015.
Welcome to visit our booth: N5 D94
3. Q: Can we visit your factory?
A: Yes, you are welcomed to visit our factory at any time!

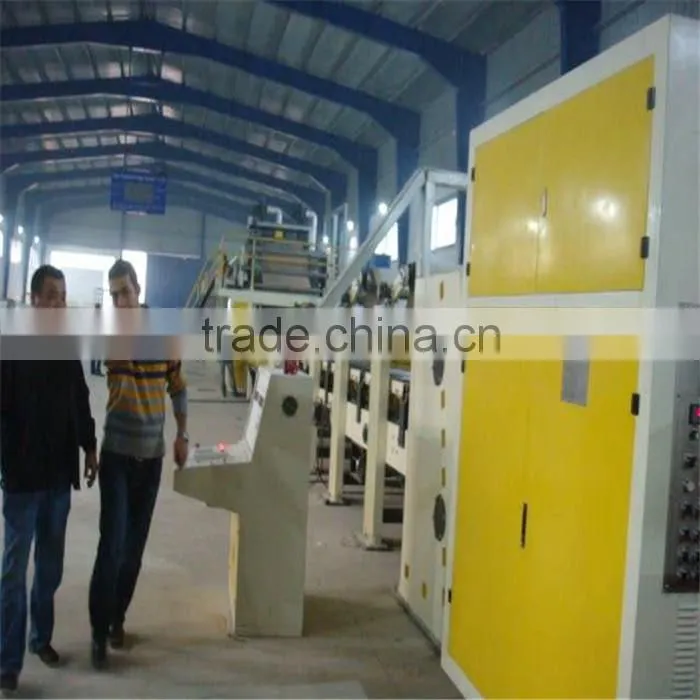

Engineer debugging overseas
