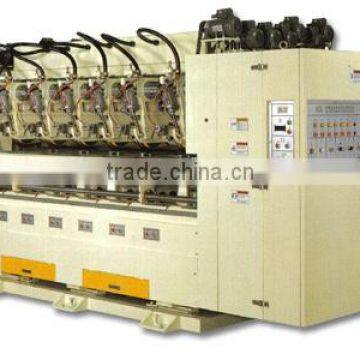

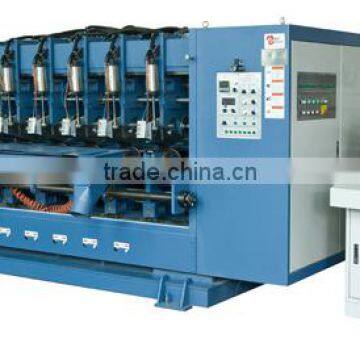

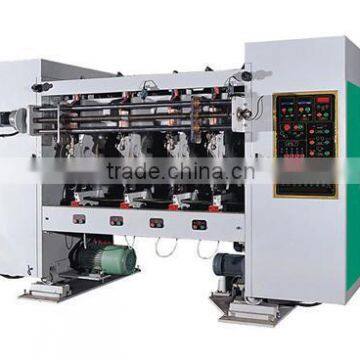

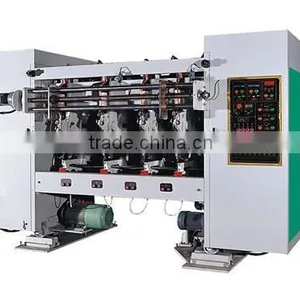

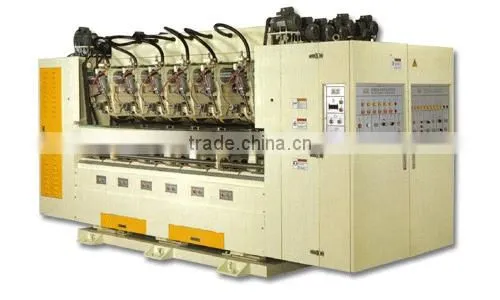

A type NC slitter scorer(common type, AC servo type)
1.
Function and Features :
l Individual step motor and controller on each slitter and scorer sets,quick and accurate order change.
l Slitters and scorers are inverter controlled,speed synchronizes with board speed.
l Two rows of scorers,realizes minimum scorer spacing is 0mm.
l There are three types of scorers. Front row: Male-to-flat/ Pre-score; Back row: Male-to-female.
l Electric score-depth adjust.
l Alloyed steel thin-blades,sharp and long life of over 800 million meters ,auto sharpening.
l Standard motorized body left-right rectification controlling system.
l Individual sealed electrical cabinet,dust-free,constant temperature and humidity ensure longer life.
l Standard touch screen monitor,easy to operate.
l Standard communication interface,easy to link with management system.
l You can add color code tracker or absorption of waste.
l A memory of 999 orders.Non-stop changeover or manual change over can be realized.
Technological parameter:
TYPE |
SMBD-BJ-1800 |
SMBD-BJ-2000 |
SMBD-BJ-2200 |
SMBD-BJ-2500 |
|
Effective width |
1700mm |
1900mm |
2100mm |
2400mm |
|
knife configuration |
5,6 |
5,6 |
6,7 |
6,7 |
|
Scorer configuration |
8,10 |
8,10 |
10,12 |
10,12 |
|
Order change time |
Common type |
3-8s |
3-8s |
3-8s |
3-8s |
AC servo type |
1-3s |
1-3s |
1-3s |
1-3s |
|
Min. Slitter-spacing |
160mm |
160mm |
160mm |
160mm |
|
Min. Score-spacing |
0mm |
0mm |
0mm |
0mm |
|
Slitter/Scorer precision |
±0.5mm |
±0.5mm |
±0.5mm |
±0.5mm |
|
Body rectification range |
200mm |
200mm |
200mm |
200mm |
|
Dimensions L x W x H (mm) |
3050*1900*2450 |
3250*1900*2450 |
3450*1900*2450 |
3750*1900*2450 |
|
l Alloyed tungsten steel thin-blades,auto sharpening,and long life of over 8 million meters.
l High quality beeline rail and high-precision screw conveying guarantees a ±0.5mm precision.
l Front row with smooth roller as lower scorer,
realizes high quality Male-to-flat/ Pre-score for full-printed board. Back row: Male-to-female.
l Two rows of scorers,realizes minimum scorer spacing is 0mm.
l Trim suction-inlet and color code tracking system are optional
l Individual sealed electrical cabinet
Mechanical parts:
l linear guideway :Taiwan HIWIN .
l Taiwan HIWIN precision ball screw.
l Machine body adopted high precise and quality steel plate.
l Bearings:Adopt Germany FAG and China HRB
l Synchronous belt:Japan SUBAK
Control system:
l Taiwan DELTA inverter
l Machine motor:Taiwan TECO motor
l Touch screen:Beijing MCGS
l PLC:Taiwan DELTA
l Detection control:Korea AUTONICS
l Low voltage apparatus:France Schneider air switch,switch button,AC contactors,etc.
