Solar Branch Connector
US$ 0.5 - 0.9
/ Pair
1000 Pairs(Min. Order)
- NINGOB OR SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LUCKTEK | |
| Model Number | LK-SCA-004 | Type | Adapter | |
| Application | Other, Photovoltaic | Gender | Other, male & female |
Product Description
Specifications
1)Solar branch connectr ;2) Photovoltaic T splitter
3) TUV,RoHS,REACH;
4) MOQ:1000pcs

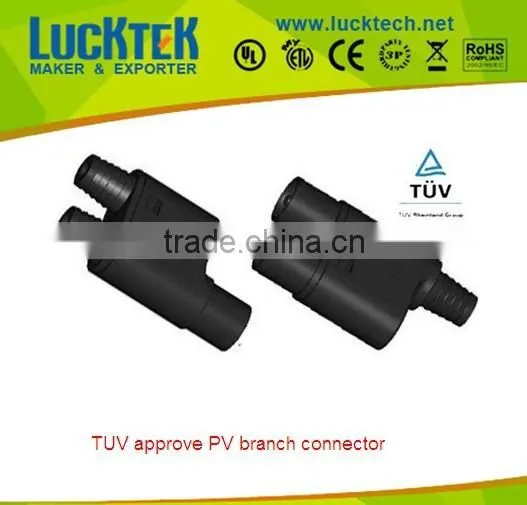

| Solar branch connector( T splitter) | |
| 1, | TUV approval |
| 2, | Easy to Install |
Rated Current | 25A(2.5/4mm2),30A(4/6mm2) |
| Withstanding Voltage | 1000V DC(TUV),600V(UL) |
| Contact Resistance | ≤0.3mΩ |
| Protection Class | Class II |
| Mechanical Features: | |
| Temperature Range | -40 oC~+90oC |
| Protection Degree | IP2X,unmated;IP67,mated |
| Wire Size Range | 2.5/4/6mm2(14AWG,12AWG,10AWG) |
| Unmating Force | 200 Newton |
| Material Features: | |
| Insulation Material | PC/PA |
| Contact Material | Copper,silver plated |
| Flame Class | UL94-V0 or UL94-5VA |
| Advantages of Solar Connector: | |
| •Simple,quick,safe and effective filed assembly | |
| • Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly | |
| •High mechanical endurance | |
| •High current and voltage carrying:30A,1000DC | |
| •Low transition resistance | |
| •Innovative sealed,waterproof,dust resistance design:IP67 | |
| •Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application | |
| •Approved by TUV |
Assembly instructions for connector of MC4 conector |
