TUV approval Photovoltaic Solar MC4 connector with 1 pair
USD $0.5 - $0.9
/ Pair
1000 Pairs(Min.Order)
- 500000 Pair / Pairs per Month
- NINGOB OR SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | LUCKTEK | Model Number: | LK-SCA-003 |
Type: | Adapter | Application: | Other, Photovoltaic | Gender: | Other, male & female |
Product Description

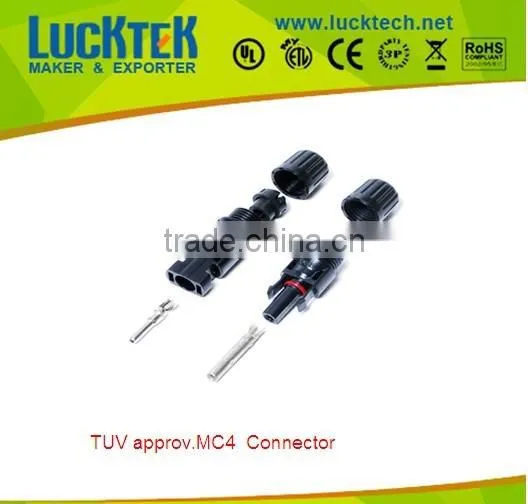

TUV approval Photovoltaic Solar MC4 connector with 1 pair
Solar MC4 female plug | |
1, | TUV approval |
2, | Easy to Install |
Rated Current | 25A(2.5/4mm2),30A(4/6mm2) |
Withstanding Voltage | 1000V DC(TUV),600V(UL) |
Contact Resistance | ≤0.3mΩ |
Protection Class | Class II |
Mechanical Features: | |
Temperature Range | -40 oC~+90oC |
Protection Degree | IP2X,unmated;IP67,mated |
Wire Size Range | 2.5/4/6mm2(14AWG,12AWG,10AWG) |
Unmating Force | 200 Newton |
Material Features: | |
Insulation Material | PC/PA |
Contact Material | Copper,silver plated |
Flame Class | UL94-V0 or UL94-5VA |
Advantages of Solar Connector: | |
•Simple,quick,safe and effective filed assembly | |
• Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly | |
•High mechanical endurance | |
•High current and voltage carrying:30A,1000DC | |
•Low transition resistance | |
•Innovative sealed,waterproof,dust resistance design:IP67 | |
•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application | |
•Approved by TUV |
Assembly instructions for connector of MC4 conector |
•During self assembly ,parts and tools other those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed. | |
•For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled | |
•The end product must provided protection from electric shock | |
•Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted | |
•Disconnected connectors should be protected from dirt and water with sealing caps. | |
•Plugged parts are watertight IP67 |
Type | Crimping ranges | |
mm2 | AWG | |
LK-SCA-001/M4C/F | 4/6 | 12/10 |
LK-SCA-002/M4C/M | 4/6 | 12/10 |
LK-SCA-003/MC4 | 1 pair | 12/10 |

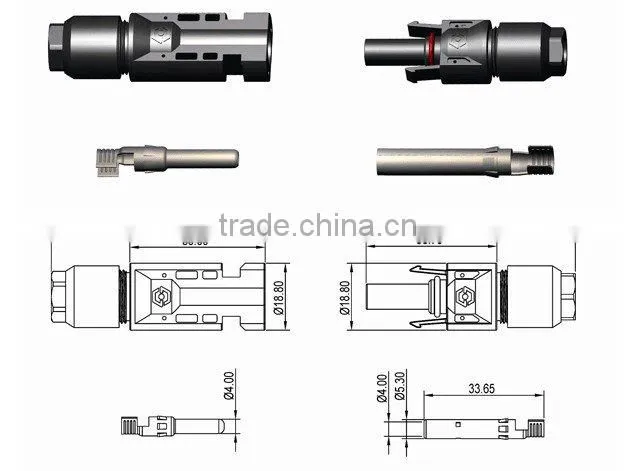

Drawing:
