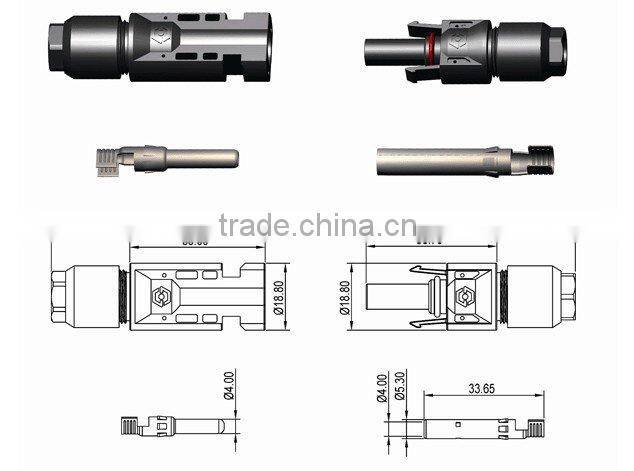

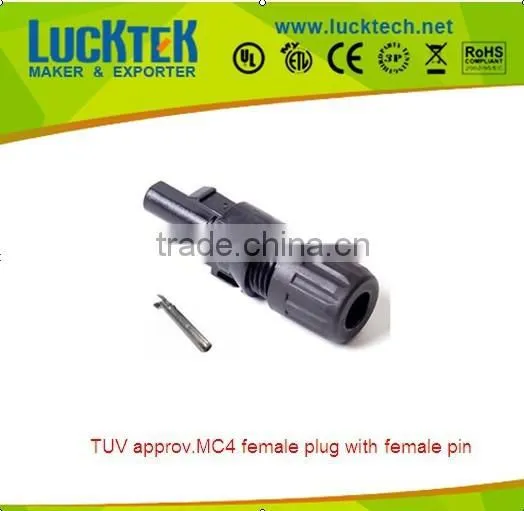

Solar MC4 Female Connector TUV Approval

Name: Solar MC4 Female Connector TUV Approval
Brand: LUCKTEK
SKU: 122200997
Availability: InStock

US$ 0.5 - 0.9 MOQ: 1000 Pairs

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

LUCKTEK

Model Number:

LK-SCA-002

Ningbo Lucktech Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGOB OR SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name LUCKTEK

Model Number LK-SCA-002

Type Other, connector

Specifications

1)Solar MC4 connector;
2) Photovoltaic MC4 connector
3) TUV,RoHS,REACH;
4) MOQ:1000pcs

Advantages of Solar Connector:
•Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
•High mechanical endurance
•High current and voltage carrying:30A,1000DC
•Low transition resistance
•Innovative sealed,waterproof,dust resistance design:IP67
•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
•Approved by TUV

Assembly instructions for connector of MC4 conector

•During self assembly ,parts and tools other those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
•For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
•The end product must provided protection from electric shock
•Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
•Disconnected connectors should be protected from dirt and water with sealing caps.
•Plugged parts are watertight IP67
