Home > Products > Network Cabinet & Accessories > Network Cabinet, Computer Server Rack.

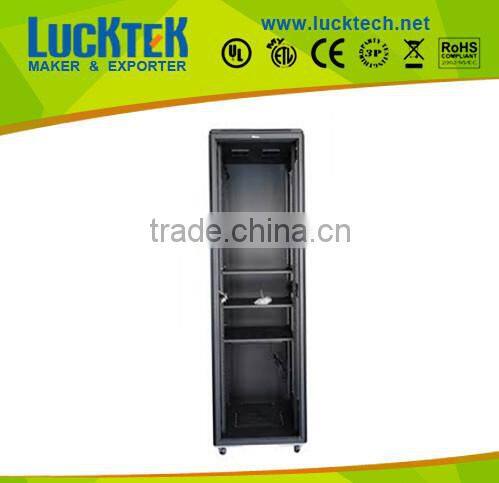

Network Cabinet, Computer Server Rack.
- Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Lucktech | |
| Model Number | LC-JFSC-02 | Type | Network Cabinet | |
| External Size | 37U&18U |
Product Description
Specifications
19'' Computer Server Rack,1:High quality with competitive price
2:Nice apperence and design
3.OEM is welcome
4.Durable
Network cabinet, Computer Server Rack.
Feature:
Exquisite design with precise craftsmanship;
Nine-folded profiled, welded frame with high intensity;
High-density perforated front door (single open) with over 180 turning degree;
High-density perforated rear door (dual open) enable quipment ventilation and reliable operation with ventilation rate above 50%
Removable side panel, easy to install and maintain(lock optional)
Connected by four-corner to ensure the strength and stability
Adjustable feet and castors sre available at the same time
Adjustable cable entry with dust-proof on the top cover and bottom panel
Advanced moon-shaped locks
Metal cable ring on the mounting profile for cable management;
Efficient baying kit of cabinet, Earthing kit
Supplied as welded structure, also supplied as a flat packing, which is about 2/5 of the assembled volume, easy to shipping and assemble
Optional Accessories for common using
Standard:
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491 Standard
Material:
Frame: Nine-folded profiled (SPCC)
Others: SPCC quality cold rolled steel
Thickness: Mounting profile: 2.0mm; mounting angle: 1.5mm; other: 1.2mm
Loading Capacity:
Static loading: 1000kg
Degree of protection:
IP20
Surface finish:
Degreaseing, Pickling, Phosphating, Powder Coated
Model Information
| Model No. | Capacity (U) | Width × Depth (mm) | Model No. | Capacity (U) | Width × Depth (mm) |
| LK-SC-JF6618 | 18 | 600 × 600 | LK-SC-JF6637 | 37 | 600 × 600 |
| LK-SC-JF6818 | 600 × 800 | LK-SC-JF6837 | 600 × 800 | ||
| LK-SC-JF6918 | 600 × 900 | LK-SC-JF6937 | 600 × 900 | ||
| LK-SC-JF6018 | 600 × 1000 | LK-SC-JF6037 | 600 × 1000 | ||
| LK-SC-JF6622 | 22 | 600 × 600 | LK-SC-JF6642 | 42 | 600 × 600 |
| LK-SC-JF6822 | 600 × 800 | LK-SC-JF6842 | 600 × 800 | ||
| LK-SC-JF6922 | 600 × 900 | LK-SC-JF6042 | 600 × 1000 | ||
| LK-SC-JF6022 | 600 × 1000 | LK-SC-JF6242 | 600 × 1200 | ||
| LK-SC-JF6627 | 27 | 600 × 600 | LK-SC-JF6645 | 45 | 600 × 600 |
| LK-SC-JF6827 | 600 × 800 | LK-SC-JF6845 | 600 × 800 | ||
| LK-SC-JF6927 | 600 × 900 | LK-SC-JF6045 | 600 × 1000 | ||
| LK-SC-JF6027 | 600 × 1000 | LK-SC-JF6245 | 600 × 1200 | ||
| LK-SC-JF6632 | 32 | 600 × 600 | LK-SC-JF6647 | 47 | 600 × 600 |
| LK-SC-JF6832 | 600 × 800 | LK-SC-JF6847 | 600 × 800 | ||
| LK-SC-JF6932 | 600 × 900 | LK-SC-JF6047 | 600 × 1000 | ||
| LK-SC-JF6032 | 600 × 1000 | LK-SC-JF6247 | 600 × 1200 | ||
| Model No. | Capacity (U) | Width × Depth (mm) | Model No. | Capacity (U) | Width × Depth (mm) |
| LK-SC-JF8618 | 18 | 800 × 600 | LK-SC-JF8637 | 37 | 600 × 600 |
| LK-SC-JF8818 | 800 × 800 | LK-SC-JF8837 | 600 × 800 | ||
| LK-SC-JF8918 | 800 × 900 | LK-SC-JF8937 | 600 × 900 | ||
| LK-SC-JF8018 | 800 × 1000 | LK-SC-JF8037 | 600 × 1000 | ||
| LK-SC-JF8622 | 22 | 800 × 600 | LK-SC-JF8642 | 42 | 600 × 600 |
| LK-SC-JF8822 | 800 × 800 | LK-SC-JF8842 | 600 × 800 | ||
| LK-SC-JF8922 | 800 × 900 | LK-SC-JF8042 | 600 × 1000 | ||
| LK-SC-JF8022 | 800 × 1000 | LK-SC-JF8242 | 600 × 1200 | ||
| LK-SC-JF8627 | 27 | 800 × 600 | LK-SC-JF8645 | 45 | 600 × 600 |
| LK-SC-JF8827 | 800 × 800 | LK-SC-JF8845 | 600 × 800 | ||
| LK-SC-JF8927 | 800 × 900 | LK-SC-JF8045 | 600 × 1000 | ||
| LK-SC-JF8027 | 800 × 1000 | LK-SC-JF8245 | 600 × 1200 | ||
| LK-SC-JF8632 | 32 | 800 × 600 | LK-SC-JF8647 | 47 | 600 × 600 |
| LK-SC-JF8832 | 800 × 800 | LK-SC-JF8847 | 600 × 800 | ||
| LK-SC-JF8932 | 800 × 900 | LK-SC-JF8047 | 600 × 1000 | ||
| LK-SC-JF8032 | 800 × 1000 | LK-SC-JF8247 | 600 × 1200 | ||
