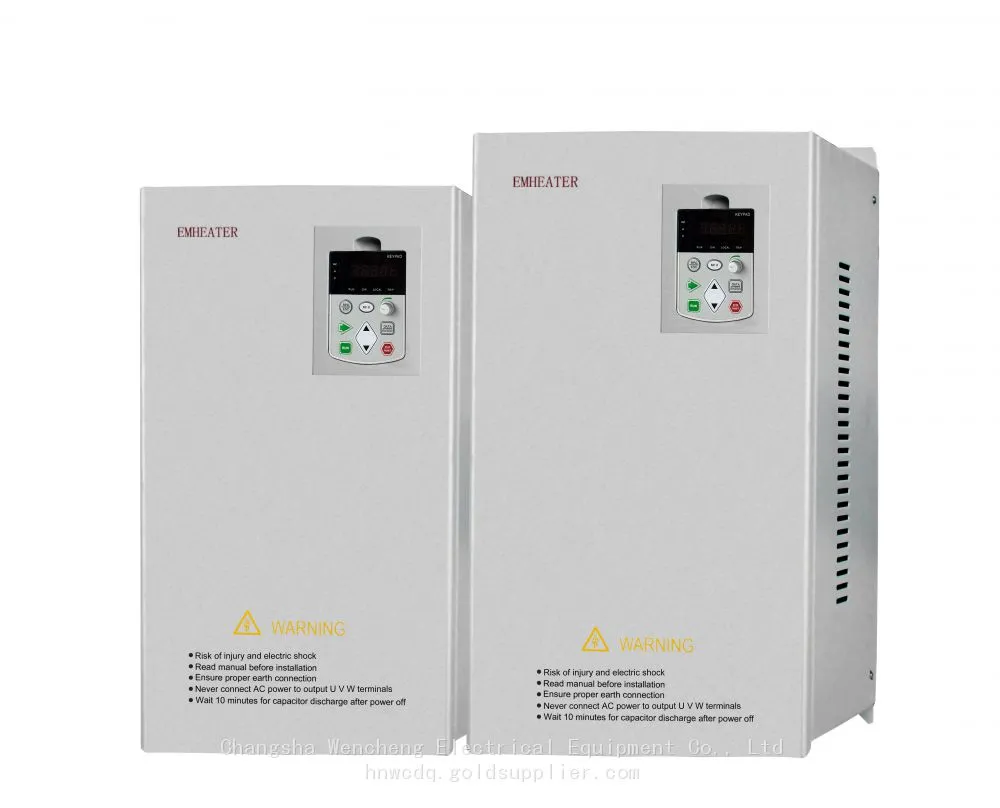

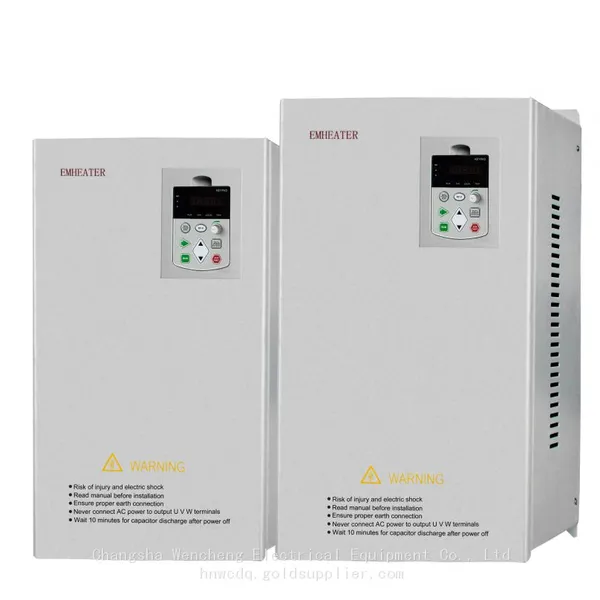

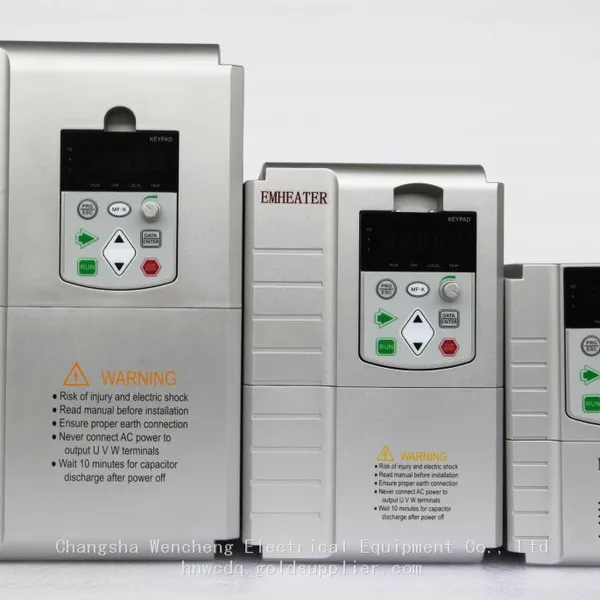

MPPT Voltage Range 350V to 750V DC Three Phase Output AC 380V 11KW Solar Pump Inverter for Mauritius Marke
Negotiable
MOQ: 10 Bags (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2004
Product Certifications:
ISO9001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
2 days
Related Products
-
3-Phase 220v 380v Frequency Inverter VFD Variateur de Vitesse Inverter With 3 Power PhasesNegotiableMOQ: 10 Bags -
No Need Connect Bypass Contactor 3 Phase 380V MotorNegotiableMOQ: 10 Bags
-
160kw 480v Triple Phase Thyristor Soft Starter Inverter & Converter for Electric Air CompressorNegotiableMOQ: 10 Bags
-
VFD Manufacturer 7.5kw 10HP 220v Single Phase Input and 3Phase Output AC Variable Frequency Drive With CE ROHS CertificateNegotiableMOQ: 100 Short Tons
-
37kw 380v~400v Frequency Inverter 3phase Input and 3phase Output With ce CertificateNegotiableMOQ: 100 Bags
MPPT voltage range 350V to 750V DC three phase output
AC 380V 11KW solar pump inverter for Mauritius marke

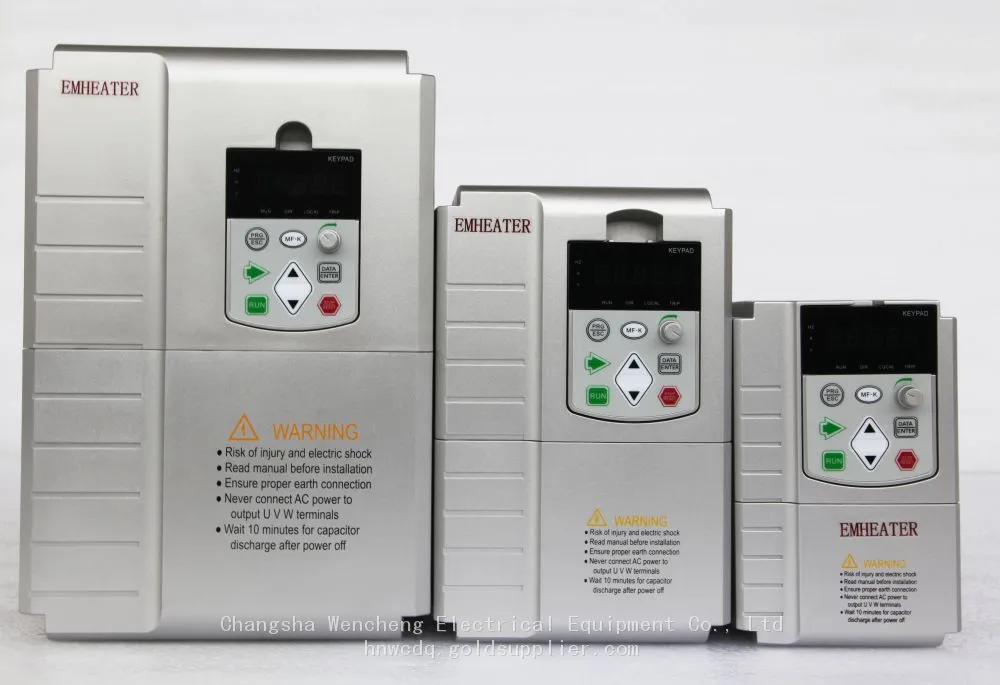

MPPT voltage range 350V to 750V DC three phase output AC 380V 11KW solar pump inverter for Mauritius market
EM12-SP series solar pump inverter rate
EM12-SP series solar pump inverter rate

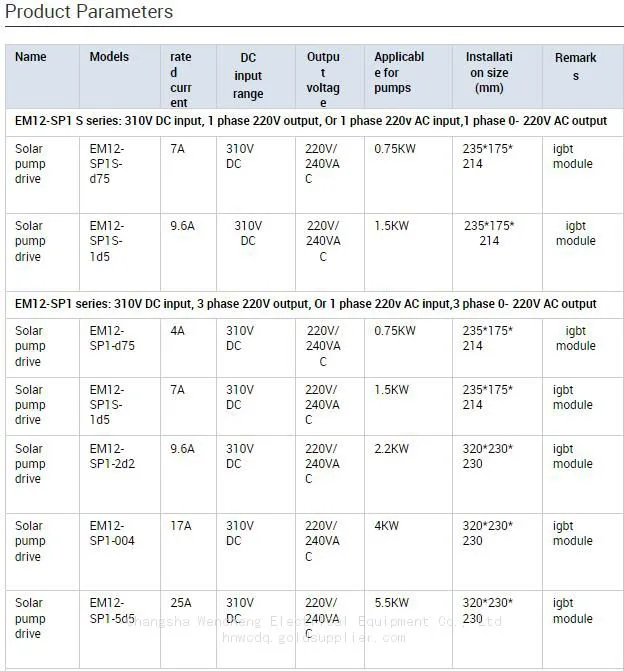

1.: 300VDC to 380VDC Single Phase Input and 220VAC three Phase Output, 0.75KW to 400KW
2.: 300VDC to 380VDC Single Phase Input and 220VAC single Phase Output, 0.75KW to 400KW

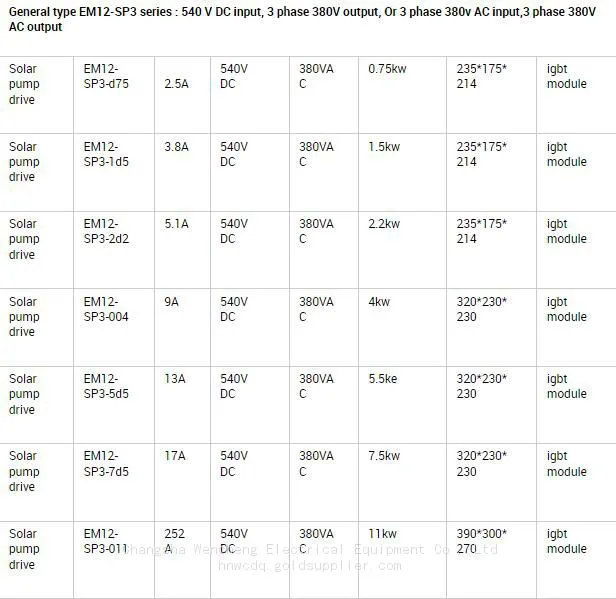

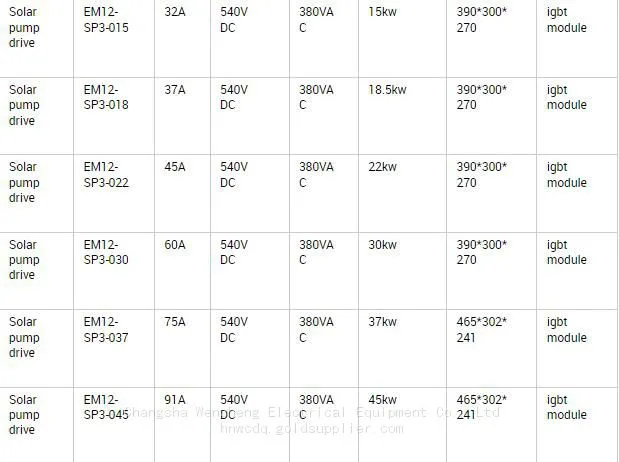

3.: 450VDC to 650VDC Three Phase Input and 380V three Phase Output, 0.75KW to 600KW
Input Voltage range: DC300/540V±20% or AC220/380V±15%.
Output Voltage Range:3phase AC220/380V±15%. Power range: 0.75KW to 630KW

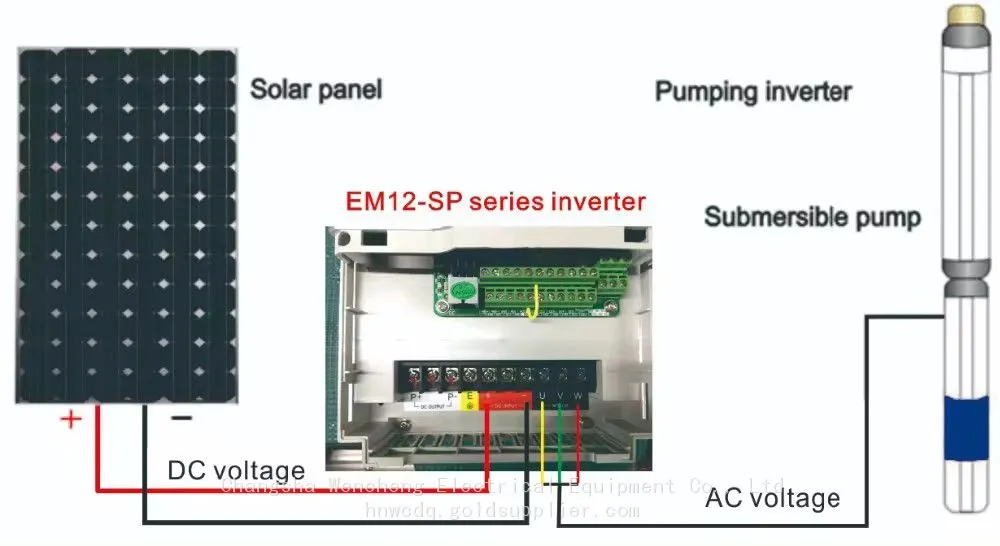

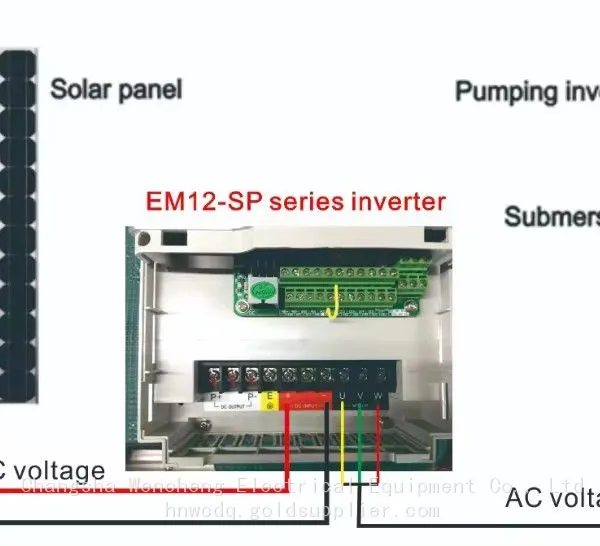

Foreward for EM12-SP MPPT solar pump drive
Water is essential to all forms of life. In many remote locations around the world, traditional power is unavailable or unreliable to power a submersible pump and motor.
EMHEATER is committed to quality, availability, service, innovation and value by developing new systems for renewable energy while using our proven EM12-SP series solar pump inverter.
MPPT algorithm of fast tracking of maximum power point of PV cells, efficiency >99%.
Solar battery working point voltage can be manually or automatically MPPT tracking.
All weather automatic operation,can also be manually or automatically,
Realize"sunrise work and sunset sleep".
35 kinds protection function. including auto detecting short circuit after power on.
Auto sleep function/pump dry protect/low frequency protection/over load protection and etc.
Full protections:overload,over current, overvoltage,under voltage,short circuit, dry pumping etc.
Output frequency range: V/F(0~3000hz); vector control(0~300HZ).
Overload capacity:60s with 150% of rated current,3s with 180% of rated current.
Speed accuracy:±0.5%(SVC);±0.02%(VC).
Pulse setting input:0Khz~100Khz.
Remote control, support RS232/RS485 protocol, terminal control, analog control.
Solar battery working point voltage can be manually or automatically MPPT tracking.
All weather automatic operation,can also be manually or automatically,
Realize"sunrise work and sunset sleep".
35 kinds protection function. including auto detecting short circuit after power on.
Auto sleep function/pump dry protect/low frequency protection/over load protection and etc.
Full protections:overload,over current, overvoltage,under voltage,short circuit, dry pumping etc.
Output frequency range: V/F(0~3000hz); vector control(0~300HZ).
Overload capacity:60s with 150% of rated current,3s with 180% of rated current.
Speed accuracy:±0.5%(SVC);±0.02%(VC).
Pulse setting input:0Khz~100Khz.
Remote control, support RS232/RS485 protocol, terminal control, analog control.
