Specifications
1) We are the cable maker;2)Purple LSZH Cat.5e UTP solid Cable pure copper 24AWG 1000FT;
3) CE,UL,RoHS;
4) MOQ:10 boxes

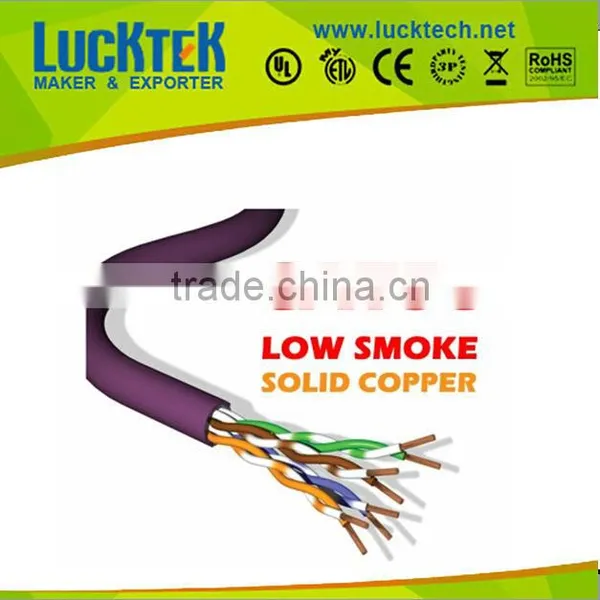

Purple LSZH Cat.5e UTP solid Cable pure copper 24AWG 1000FT
Whether you're employing ATM 155Mbps , Fast Etherent, Token Ring, or TP-PMD applications, Belden 1583A Cat5e DataTwist Five cable provides the ultimate option for your network needs. PVC jacket. 1583A DataTwist Five cable is tested to 100MHz and meets or exceeds the TIA/EIA 568A standard and is third party party verified.
* 24 awg solid bare copper
* 4 twisted pairs
* Jacket sequentially marked at two foot intervals
CONDUCTOR :
Number of Pairs: 4
Total Number of Conductors: 8
AWG: 24
Stranding: Solid
Conductor Material: BC - Bare Copper
INSULATION :
Insulation Material: PO - Polyolefin
Number Color
1 White/Blue Stripe & Blue
2 White/Orange Stripe & Orange
3 White/Green Stripe & Green
4 White/Brown Stripe & Brown
OUTER SHIELD :
Outer Shield Material: Unshielded
OUTER JACKET :
Outer Jacket Material: PVC - Polyvinyl Chloride
Outer Jacket Ripcord: Yes
OVERALL NOMINAL DIAMETER :
Overall Nominal Diameter: .195 in.
MECHANICAL CHARACTERISTICS :
Operating Temperature Range: -20 degree To +75 degree
Bulk Cable Weight: 29 lbs/1000 ft.
Max. Recommended Pulling Tension: 35 lbs.
Min. Bend Radius (Install): 0.5 in.
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :
APPLICABLE STANDARDS :
NEC/(UL) Specification: CM, UL444
CEC/C(UL) Specification: CM
IEC Specification: 11801 Category 5
TIA/EIA Specification: 568-B.2 Category 5e
Other Specification: NEMA WC-63.1 Category 5e, UL verified to Category 5e
FLAME TEST :
UL Flame Test: UL1685 UL Loading
CSA Flame Test: FT1
PLENUM/NON-PLENUM :
Plenum (Y/N): N
Plenum Number: 1585A

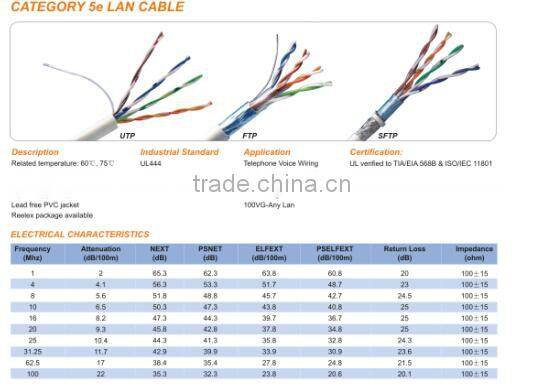

ELECTRICAL CHARACTERISTICS :
Nom. Mutual Capacitance @ 1 KHz: 15 pF/ft
Maximum Capacitance Unbalance (pF/100 m): 330 pF/100 m
Nominal Velocity of Propagation: 70 %
Maximum Delay (ns/100 m): 538 @ 100MHz ns/100 m
Maximum Delay Skew (ns/100m): 45 ns/100 m
Maximum Conductor DC Resistance @ 20 Deg. C: 9.38 Ω/100 m
Maximum DCR Unbalance @ 20 Deg. C: 3 %
Max. Operating Voltage - UL: 300 V RMS
Send Inquiry to This Supplier
