Contact Platform Support
Help CenterRG6U+cat6
US$ 50 - 80
MOQ: 100 Rolls
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Lucktech
Model Number:
LK-BC-003
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sound Deadening and Vibration Damping MaterialUS$ 0.8 - 2MOQ: 1000 Pieces -
DB25 TO DB9 RS232 Cable, Metal Shell,M/F,HIGH QUALITYNegotiableMOQ: 1000 Pieces
-
DB9 RS-232 Y Splitter Cable , 2*male to Female,HIGH QUALITYNegotiableMOQ: 1000 Pieces
-
RS 232 DB9 to 3.5mm Cable , M/M,HIGH QUALITYNegotiableMOQ: 1000 Pieces
-
DB9 RS-232 Serial Extension Cable Metal Shell, M/F,HIGH QUALITYNegotiableMOQ: 1000 Pieces
Place of Origin
China
Brand Name
Lucktech
Model Number
LK-BC-003

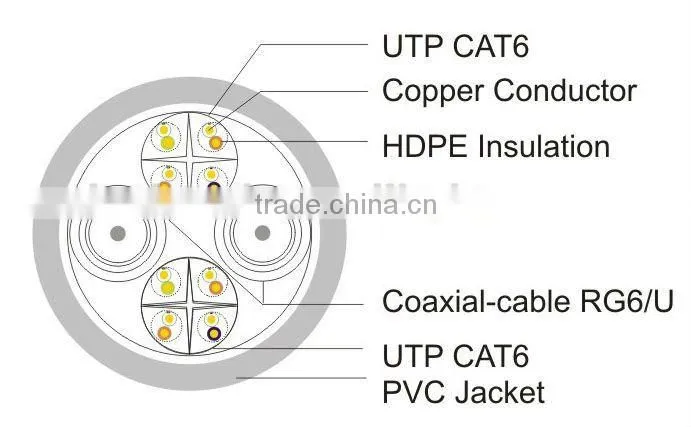

Specifications
RG6U+cat61, RG6/U Coaxial cable +cat6cable
2,18AWG RG6/U coaxial cable
3,23AWG solid BC/PE insulation
4,305m/drum

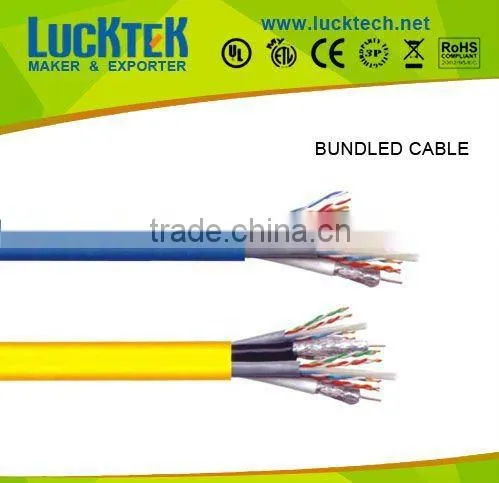

BUNDLED CABLE
Description
RG6/U Coaxial cables
Reference Standard:TIA570
Complies to SCTE ISP-IP-001
18AWG solid bare CCS conductors
Al foil/60% Al braid+AL foil/40%
Al braid shield
Cat.5e
Complies to TIA/EIA-568B
24AWG solid BC/PE insulation
Application
Multi-media Cables for Smart Home
Jacket color
All colors of jacket are available

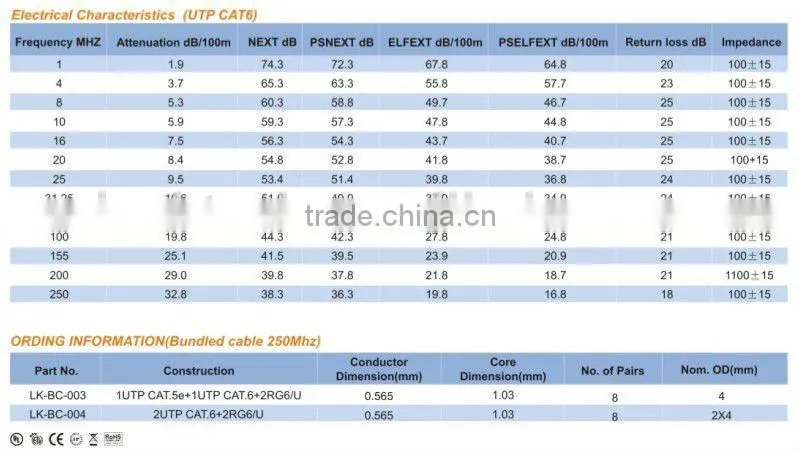

Electrical Characteristics (R/U)
Impedance:75.0+/-5.0 Ohms
1Mhz:0.25dB 700Mhz: 5.06dB
50Mhz:1.41dB 1000Mhz: 6.2dB
100Mhz:1.92dB 1800Mhz: 8.43dB
200Mhz:2.64dB 2200Mhz: 9.35dB
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2007
Factory Size
10,000-30,000 square meters
Total Employees
51 - 100 People
