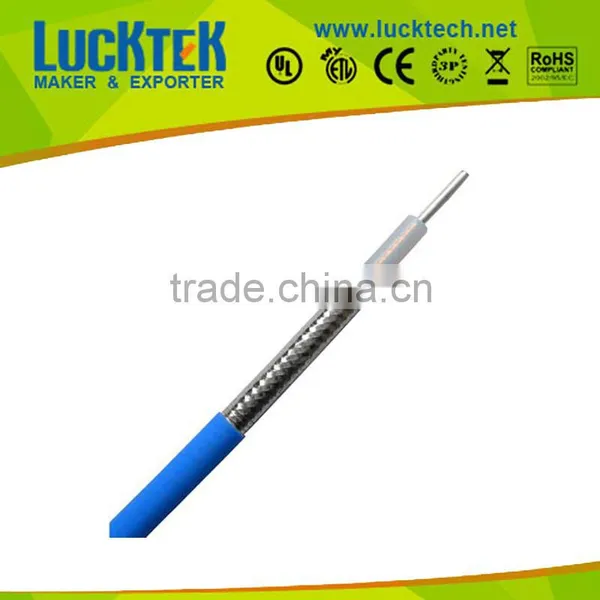

Digital-TV-Aerial-Satellite Semi Flexible rf Coaxial Cable
US$ 0.01 - 0.2
MOQ: 1000000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
SF-141-75-FEP
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Semi Flexible Coax CableUS$ 0.01 - 0.2MOQ: 10000 Meters -
Semi Flexible CableUS$ 0.01 - 0.2MOQ: 10000 Meters
-
High Grade Semi-flexible Coaxial Cable With Low PriceUS$ 0.01 - 0.2MOQ: 1000000 Meters
-
Semi-flexible Coax CableUS$ 0.01 - 0.2MOQ: 10000 Meters
-
Semi-flexible CableUS$ 0.01 - 0.2MOQ: 10000 Meters
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
SF-141-75-FEP
Type
Coaxial
Number of Conductors
1
Digital-TV-Aerial-Satellite semi flexible rf coaxial cable
SF-141-75-FEP
0.141 inch OD (3.58mm)
Construction:
| Item | Material | Diameter (Inch/mm) | |
| Inner Conductor | Silver plated copper | 0.0201+/-0.001 | 0.511+/-0.0254 |
| Dielectric | PTFE | 0.1175+/-0.001 | 2.98+/-0.0254 |
| Outer Conductor | Tin Dipped Copper Braid | 0.141+/-0.002 | 3.58+/-0.0508 |
| Jacket | Blue FEP/LSZH/PVC | 0.161+/-0.005 | 4.10+/-0.1270 |
Electrical & Mechanical Characteristics:
Capacitance: 63.5pF/m
Impedance: 75+/-1Ω
Velocity of Propagation: 70.0%
Max. Operating Frequency: 20.0GHz
Max. Operating Voltage: 1900.0VRMS
Min. Shielding Effectiveness: 100.0dB
Time Delay: 4.7ns/m
Min. Inside Bend Radius: 8.0mm
Operating Temp Range: -55 to +155°C
Attenuation & Average Power (@ 20°C & Sea Level):
Frequency (GHz) | Attenuation (dB/ft. dB/meter) | Average Power (Watts CW) | |
| 0.5 | 0.08 (0.28) | 549.0 | |
| 1.0 | 0.12 (0.40) | 382.2 | |
| 5.0 | 0.29 (0.96) | 160.6 | |
| 10.0 | 0.44 (1.45) | 108.6 | |
| 20.0 | 0.67 (2.20) | 72.4 | |
Certification:
