Semi Rigid Coax Cable
Negotiable
MOQ: 100 Rolls (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
LK-HSF
Type:
Coaxial
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Model Number
LK-HSF
Type
Coaxial
Number of Conductors
1
Specifications
semi rigid Coaxial Cable1 soon time delivery
2.good quality, competitive price
3.CE RoHs certification

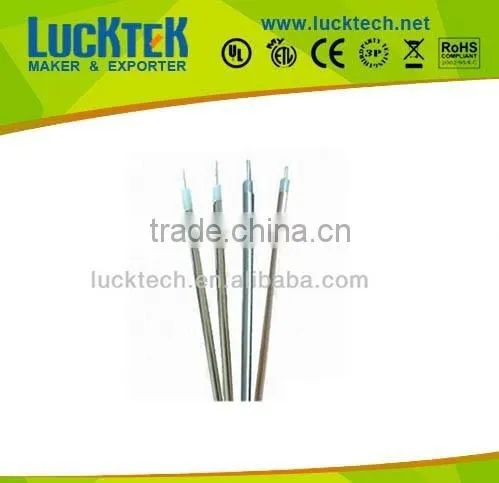

Semi-Rigid Coax Cable
SR-141C-35
0.141 inch OD (3.58mm)
Construction:
| Item | Material | Diameter (Inch/mm) | |
| Inner Conductor | Silver plated copper |
0.0508+/-0.001 | 1.29+/-0.0254 |
| Dielectric | PTFE | 0.117+/-0.001 | 2.97+/-0.0254 |
| Outer Conductor | Seamless Copper Tube | 0.141+/-0.001 | 3.58+/-0.0254 |
Electrical & Mechanical Characteristics:
Capacitance: 136.0pF/m
Impedance: 35+/-1Ω
Velocity of Propagation: 70.0%
Corona Extinction voltage: 1500.0VRMS@60Hz
Voltage Withstand: 3000.0VRMS@60Hz
Max. Operating Frequency: 20.0GHz
Min. Inside Bend Radius: 12.5mm
Outer Conductor Integrity Temp: 175.0°C
Operating Temp Range: -55 to +125°C
Attenuation & Average Power (@ 20°C & Sea Level):
|
Frequency (GHz) |
Attenuation (dB/ft. dB/meter) |
Average Power (Watts CW) |
|
| 0.5 | 0.09 (0.28) | 552.4 | |
| 1.0 | 0.12 (0.41) | 384.6 | |
| 5.0 | 0.30 (0.99) | 161.5 | |
| 10.0 | 0.45 (1.48) | 109.2 | |
| 20.0 | 0.69 (2.25) | 72.7 |
|
