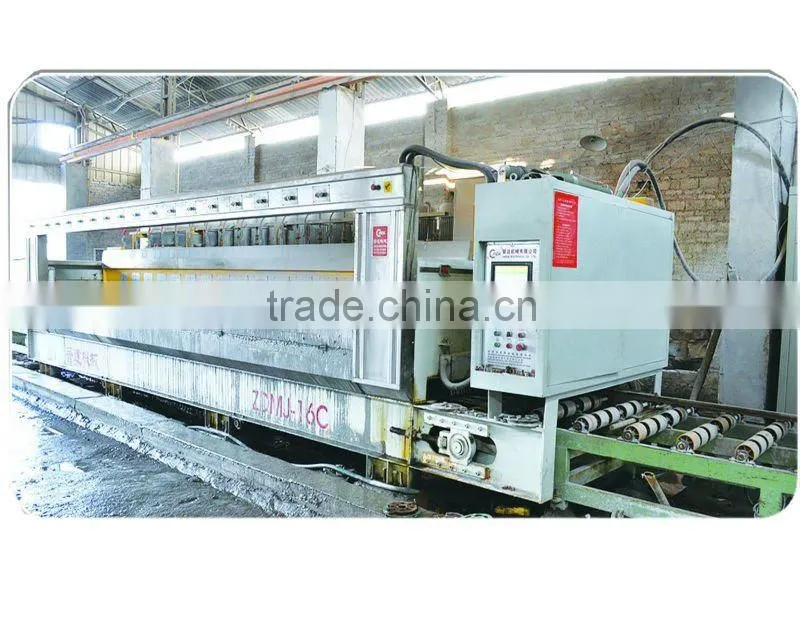

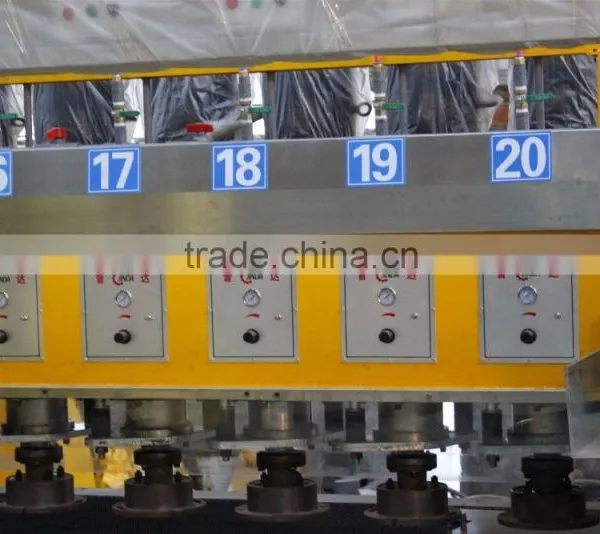

Help CenterAuto 12 Heads Marble Polisher Machine
Related Products
-
Auto Polisher Machine for Slab TilesUS$ 1 - 50,000MOQ: 1 Set -
Multi-heads Natural Granite Slab Line PolishingUS$ 56,600 - 56,600MOQ: 1 Set
-
Large Stone Grinding Machine ForpolishingUS$ 1 - 21,167MOQ: 1 Set
-
Hot Grinding Machine/marble Polisher MachineUS$ 1 - 21,167MOQ: 1 Set
-
Multi Heads Automatic Polishing Machine for Marble StoneUS$ 1 - 50,000MOQ: 1 Set
machine for grinder
machine for grinder

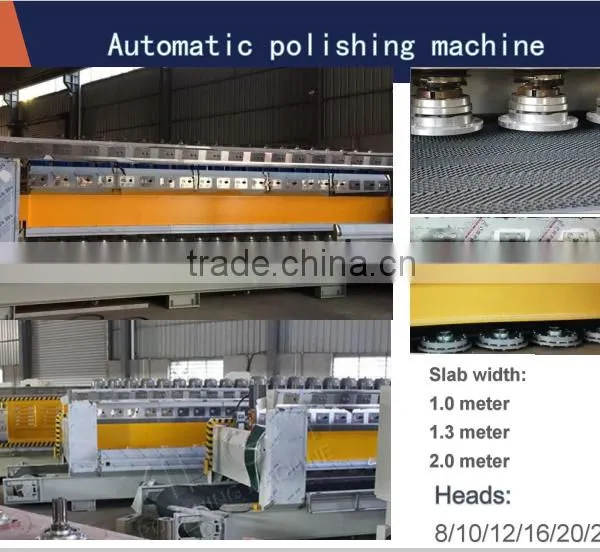

The equipment uses resin polishing disc, which it is light low consumed power and high polishing efficiency. Its power consumption is only 1/3 compare with traditional continuous polisher. Controlling system adopts PLC terminal control for convenience of setting parameters through LCD touch screen. The elevation of polishing head and the pressure of grinding polishing is controlled by air pressure, which it can be adjusted within set point.
The machine equips with variable frequency adjustable speed system to adjust the speed of lateral grinding and transmitting slab. And the speed also can be adjusted within set value. For the grinding head is intelligent to calculate the shape of slab to continue polishing. So it's low cost and high production efficiency, a set of this device equals several manual or semi-automatic bridge polishers and only requires 1-2 operators.
| Product type | ZDMJ16C/0.9 | ZDMJ16C/1.2 |
| Number of grinding head | 16 | 16 |
| Power of main motor | 7.5kw | 7.5kw |
| Total power | 130kw | 130kw |
| Grinding head diameter | 200 | 200 |
| Grinding plate width | 900mm | 1200mm |
| Grinding plate depth | 10-50mm | 10-50mm |
| Beams swing speed | 3-35m/min | 3-35m/min |
| Speed into the boards | 1-3m/min | 1-3m/min |
| Cooling water pressure | 0.1-0.15Mpa | 0.1-0.15Mpa |
| Water consumption | 20m3/h | 20m3/h |
| Air supply pressure | 0.8Mpa | 0.8Mpa |
| Weight | 13000kg | 15000kg |
| Dimension(L×W×H) | 9200*2700*2300(mm) | 9200*2700*2300(mm) |
Our company is very professional manufacturer of stone cutting machine machine and stone polishing machine.

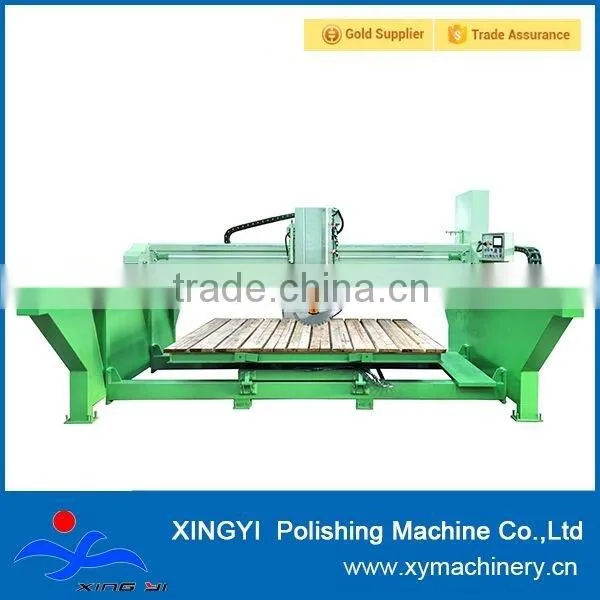

Our products include granite polishing machine,marble polishing machine,bridge type stone cutting machine,
block cutting machine,diamond wire saw cutting machine,and some main parts like blade,wheel,wire saw and so on.
This machine is shipped by 40GP container. And the delivery time is within 2 weeks after we receive your payments, because we usually have in stock.
1.Warranty(Non artificial damage): 6 months for spare parts;12 months for main parts.
2.If you require, we will send installation person for you to help install the machine and teach you how to operate.
3.Special customized design is available.
If you want to know more details, please click the picture for more information.
Please contact us if you have any further questions. We are always at your ser-vice.
