PE disposable film machine for seat cover
- 10000 Set / Sets per Month
- Shanghai
- T/T
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Film | Plastic Processed: | PE |
Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Jiangsu, China |
Brand Name: | YX | Model Number: | TBSY-900 | Voltage: | 380v |
Power(W): | 40kw | Dimension(L*W*H): | 3500x5000x6000 | Weight: | 3500kg |
Certification: | with | Warranty: | one year | After-sales Service Provided: | Overseas service center available |
Product Description
a.our machinery professional for any kind of industrial useful:
Including : industrial packing , medical ,food packing ,agriculture and soon
b.including : thicker bag ,double color , roll bag ,sheet roller and so on
c.material : HDPE , LDPE ,LLDPE , BIO/BIX type , recycle material
d.this machine working size :900mm
Product Description

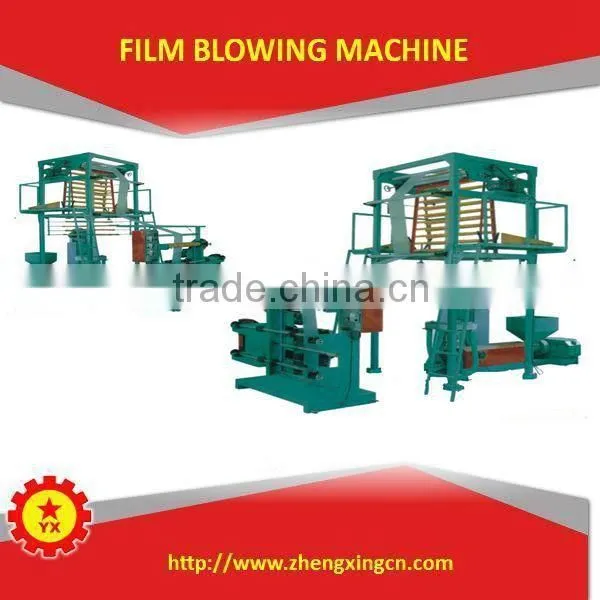

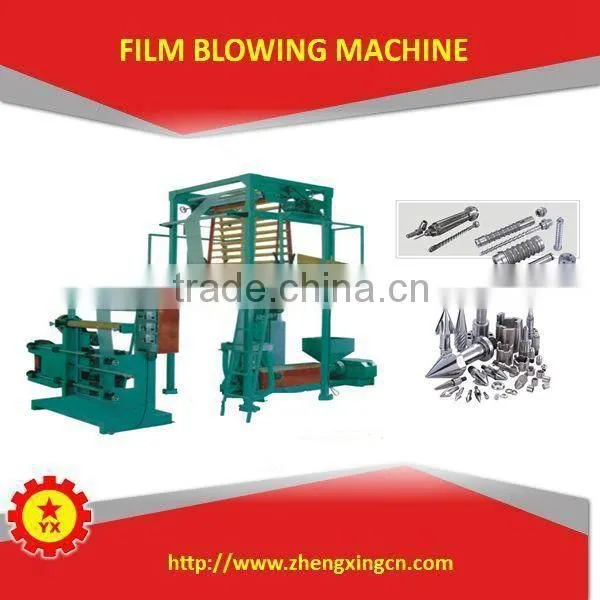

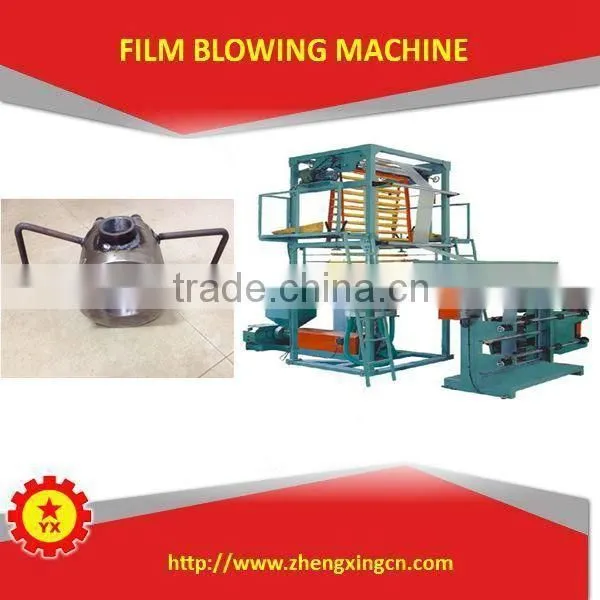

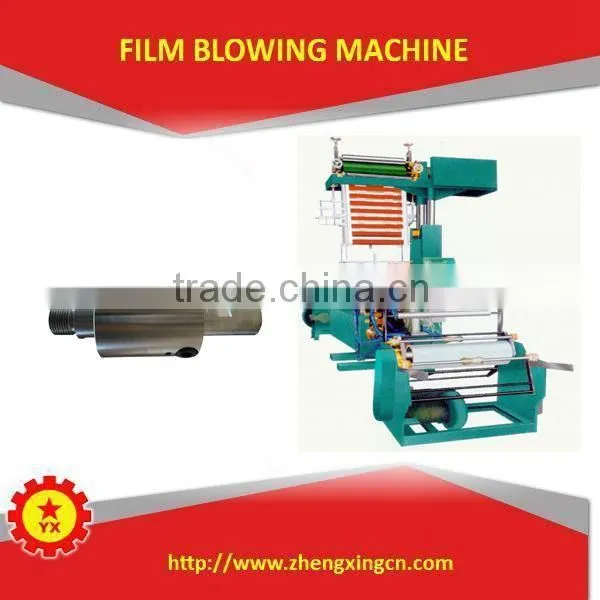

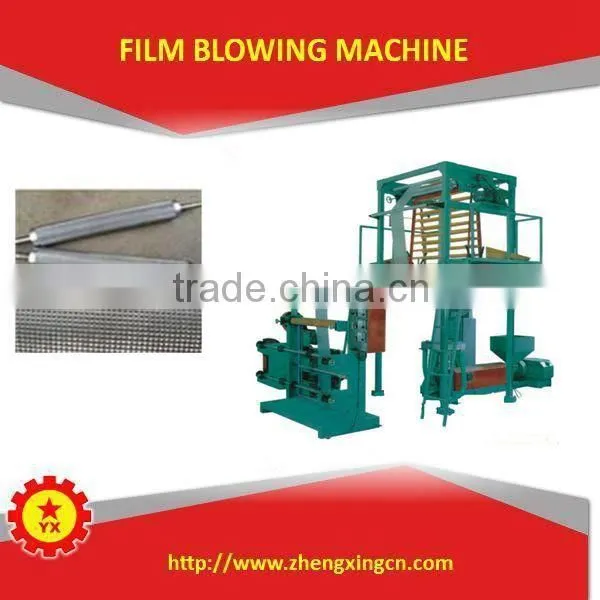

STEP ONE.FILM MACHINE DESCRIPTION
Model | TBSY-900 |
Screw diameter | 55mm |
L/D | 28:1 |
Barrel & Screw | 38CrMoAl,hardening and tempering,deal with Nitride |
Temp control | Digital meter |
Die head | 45 steel forge piece ,two sets |
Blower | 1 set |
Cooling | Cooling fan |
Gear box | High strength hard teeth retarder with high lubrication |
Extruder motor | 11KW |
Film width | 300-850mm |
Single-face Thickness | LDPE:0.01-0.020mm,HDPE:0.08-0.05mm |
Output | 15-60kg/h |
Speed control | Inverter |
Rewind control | Torque motor |
Total Power | 25Kw |
Weight | 4500kg |
Dimension (L×W×H)mm | 4800x2800x4300 |
Option parts
NO | PART | OPTION (if you need please “V”) | OPTION (if you need please “V”) | ||
1 | Extruder motor | China top brand |
| foreign brand |
|
2 | Inverter | China top brand |
| foreign brand |
|
3 | Heating meter | China top brand |
| foreign brand |
|
4 | Contactor | China top brand |
| foreign brand |
|
5 | Air cylinder | China top brand |
| foreign brand |
|
6 | Mold center | HDPE |
| LDPE |
|
7 | Blow ring | One layer |
| rotary double layer |
|
8 | Filter change | Manual |
| auto change |
|
9 | Take up unit | need |
| No need |
|
10 | Take up unit | Manual |
| air cylinder |
|
11 | Embossing roller | need |
| No need |
|
12 | Rewind | One roller |
| Two roller |
|
13 | Rewind cylinder | Steel |
| Air cylinder type |
|
14 | Gusset unit | Need |
| No need |
STEP TWO :PRITNING MACHINE FOR SEAT COVER MACHINERY DESCRIPTION
MACHINERY STRUCTURE
No | Part | Description | Remark | |
UNWIND UNIT | ||||
1 | Unwind roller | Pneumatic roller |
| |
2 | Unwind diameter | 600mm |
| |
3 | Unwind tension | Tension auto control |
| |
4 | Unwind edge control | EPC system |
| |
PRINT UNIT | ||||
5 | Print type | Flexo |
| |
6 | Print ink | Water type |
| |
7 | Ink mix unit | Including |
| |
8 | Ink dryer | Heating |
| |
9 | Print steel roller size | 150-500mm |
| |
REWIND | ||||
10 | Rewind roller | Pneumatic roller |
| |
11 | Rewind type | Double roller |
| |
12 | Count meter | Count the running length |
| |
13 | Tension | Auto tension control |
| |
14 | Rewind diameter | 600mm |
|
MACHINERY ELECTRIC KEY PARTS BRAND
NO | NAME | BRAND |
1 | TEMP METER | JAPAN |
2 | INVERTER | TAIWAN |
3 | CONTACTOR | JAPAN |
STEP THREE :SEALING MACHINE FOR SEAT COVER MACHINERY DESCRIPTION
TBE-1500 COVER CAR SEAT AUTOMATIC MACHINE TECHNICAL PARAMETER :
A | Model | TBE-1500 |
1 | Max length of bag | 250-2000mm |
2 | Max width of bag | 1500mm(sleeve unit 1600mm) |
3 | Thickness of film | 0.01-0.05mm(HDPE , LDPE , LLDPE ) |
4 | Speed of line | 30-90pcs/min |
5 | Power | 17kw |
6 | Weight | 7000kg |
7 | Machinery Size (main part) | 7000x2000x2050mm |
8 | Rewind unit size | 2000x1300x2000mm |
MACHINERY STRUCTURE
NO | FEATURES |
1 | With pneumatic disc brake , electronically controlled by local cell and promortional valve,eith pneumatic expansion shaft |
2 | Automatic web guiding device for roll alignment with photocell especially suitable for transparent films |
3 | Touch screen |
4 | Possibility to work in manual,semiautomatic and automatic modes |
5 | Fully programmable: welding time , press force ,breaks and delays |
6 | Auto counting system based on converters |
7 | Working on clean and printed foils |
8 | Film sleeve,half-sleeve |
9 | Security systems information about lack of the foil |
10 | Security systems informing about lack of the power supply |
11 | Electrostatic charges removal system |
12 | Safety switches on detachable panels |
13 | Epc control material running |
14 | Heating with electric temperature controlled |
15 | Photocell tracks the printing material |
16 | Servo motor |
MACHINERY ELECTRIC KEY PARTS BRAND
NO | NAME | BRAND |
1 | PLC | JAPAN |
2 | TEMP METER | JAPAN |
3 | INVERTER | TAIWAN |
4 | CONTACTOR | JAPAN |
Our Services
NO | NAME |
1 | Supply printed film (up to requested ) |
2 | Printing machine possible flexo or rotogravure type |
3 | Color print possible one side or both sides |
4 | Supply installation ,training |
5 | Supply guarantee |
6 | Supply any difference power type electric parts |
7 | Supply CE certificate |
LINE A
