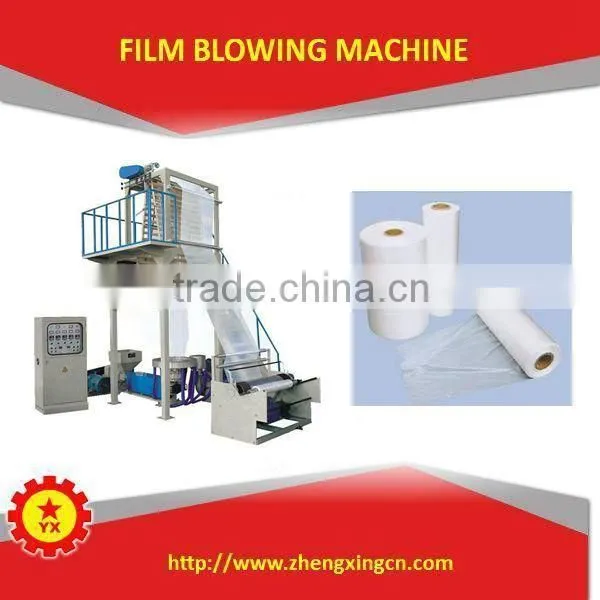

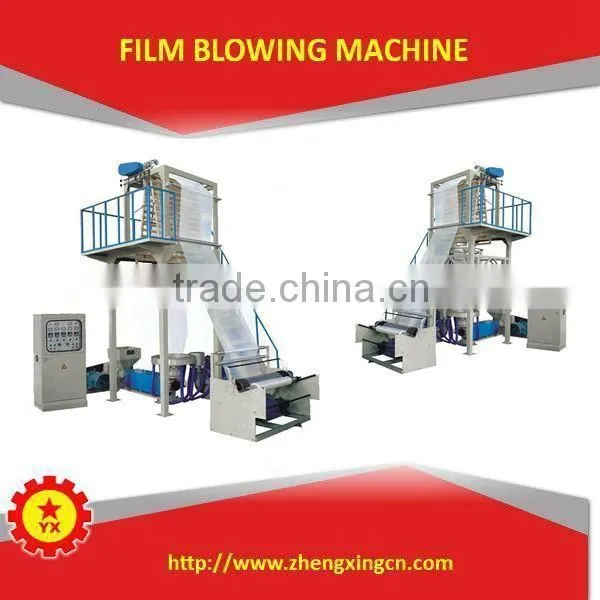

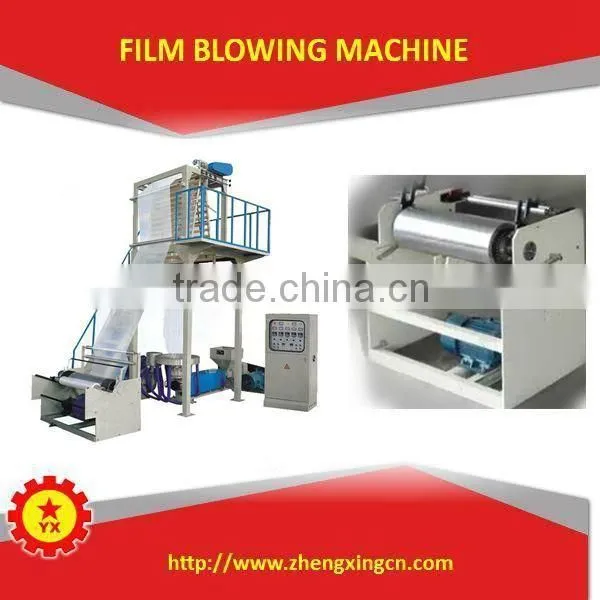

roll vest bag production line machine film and bag making machine

Model

TB-B75

TB-B100

Screw diameter

75mm

100mm

L/D

28:1/30:1

28:1/30:1

Barrel & Screw

38CrMoAl,hardening and tempering,deal with Nitride

Temp control

Digital meter

Die head

45 steel forge piece ,two sets

Blower

1 set

Cooling

Cooling fan

Gear box

High strength hard teeth retarder with high obturation

Extruder motor

30-37kw

40-55kw

Film width

70-1500mm

1200-2000mm

Single-face Thickness

LDPE:0.015-0.020mm,HDPE:0.08-0.05mm

Output

70-80kg/h

90-100kg/h

Speed control

Inverter

Rewind control

Torque motor

Total Power

50kw

70kw

Weight

4200kg

45500kg

Dimension (L×W×H)mm

6000x3000x7500mm

7100x350x9000mm

I

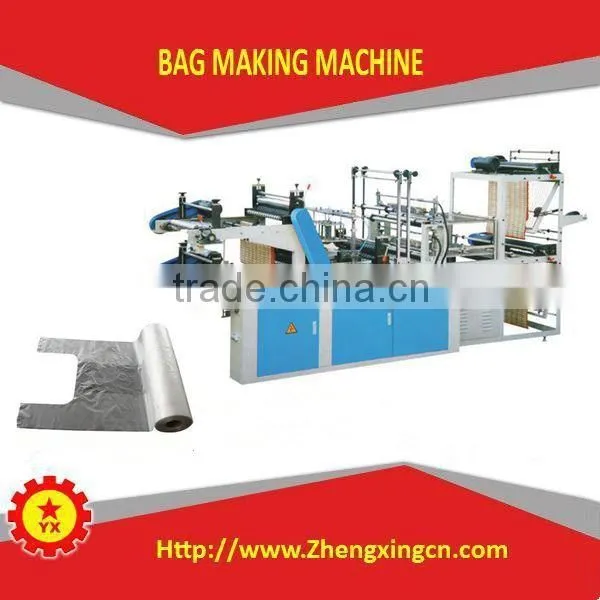

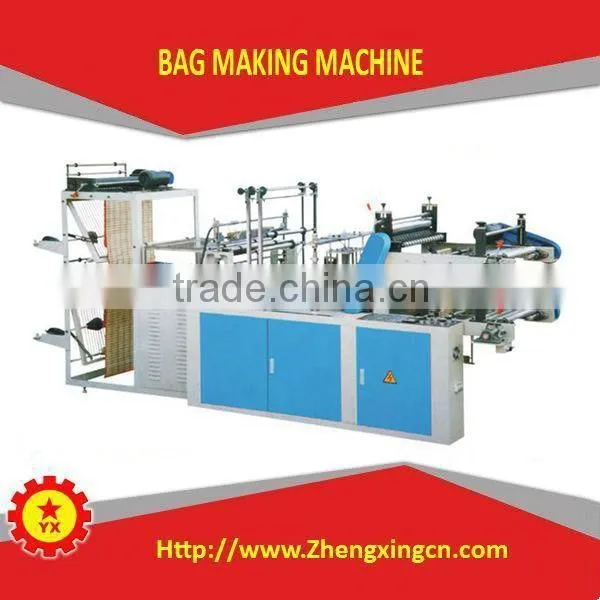

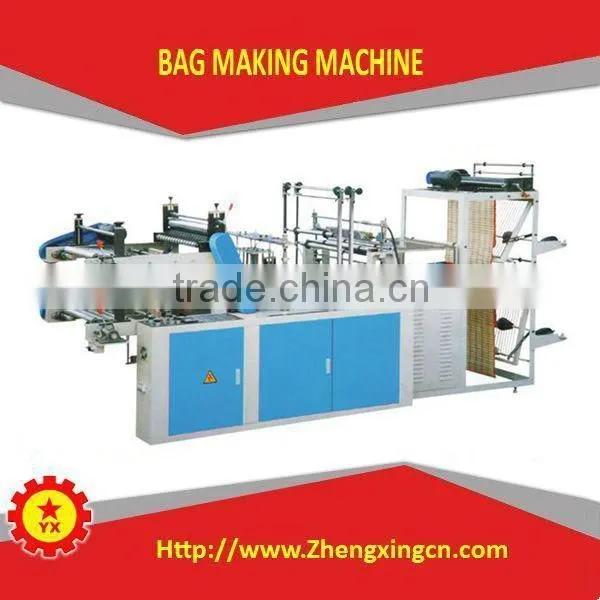

Model

TBE-500

1

Max length of bag

20-1800mm

2

Max width of bag

50-450mm

3

Thickness of film

0.008-0.15mm

4

Speed of line

30-120 pcs/min one line

5

Power

6kw

6

Main motor

Controlled by inverter

7

Weight

1700kg

8

Machinery Size

3850x1300x1800mm

II

UNWIND

9

Unwind line

two line

10

Driver Motor

DC

III

SEALING AND CUTTING

11

Sealing line

one line

12

Take up motor

Setup motor

13

Knife

One

14

Computer and operate board ,driver

Each one set

15

Punching type

Hydraulic

16

Punching mold

One unit

NO

PART

OPTION (if you need please “V”)

OPTION    (if you need please “V”)

1

Extruder motor

China top brand

foreign brand

2

Inverter

China top brand

foreign brand

3

Heating meter

China top brand

foreign brand

4

Contactor

China top brand

foreign brand

5

Air cylinder

China top brand

foreign brand

6

Mold center

HDPE

LDPE

7

Blow ring

One layer

rotary double layer

8

Filter change

Manual

auto change

9

Take up unit

need

No need

10

Take up unit

Manual

air cylinder

11

Embossing roller

need

No need

12

Rewind

One roller

Two roller

13

Rewind cylinder

Steel

Air cylinder type

14

Gusset unit

Need

No need
