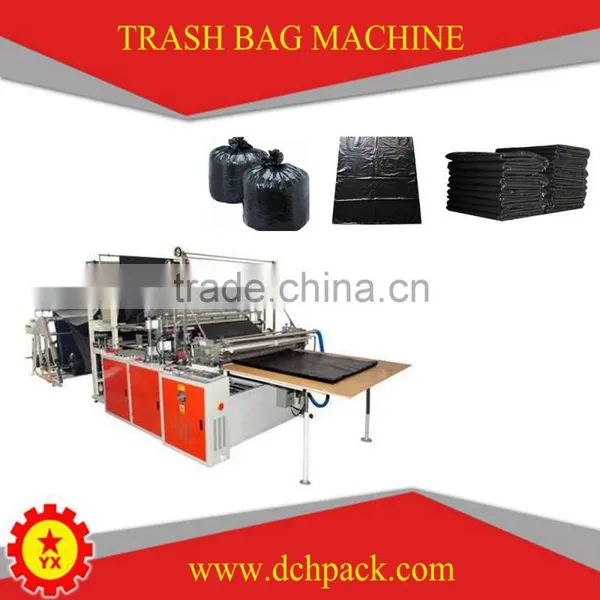

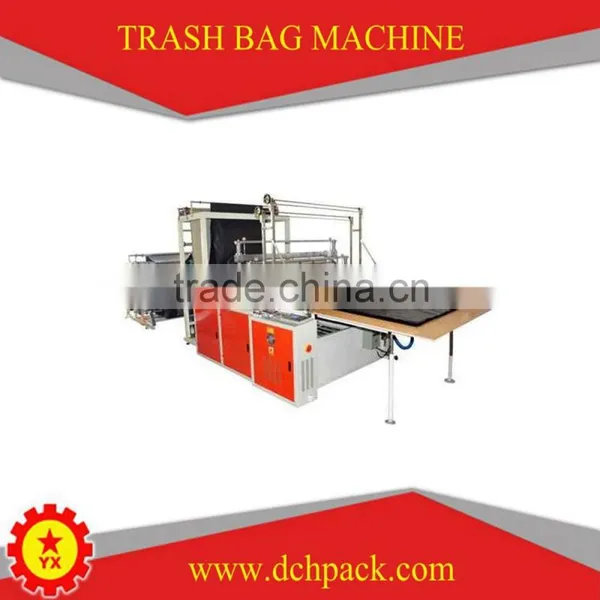

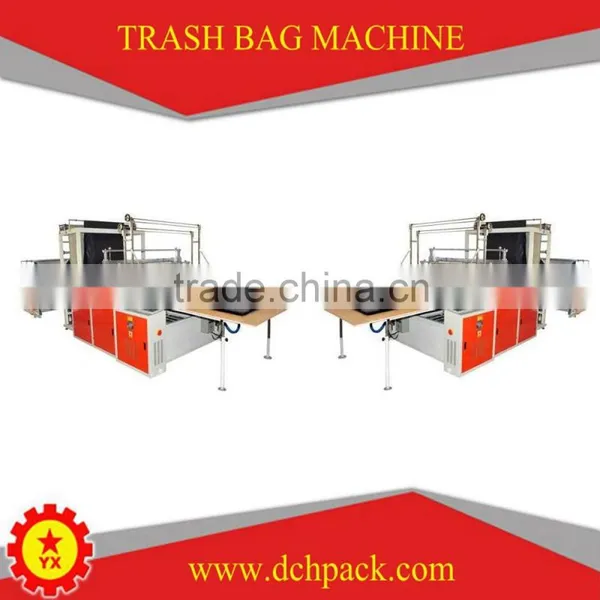

Economical Good Running Plastic Trash Bag Machine
1.Properties and Uses
It is the best equipment for producing t-shirt / vest bag , flat bags such as plastic trash bag, table cover and so on.
This equipment is an automatic computer control bag making machine introducing foreign advanced technology , combined with the domestic-like product design of light set, mechanical, electrical and instrument in one unit.
Mainly applied to making the bags of PE, PP, PVC, and other hot-melt material film.
Photoelectric control automatic discharge, color printing bags photoelectric tracking color, duplex discharge, duplex sealing, stepper motor control speed and bag length, the computer automatically count.
2.Machine Advantages
- Servo motor system.
- High speed up to 150 strokes/min.
- Double layer can improve the capacity
- Micro processor based controller with digital display
- Key pad settings for speed, size & count on key board
- Photocell for printed roll
- Tension free web for Strong sealing
- Also available with Double Decker option. (400 bags/min)
- Also available with Stepper System.
3.Technical Parameters
Model |
TBE-1000 |
TBE-1200 |
TBE-1400 |
Bag width |
100-1000mm |
100-1200mm |
100-1400mm |
Bag length |
50-1800mm |
50-1800mm |
50-1800mm |
Speed bag |
20-140 pcs/min x 2 |
||
Bag thickness |
0.008-0.20mm |
||
Bag variety |
Color bags,white bags |
||
Bag form |
Single seal single cut, double sealed single cut |
||
Total power |
8kw |
9kw |
10kw |
Dimensions(mm) |
4000 x1500 x1900 |
4000 x1700 x1900 |
4000 x1900 x1900 |
4.Manufacturing Process
5.Key Part Famous Brand
6. Certificate
7.Container & Loading
8.Machine Details
9.Business Card
10.FAQ
